The Bill Validator consists of the Bill Validator itself and the Cassette. There are Cassettes of
different capacities: for 170, 400, 600 and 1000 banknotes.
There are two LED indicators on the front panel of the Bill Validator. The first indicator is green
and triangular, the second indicator is red and rectangular. When the Bill Validator is in stand-
by mode and ready to accept a banknote, the green triangular indicator is ON. The red
rectangular indicator is ON if the Bill Validator can not accept a banknote for some reason (the
previous banknote is still being processed, or the acceptance is prohibited by the external
equipment, or the Cassette is full, or in case of any malfunction).

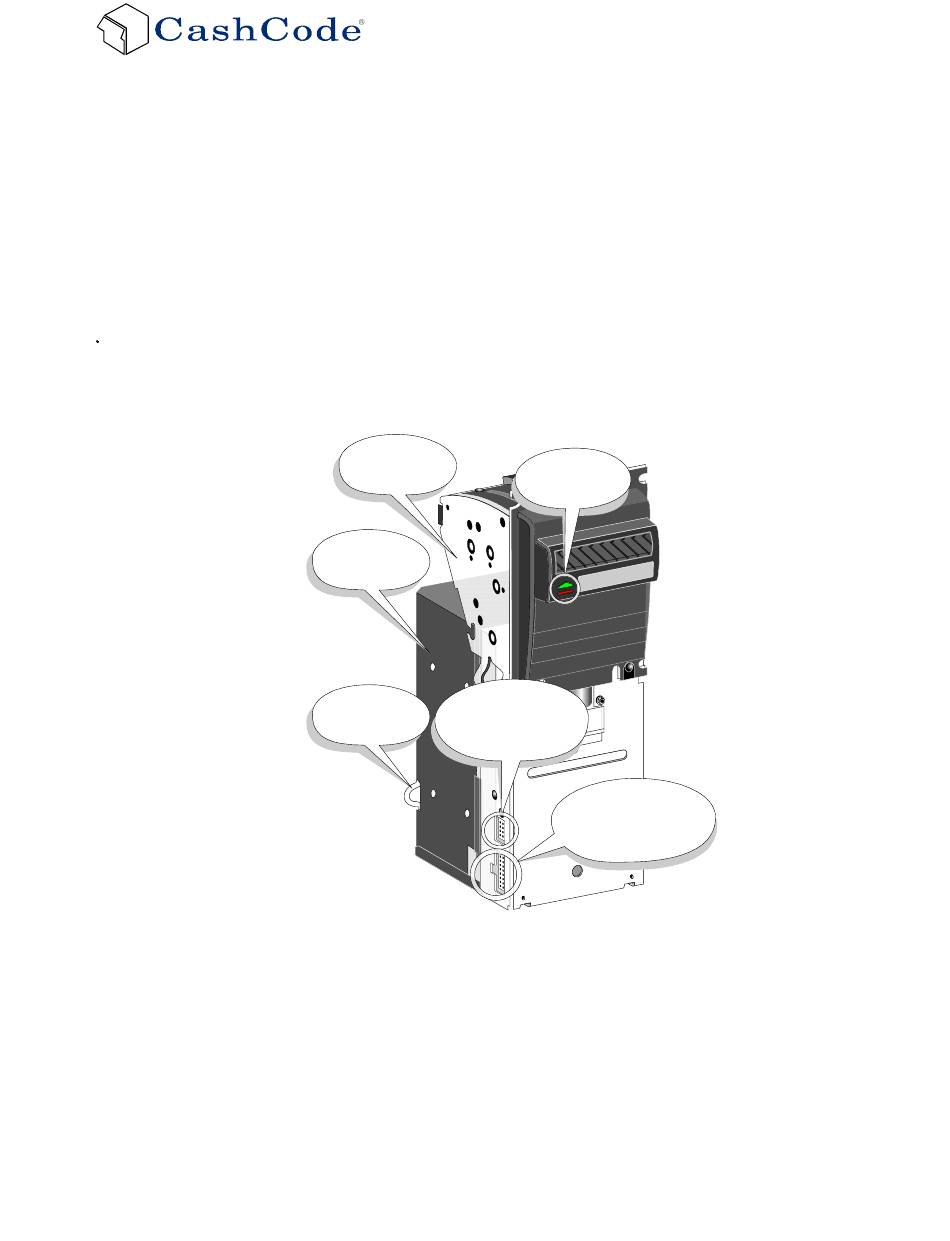

There are connectors on the side of the Bill Validator to connect it to the external equipment.
B i l l A c c e p t o r F a c e L E D ' s
C o n n e c t o r P u l s e I n t e r f a c e B o x C a t c h P o w e r & I s o l a t e d R e m o v a b l e B o x C o n n e c t o r ® C a s h C o d e I n t e r f a c e
©1998-1999 CashCode Company Inc
PT# MAN-ST07 Rev.B2 11/99

2. Main Parts

B ill
A cce pto r
R em ovable
B ox
P ow er & Iso la ted
B ox C atch
P ulse Inte rface
C on nector
F ace LE D 's
C a sh C od e In te rfa ce ®
C o n n e cto r
