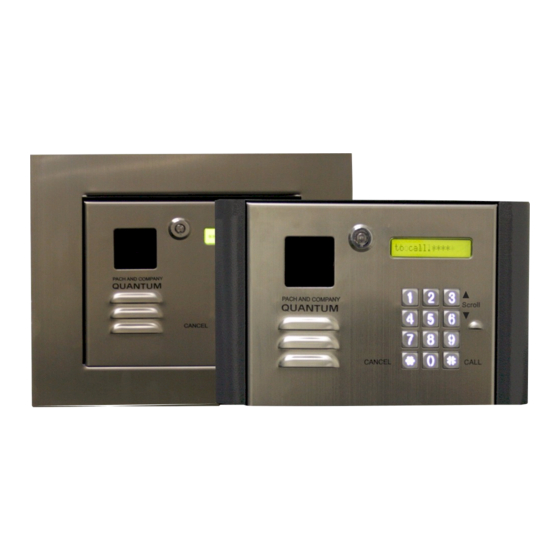

Quantum QC Series Quick Manual

Exit program, cancel call

Save program

00 Change master code (0000 is
default)
01 Add new forwarding tenant's
directory
02 Edit existing tenant's directory
03 Delete existing tenant's
directory
04 Clear all forwarding tenant's
directory
05 Enable/Disable Call
06

New access code

07

Delete access code

08

Clear all access code

09 Access code digit (4-8 digit).
Default is 4-digit
10

Add new card

11

Delete card

12

Clear all card

13 Set time
14 Set date
15 Initializing event recording
16 AUS= auto unlock schedule
(0-9 schedule)
17 TMZ= time zone. 20 TMZ, 00-
20.
18 HLD= holiday zone. 20 HLD,
1-20
19 Directory digit (2-4 digit).
Default is 2-digit
20 AUXIN1
0= disable (default)
1= enable control by relay 1
open interval
2= relay 1 control by AUXIN1
21 AUXIN2
0= disable (default)
1= enable control by relay 2
open interval
2= relay 2 control by AUXIN2
22 Do not disturb
0= disable (default), 1= enable
OPERATION
Two ways call from the system
1. Press to scroll name from A-Z or
then press to call name selected.
2. Press wait for dial tone then press the directory number
23 Lock-out Count
24 Alarm
0= disable
1= local beep for 60
seconds
2= disable system for 60
seconds with no beep
3= call directory (0-9)
25 Keypad beep
0= disable (default)
1=enable
26 Door beep
0= disable
1= enable (default)
27 Talk time (060-240
second). Default=60
second
28 Unlock relay1 time
(12-99 second). Default=
12 second
29 Unlock relay2 time
(12-99 second). Default=
12 second
33 Temporary code
34 Special code
35 Temporary card
36 Special card
38 System acknowledge
(0-9). Default= 3
39 Remote access
0= disable
1=enable (default)
40 DTMF relay 1 (0-9).
Default=9
41 DTMF relay 2 (0-9).
Default=8
42 Relay 2 Mode
1= door control (default)
2= relay 2 trigger
simultaneously as relay 1
3= enable if function code
24 is enable
4= turn relay 2 on and off
On=7, Off=6
43 DND: do not disturb time
zone (0-9)
44 Disable Time zone relay
1, 2 or both
45 Relay 1 and 2 unlock
timer
46 Firmware version
48 PBX enable. Default=
disable
49 Edit Access code
50 Erase the memory to
factory default
51 Welcome screen
to scroll name from Z-A
 Missing Parts, contact Pach and Company 1-888-678-7224
 Defective system under manufacturer warranty,
call 1-888-678-7224 for advance replacement

24 Months warranty for complete system

6 Months warranty for Printed Circuit Board

Manuals are available online at www.pach-co.com
Log on to programming: Press
and
the welcome message will stop
scrolling (repeat if screen still scrolls)
enter 4-digit
is default), the screen will show:
Select the
table
OPERATION
Opening the door remotely press
Opening the door with the access code
screen will stop scrolling) then press a valid 4-digit access code.
Extending talk time tenant must press
the time out warning beep.
Calling into the system:
1. Enable function code 39 and function code 38 must be set 1-9
2. Call the system phone number, hear one beep if the system
answering the call.
3. Press then 4-digit master code, hear one short beep
4. Press to establish two way communication
5. Press or to release the door.
QC1IP and QC2IP DEFAULT IP
IP: 192.168.1.230
SUBNET: 255.255.255.0
GATEWAY: 192.168.1.1
DNS: 192.168.1.1
USERNAME: Administrator
PASSWORD: 8888
WARNING:
DO NOT USE ON BOARD
12VDC and GND TO POWER A DOOR
STRIKE OR MAGNETIC LOCK
SEPARATE POWER MUST BE USED TO
POWER A DOOR STRIKE OR MAGNETIC
LOCK.
simultaneously then release,
"MASTER CODE" (0000
"Function Code" from the
(relay 1) or (relay 2)
press (display
from the phone after
