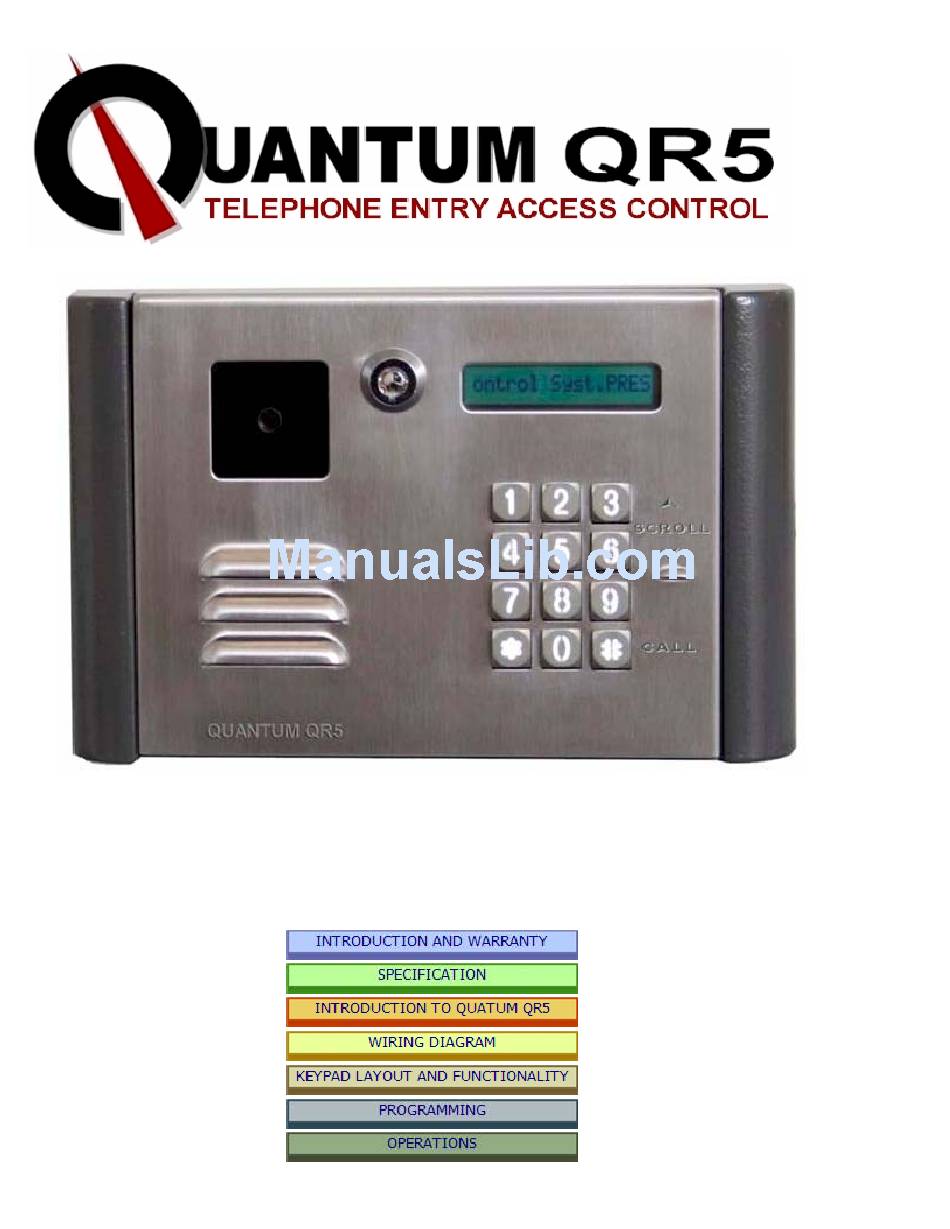

  • Page 1 INSTALLATION AND PROGRAMMING MAN INSTALLATION AND PROGRAMMING MANUAL Rev. 1.09 file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...

  • Page 2: Introduction And Warranty

    INSTALLATION AND PROGRAMMING MAN INTRODUCTION AND WARRANTY Pach & Co. thanks and congratulates you on the purchase of your Quantum QR5. The Quantum QR5 is a residential and multi tenants telephone entry system. The manual is designed to guide you through the detail in programming and use of the Quantum QR5.
  • Page 3 Automatic call forwarding Automatic card enrollment Access code and card block programming Two Auxiliary inputs Two Door Sensors 600 event buffer (only available with TCP/IP Internet Explorer Browser programming) Lighted keypad INTRODUCTION TO QUANTUM QR5 Front View file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...

  • Page 4: Wiring Diagram

    INSTALLATION AND PROGRAMMING MAN Back View WIRING DIAGRAM Click on the label for more detail diagram file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 5 Input Power:12-18 VAC/DC, 12VAC transformer is supplied Type of wires 2-conductors 18 gauge stranded Battery Backup: 12VDC 4Ahr Type of wires 2-conductors 18 gauge stranded Camera Power: 12 VDC on Board Power. Check the camera specification. Type of wires 2-conductors 20 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...

  • Page 6: Door Wiring Diagram

    INSTALLATION AND PROGRAMMING MAN DOOR WIRING DIAGRAM Two independent on board relay are available on the Quatum QR5, means you can control two different doors independently. Each relay supports NO (normally open) and NC (Normally Closed) contact. No power is supplied by the relays therefore you MUST supply separate power for door strike.
  • Page 7 INSTALLATION AND PROGRAMMING MAN TELEPHONE WIRING DIAGRAM Using an existing telephone line. Wiring requirements: 18 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 8 INSTALLATION AND PROGRAMMING MAN Using a DSL line. Wiring requirements: 18 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 9 INSTALLATION AND PROGRAMMING MAN Using a Dedicated Phone Line Wiring requirements: 18 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 10 INSTALLATION AND PROGRAMMING MAN As an Intercom Wiring requirements: 18 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...

  • Page 11: Wiring Requirements

    INSTALLATION AND PROGRAMMING MAN AUXILIARY INPUT, DOOR SENSOR, RS-485 AND WIEGAND DIAGRAM Wiring requirements: See manufacturers specification RS-485 requires 2-conductors category 5 or 2-conductors 18 gauge stranded file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 12 INSTALLATION AND PROGRAMMING MAN The Quantum QR5 has built-in 26 bit Wiegand card reader, however if you need to use different card reader, you may do so by disconnecting the existing card reader and replace with your own 26-bit wiegand card reader as shown on the diagram.

  • Page 13: Speaker And Microphone

    Speaker = 8.7 ohm Microphone = 1.542 kOhm RADIO RECEIVER The Quantum QR5 has built-in Radio Frequency (RF) Receiver. The transmitter is not included. POWER SWITCH The power switch must be in the OFF (left position) during the installation to avoid any damages to the board.

  • Page 14: Earth Ground

    Wiring requirement: 16-18 gauge wire. Connect the earth ground wire into one of the door hinge stud. KEYPAD LAYOUT AND FUNCTIONALITY The Quantum QR5 has built-in lighted keypad but no alphabetical lettering. Use the template below for reference. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 15 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/Quantum%20QR5.htm[5/6/2010 3:12:40 PM]...
  • Page 16 30. Enable or Disable Call 13 Set time 50 Erase memory to default Forwarding 14 Set date 31 Call forwarding time 51 Edit welcome screen 32 Automatic Call forwarding 15 Initializing event buffer directory Log-on to programming mode file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 17 In case the master code is not available, refer to Master code retrieval button, then click wiring diagram link. 00 Change master code It is recommended to replace the default password (0000) for security purposes. The master code must be 4-digit. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 18 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 19 32 Select call forwarding directory. The call forwarding will not work if the system is installed as an intercom, refer to the wiring diagram. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 20 INSTALLATION AND PROGRAMMING MAN 02 Edit existing directory In case of making mistake on Function Code 01, then use this function code to make changes. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 21 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 22 INSTALLATION AND PROGRAMMING MAN 03 Delete a directory file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 23 INSTALLATION AND PROGRAMMING MAN 04 Delete all directories file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 24 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 25 09, set in 4, 5, 6, 7 and 8 digit, see default setting is 4-digit. For example, If 8 function code 09, then you MUST program 8-digit digit access code has been selected on code for everyone. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 26 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 27 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 28 INSTALLATION AND PROGRAMMING MAN 07 Delete access code file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 29: Delete All Access Codes

    INSTALLATION AND PROGRAMMING MAN 08 Delete all access codes file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 30 INSTALLATION AND PROGRAMMING MAN 09 Access code digit file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 31 The access code can be set to 4 (default setting), 5, 6, 7 or 8 digit thru the programming, once the number of digit has been set, then all the access codes must have same number of digit. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 32 INSTALLATION AND PROGRAMMING MAN 10 New card or transmitter enrollment The Quantum QR5 has built-in 26 bit Wiegand Card Reader and Radio Receiver. A maximum of 100 combination of cards and transmitters can be programmed. Note: 26 bit wiegand access card, fob and transmitter are optional and they are proprietary to Pach and Company.
  • Page 33 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 34 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 35 INSTALLATION AND PROGRAMMING MAN 11 Delete card or transmitter file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 36 INSTALLATION AND PROGRAMMING MAN 12 Delete all cards and transmitters file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 37 INSTALLATION AND PROGRAMMING MAN 13 Set time file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 38 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 39 INSTALLATION AND PROGRAMMING MAN 14 Set date file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 40 INSTALLATION AND PROGRAMMING MAN 15 Initializing event buffer The quantum QR5 has event recording tracking capability. You must use Internet Explorer browser and optional TCP/IP box to use this feature. The event buffer must be initialized in case of corruption or to start from fresh.
  • Page 41 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 42 For example: Schedule: 0, Open time: 0600, Close time: programmed in the system. 1800, Day: 0 1 2 meaning the door will be opened at 06:00 AM and closed at 06:00 PM on Sunday, Monday and Tuesday. This schedule will be repeated every week. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 43 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 44: Time Zones

    INSTALLATION AND PROGRAMMING MAN 17 Time Zones The Quantum QR5 has 10 time zones. Time Zone 00 is 24 hours access (not programmable) Time zone 01-09 are programmable according to user specify. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 45 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 46 INSTALLATION AND PROGRAMMING MAN 18 Holiday Time Zones The quantum QR5 has 20 Holiday Time Zones. It is your responsibility to maintain the holiday time zones since the holidays are not always fall on the same date every year. The holiday time zones only link to the auto unlock schedules.
  • Page 47 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 48 The Auxiliary Input 1 (AUXIN 1) can be use for exit switch, loop detector or any dry contact input devices. The AUXIN 1 is associated with relay 1 (door 1). See wiring diagram to wire the AUXIN1 file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 49 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 50 The Auxiliary Input 2 (AUXIN 2) can be use for exit switch, loop detector or any dry contact input devices. The AUXIN 2 is associated with relay 2 (door 2). See wiring diagram to wire the AUXIN2 file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 51: Do Not Disturb

    22 Do Not Disturb Do Not Disturb will disable the call feature on the Quantum QR5 just incase if you do not want to be disturb by the visitors. Time zone can also be set on Do not disturb, see function code...
  • Page 52 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 53 INSTALLATION AND PROGRAMMING MAN 23 Lock Out Count The Lock Out Count can be set 1-9. The system will be locked if invalid access (master code, access code or card) has been entered according to the lock out count programmed. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 54 INSTALLATION AND PROGRAMMING MAN 24 Alarm Mode Alarm mode is associated with invalid access set on function code 23. Alarm mode can be set to DISABLE, LOCAL , CALLING the house intercom phone or calling the call forwarding directory selected. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 55 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 56 INSTALLATION AND PROGRAMMING MAN 25 Keypad Press Beep The keypad press beep can be turned On (enable) and Off (disable). file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 57 INSTALLATION AND PROGRAMMING MAN 26 Door Beep The system will beep if granting access to door 1, door 2 or both doors. The beep can be turned On and Off. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 58: Talk Time

    INSTALLATION AND PROGRAMMING MAN 27 Talk Time file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 59 A minute before the talk time expired, the system will beep. The tenant can extend the talk time by pressing # on her his phone as soon as the warning beep is heard. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 60 INSTALLATION AND PROGRAMMING MAN 28 Door 1 Open Time The length of time the door 1(relay 1) will open. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 61 INSTALLATION AND PROGRAMMING MAN 29 Door 2 Open Time file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 62 INSTALLATION AND PROGRAMMING MAN The length of time the door 2(relay 2) will open. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 63 INSTALLATION AND PROGRAMMING MAN 30 Enable or Disable Call Forwarding This function must be enabled for automatic call forwarding file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 64 The system can be programmed for automatic call forwarding. The automatic call forwarding only works if the system is installed as an intercom. The call forwarding time must be set before the answering machine or voice mail answering the call, otherwise call forwarding time will not be activated. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 65 INSTALLATION AND PROGRAMMING MAN 32 Automatic Call Forwarding Directory file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 66 INSTALLATION AND PROGRAMMING MAN Call Forwarding Directory can be programmed in the system but only one can be selected as automatic call forwarding directory. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 67 INSTALLATION AND PROGRAMMING MAN 33 Temporary Codes Up to 10 temporary codes can be programmed for limited number of used (01-10 times). The code will be deleted after number of used expired. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 68 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 69 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 70 Door 1 and door 2 can be open and hold open and close using a special code. A valid code must be entered to hold door 1, door 2 or both open and must be re-entered same code to close door1, door 2 or both. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 71 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 72 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 73 INSTALLATION AND PROGRAMMING MAN 35 Temporary Card or Transmitter Up to 10 temporary cards or transmitters can be programmed for limited number of used (01- 10 times). The cards and transmitters will be deleted after number of used expired. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 74 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 75 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 76 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 77 Door 1 and door 2 can be open and hold open and close using card, fob or transmitter. A valid code must be entered to hold door 1, door 2 or both open and must be re-entered same code to close door1, door 2 or both. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 78 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 79 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 80 INSTALLATION AND PROGRAMMING MAN 37 Initiating Premise Call By default calling the Quantum QR5 from the premise phone (intercom Mode only), must be pressed. The key may not work on certain area or phone service, therefore must be used, below is the step.
  • Page 81 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 82: System Answer Mode

    INSTALLATION AND PROGRAMMING MAN 38 System Answer Mode The Quantum QR5 will answer incoming call from an outside line. The system answer mode must be enabled by selecting the number of ring. The number of rings can be set from 1st-9th ring before the system answer.

  • Page 83: Enable Or Disable Remote Access

    The tenant can press associated keypad key to release the door or gate. By default is number 9 key to release door 1 (relay 1) or 8 for door 2 (relay 2). This feature can be enabled or disabled. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 84 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 85 INSTALLATION AND PROGRAMMING MAN 40 DTMF Opening Door 1 By default DTMF number 9 key is used to open the door 1 remotely by the tenant. The DTMF number key can be changed. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 86 INSTALLATION AND PROGRAMMING MAN 41 DTMF Opening Door 2 By default DTMF number 8 key is used to open the door 2 remotely by the tenant. The DTMF number key can be changed. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 87 INSTALLATION AND PROGRAMMING MAN 42 Relay 2 Mode file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 88 Relay 2 is programmable. There are four mode: 1. Door Control (default) 2. Relay 2 triggers simultaneously as relay 1 3. Trigger if Function Code 24 is activated 4. Turn Relay 2 ON (DTMF 6) and OFF (DTMF 7) file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 89 INSTALLATION AND PROGRAMMING MAN 43 Do not Disturb Time Zones file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 90 INSTALLATION AND PROGRAMMING MAN It is to disable a call button ( ) according to the time zone programmed. No one can call from the system. 10 Do Not Disturb Time Zones can be programmed in the system. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 91 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...

  • Page 92: Firmware Version

    45 Manual Unlock Timer Using the timer door 1 and door 2 can be unlock according for an increment of one hour (01- 98 hours) or you can open and hold. 46 Firmware Version Check firmware release date. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 93 INSTALLATION AND PROGRAMMING MAN 50 Erase Memory to Default This function code will erase the memory to factory default. All the programming cannot be recovered unless if you program the system with optional TCP/IP Browser programming. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 94 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 95 INSTALLATION AND PROGRAMMING MAN 51 Edit Welcome Screen Welcome screen consists of 3-segment and each segment has 16 characters. file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 96 INSTALLATION AND PROGRAMMING MAN file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/system%20programming.htm[5/6/2010 3:12:44 PM]...
  • Page 97 MASTER CODE RETRIEVAL MASTER CODE RETRIEVAL BUTTON The default Master Code is 0000. If case the Master Code is not available, you may press and release the button to log on to programming, the screen will show as below file:///C|/PACH%20&%20COMPANY/QUANTUM%20MANUAL%202009/Quantum%20QR5-1/master%20code%20info.htm[5/6/2010 3:12:56 PM]...
