EASTMAN Plastic Master 627PM Maintenance Instructions And Parts List

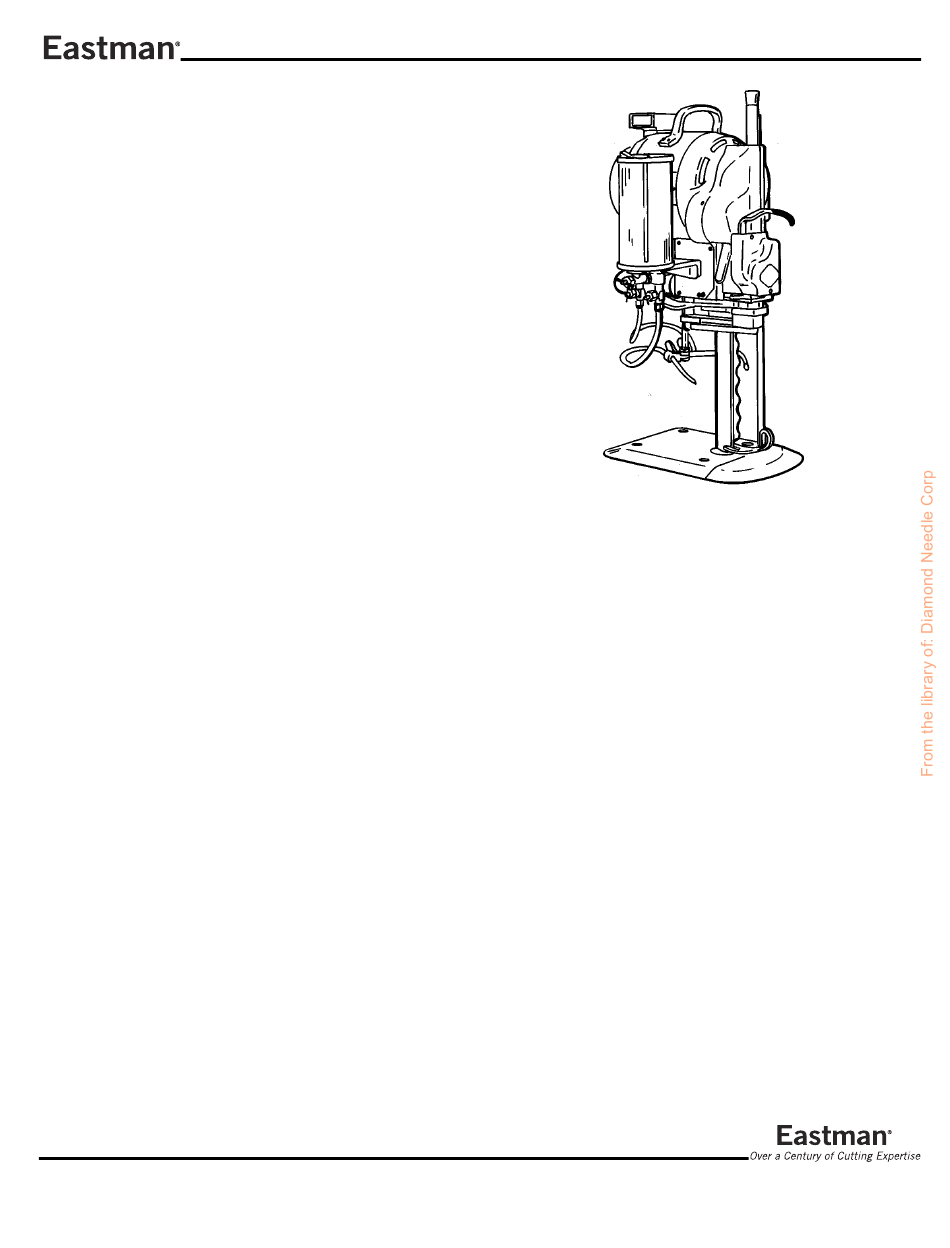

Plastic Master
Model 627PM/629PM
Maintenance, Instruction and
Parts List
OPERATING INSTRUCTIONS
Before turning machine on, swing felt pads into operating
position with felt pads bearing exactly on knife. Turn valve
(23) counterclockwise to allow EASTMAN lubricant to flow
freely without restriction. Open left and right valve (25) by
turning counter clockwise equal amounts to insure equal flow
for desire lubrication.
SHARPENING
Take the machine out of the lay. Swing felt holders out of the
way by pressing levers 36 and 46 together. Drop KNIFE
GUARD/PRESSURE FOOT by means of pressure foot lever
located next to machine operating handle. Press lever
downward with a slow, firm pressure to engage sharpening
mechanism. Too fast lever action may cause lever to lock, if
this occurs, lift lever and start over. After a few tries you will
feel correct operating pressure. For best results use GENU-
INE EASTMAN Waterproof Belts and GENUINE EASTMAN
High Speed Wave Knives.
CAUTION: To avoid extensive damage to machine,
swing felt holders out of the way by
pressing levers 36 and 46 together
BEFORE operating sharpener.
LUBRICATION
With electrical cord disconnected, fill water can assembly
with diluted EASTMAN Concentrated PLASTIC MASTER
FLUID. Fluid must be diluted with plain water before any use.
Add two ounces of fluid with one gallon of water. Shake or stir
thoroughly.
NOTICE: The Eastman Machine Co. does not warrant this
Plastic Cutting Fluid and disclaims all liability for
any damage that may occur through its use.
779 Washington St., Buffalo, N.Y. 14203-1396 U.S.A. • (716)856-2200 • Fax (716)856-1140 or (716)856-2068
Form C-1498
Manufacturers of Eastman Cloth Cutting and Cloth Spreading Machines
Website: www.EastmanCuts.com
FELT HOLDER ADJUSTMENT
If felt holders do not bear exactly on knife, adjustment is
required. Loosen setscrews (37), adjust and tighten screws.
To adjust for height, loosen thumb nut (29), adjust and
tighten.
FELT REPLACEMENT
With electrical cord disconnected, remove moistening de-
vice from machine by removing thumb nut (29) and rod screw
(34). Remove worn felts (43) and replace with EASTMAN part
191C1-14. Replace moistening device, thumb nut and rod
screw.
All reference numbers shown herewith refer to the partlist
and illustration on the following two pages.
Supplement to Eastman Blue Streak II Instruction Book and
Parts List. All Instructions and Safety Warnings contained
in the Blue Streak II manual must be read and followed. Only
instructions and parts special to the Eastman Plastic
Master Option are contained in this booklet and referral to
the Blue Streak II Book must be made.
