Summary of Contents for TERK Technologies XM5

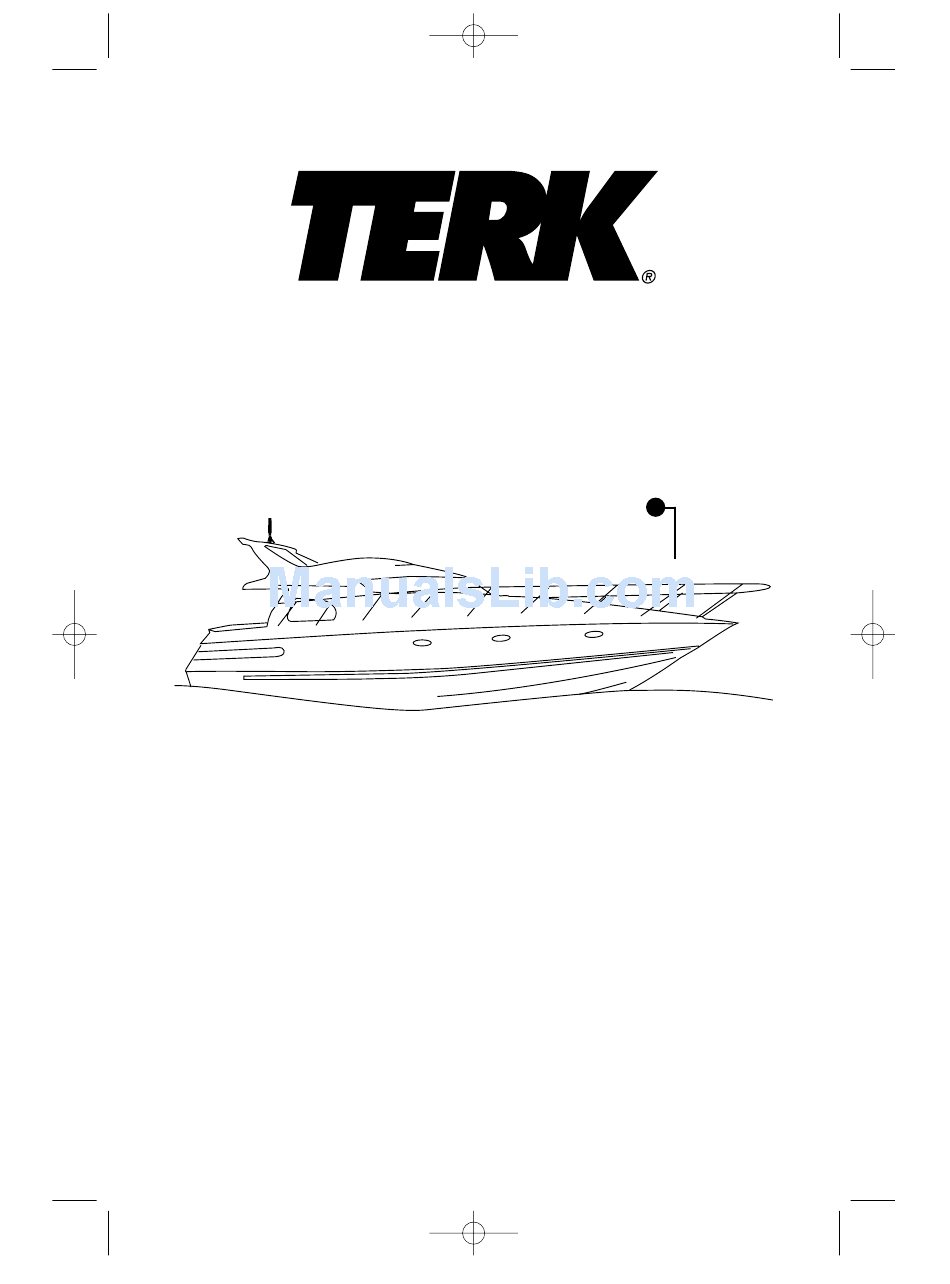

- Page 1 XM5 OM 4/8/03 09:56 AM Page 1 O W N E R ’ S M A N U A L READ THIS FIRST! MARINE SATELLITE RADIO ANTENNA...
-
Page 2: Table Of Contents
Parts for TERK XM5 Marine Satellite Radio Antenna ....... . -
Page 3: Introduction
• Meets or exceeds all XM Satellite Radio mobile-antenna specifications • Shock- and vibration-proof design The TERK XM5 Marine Satellite Radio Antenna is easy to install on most recreational marine craft. The package includes all the necessary mounting hardware, as well as color-coded cable connectors to ensure complete compatibility with all XM receivers. -
Page 4: Applications
4/8/03 09:56 AM Page 4 Applications The TERK XM5 Marine Satellite Radio Antenna can be installed on a variety of recreational marine craft, as shown below. For details, see Installation starting on page 6. Fishing Boats TERK XM5 Marine Satellite Radio Antenna Figure 1. - Page 5 Marine Satellite Radio Antenna Figure 3. The TERK XM5 is shown installed on an antenna extension on the stern of a sailboat. NOTE: When mounted in this configuration, the mast and sails may interfere with reception when the craft is at certain angles to the satellite.
-
Page 6: Installation
(1) Mounting Bracket With Mounting Hardware (1) Splitter Figure 4. Verify that your TERK XM5 package includes the above items. Recommended Tools and Supplies • Any electric drill and bits (to drill mounting holes for the mounting bracket) • Any socket tool/wrench set (to tighten machine bolts and hex nuts) •... -
Page 7: Installing The Terk Xm5 Marine Satellite Radio Antenna
Correct Incorrect Figure 5. Correct and incorrect TERK XM5 locations on a fishing boat. • As you plan the cable route, avoid running the cable through any component that may cause excessive chafing. Doing so may erode the jacket and break signal continuity. Also, avoid kinking, pinching, excessive bending, or twisting of the cable during a run. - Page 8 XM5 OM 4/8/03 09:56 AM Page 8 Installation Installing the TERK XM5 Marine Satellite Radio Antenna (continued) XM5 Antenna (with 30' of attached cable) Antenna Cable Antenna Extension (optional – length determined by application) For parts, see figure 4 on page 6.
- Page 9 Use the supplied cable tie wraps to secure cables from flagging in the wind and catching on objects. NOTE: For additional help with cable routing, consult your local marine audio dealer. XM5 Owner’s Manual FAKRA Connector Assembled...
-
Page 10: Use And Care
XM5 OM 4/8/03 09:56 AM Page 10 Use and Care In normal daily use, the TERK XM5 Marine Satellite Radio Antenna is a rugged, high-performance antenna that does not require any special attention. Troubleshooting Symptom XM radio displays “Antenna” or “Check Antenna” message XM radio displays “No Signal”... -
Page 11: Mechanical Specifications
About XM Satellite Radio For more information about XM Satellite Radio service, visit their web site at: www.xmradio.com Specifications/Limited Warranty/About XM Satellite Radio 11 XM5 Owner’s Manual 6.25 inches 1.50 to 1.75 inches White Polycarbonate 2.50 inches... - Page 12 XM5 OM 4/8/03 09:56 AM Page 12 TERK For Technical Support: 1.800.942.TERK (8375) For information about our full product line, visit our web site at: www.terk.com TERK is a registered trademark. The TERK logo is a trademark of TERK Technologies Corp.
