  • Page 5: Introduction

    This manual explains the installation and maintenance of Daktronics TI-2022 portable timing display. For additional information regarding safety, installation, operation, or service, refer to the telephone numbers listed in Section 6: Daktronics Exchange and Repair & Return Programs (p�16). This manual is not specific to a particular installation.
  • Page 6: Specifications Label

    Figure 1: Specifications Label Please have the assembly number, model number, and the date manufactured on hand when calling Daktronics customer service to ensure the request is serviced as quickly as possible. Knowing the facility name and/or job number will also be helpful.
  • Page 7: Display Overview

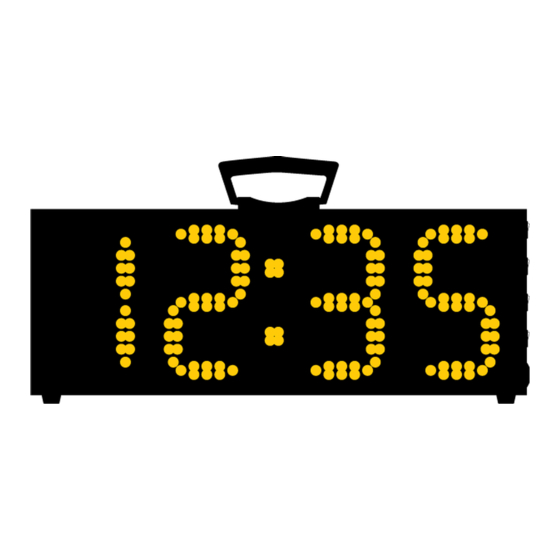

    The timing display is powered by 12 V batteries. Detachable power cord/transformer assemblies also permit operation of the TI-2022 with 120 or 240 VAC. The unit draws 1 Amp of power. The enclosed batteries (two in the outdoor model and one in the indoor model) are rechargeable and have a built-in charger.
  • Page 8: Mechanical Installation

    Mechanical Installation This section describes the mounting details of the TI-2022. Use this section when mounting a display to a wall or on the tripod kit. Other mounting methods can be used, but Daktronics engineers do not recommend those not documented here. Daktronics is not responsible for mounting the display.
  • Page 9: Tripod Mounting

    Tripod Mounting Mounting the display to a tripod requires the optional tripod mounting kit (Daktronics part # 0A-1153-0325). A camera tripod is not sturdy enough to safely support the display and will not attach to the display or adapter plate. An appropriate “speaker stand” tripod is available from Daktronics (part # A-1580).
  • Page 10: Electrical Installation

    To turn the TI-2022 back on after an Auto Off has occurred, turn the power switch off, wait a few minutes, and then turn it back on. In the case of a low battery, be sure to plug the display into a charger before continuing use.
  • Page 11: Wired Signal Connection

    Wired Signal Connection The TI-2022 is designed as a standalone timer with no need for signal cable from control consoles. However, it is still possible to connect signal in from Daktronics All Sport scoring ® consoles and OmniSport 2000 timing consoles, and signal out to multiple displays. For ®...
  • Page 12 10� During operation, ensure the radio antenna stays pointed straight up. For more information about the wireless radio control option, refer to the Gen VI Radio Installation Manual (DD2362277), provided with the receiver unit and available online at www.daktronics.com/manuals. Electrical Installation...
  • Page 13: Radio Settings

    Radio Settings With a radio receiver installed in the display, watch for the radio Broadcast settings (“b1”) and Channel settings (“C1”) during the Power-On Self Test (POST). These values must match the settings in the control console: RADIO SETTINGS BCAST 1 CHAN 01 If the radio receiver channel and broadcast settings match those set in the console but the console does not control the display, there may be radio interference.
  • Page 14: Controls & Timing Functions

    START (INCREMENT HOURS) programs. The operator selects each program and makes settings for the functions using the switches on the right side of the display. Figure 11 shows the TI-2022 control panel and programming connections. STOP (INCREMENT MINUTES) To select a program: 1�...
  • Page 15: Program Operations

    To modify the preset time for programs 1, 2, 4, and 6: 1� Press and hold <RESET> for 2 seconds. The display will show PR## (program number) and then the preset time. 2� While holding <RESET>, press <START> to increment minutes and press <STOP> to increment seconds.
  • Page 16 Note: An All Sport control console or an OmniSport timing console can be connected to the TI-2022 to control it, but the TI-2022 system is then limited to being an output device rather than the self-contained timing system for which it was designed.
  • Page 17: Display Maintenance

    Disconnect power when not using the display� Display Components The TI-2022 uses a single printed circuit board (PCB) that contains all of the electronics needed to make this system work: digit LEDs, control processors, power input connectors, horn, and other components. All switches, power systems, and input/output terminations are connected to the PCB.
  • Page 18: Replacing The Digit/Driver Printed Circuit Board

    Replacing the Digit/Driver Printed Circuit Board 1� To access the digit/driver PCB, remove the 10 outer screws to separate the front and back panels of the display. 2� Disconnect all plugs from the PCB by squeezing together the locking tabs and pulling the connectors free.
  • Page 19: Schematics

    Tripod, Speaker Stand Type A-1580 Battery, 12V 7.2 AH sealed lead-acid BT-1014 12 V Buzzer DS-1487 5-pin to 6-pin Radio Adapter W-2913 Refer to Section 6: Daktronics Exchange and Repair & Return Programs (p�16) for information on exchanging or returning parts. Display Maintenance...
  • Page 20: Daktronics Exchange And Repair & Return Programs

    Fill out and attach the enclosed UPS shipping document. c� Ship the part to Daktronics. 3� The defective or unused parts must be returned to Daktronics within 5 weeks of initial order shipment� If any part is not returned within five (5) weeks, a non-refundable invoice will be presented to the customer for the costs of replenishing the exchange parts inventory with a new part.
  • Page 21: Repair & Return Program

    Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: 1� Call or fax Daktronics Customer Service. Refer to the appropriate number in the chart on the previous page.
  • Page 22 This page intentionally left blank.
  • Page 23: A Reference Drawings

    Reference Drawings Refer to Resources (p�2) for information regarding how to read the drawing number. Any contract-specific drawings take precedence over the general drawings. Reference Drawings: Schematic; PC-2001 and TI-2022 ..............DWG-177466 Reference Drawings...
  • Page 24 This page intentionally left blank.
