- Page 1 Explosion-Proof Dome Network Camera Quick Start Guide UD08535B 05050620171218...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 Network Dome Camera·Quick Start Guide APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information...
- Page 5 Network Dome Camera·Quick Start Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU, the ATEX Directive 2014/34/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
- Page 6 Network Dome Camera·Quick Start Guide IP Degree: IP68 (2m, 2h) Ex Standards: IEC 60079-0: 2011 EN 60079-0: 2012/All: 2013 IEC 60079-1: 2014 EN 60079-1: 2014 IEC 60079-31: 2013 EN 60079-31: 2014 Nameplate: Special Conditions for Safe Use: 1. Ambient Temperature: -40°C to +60°C. 2.
- Page 7 Network Dome Camera·Quick Start Guide 5. Repair and overhaul shall comply with IEC 60079-19: latest version or its National equivalent. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
- Page 8 Network Dome Camera·Quick Start Guide Warnings ● Grounding: The both internal and external earthing shall be connected reliably. Ground wire cross-sectional area of not less than the phase connector cross-sectional area level, at least 4 mm ● All the electrical operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations of the nation and region.
- Page 9 Network Dome Camera·Quick Start Guide ● If the camera does not work properly, contact your dealer or the nearest service center. Never attempt to disassemble the speed dome yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) Cautions ●...
- Page 10 Network Dome Camera·Quick Start Guide ● To avoid heat accumulation, good ventilation is required for operating environment. ● To prevent accumulation of electrostatic charge, only damp cloth can be used during the cleaning. ● Keep the camera away from liquid while in use. ●...
-
Page 11: Table Of Contents
Network Dome Camera·Quick Start Guide Table of Contents 1 Introduction ................11 1.1 Overview ................11 1.2 Model Description ............. 11 2 Appearance Description ............13 2.1 Overview ................13 2.2 Cable Description .............. 14 3 Installation ................15 3.1 Wall Mounting ..............16 3.2 Pendant Mounting............. -
Page 12: Introduction
Network Dome Camera·Quick Start Guide 1 Introduction Overview Explosion-proof network camera is a surveillance product capable of video/audio collecting, smart encoding and network transmitting. It adopts an embedded system and a high-performed hardware process platform to achieve good stability and reliability. You can visit and configure your camera via web browser and client software. - Page 13 Network Dome Camera·Quick Start Guide Model Explanation Figure 1-1...
-
Page 14: Appearance Description

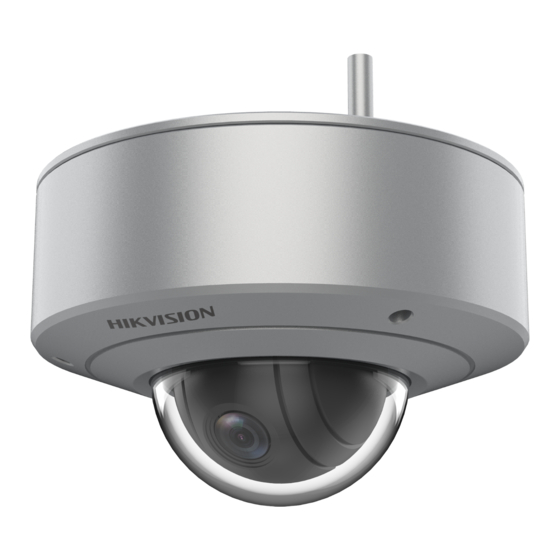

Network Dome Camera·Quick Start Guide 2 Appearance Description Overview Explosion-Proof Network Dome Camera Overview Figure 2-1... -
Page 15: Cable Description
Network Dome Camera·Quick Start Guide Cable Description Overview of Cables Figure 2-2 Description of Cables Table 2-1 Description Description Video out (CVBS) Audio input and output RS-485 Power cord (9 to 16 VDC) Alarm input and output RJ45 Ethernet interface... -
Page 16: Installation
Network Dome Camera·Quick Start Guide 3 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 9 to 16 VDC, please make sure your power supply matches with your camera. -
Page 17: Wall Mounting
Network Dome Camera·Quick Start Guide Wall Mounting Before you start: There is no wall mounting bracket included in the package. You have to prepare a wall mounting bracket if you choose this mounting type. The shown bracket below is only for demonstration. 3-Ø... - Page 18 Network Dome Camera·Quick Start Guide Fix Camera to Wall Mount Figure 3-2 Mark the 3 screw holes on desired mounting surface according to the wall mount. Drill screws holes (Ø 10.5 mm, 0.413 inch) for expansion bolts. Secure the wall mount to wall.
- Page 19 Network Dome Camera·Quick Start Guide Expansion Bolt Flat Washer Spring Washer Secure Wall Mount Figure 3-3...
-
Page 20: Pendant Mounting
Network Dome Camera·Quick Start Guide Pendant Mounting Before you start: There is no pendant mounting bracket included in the package. You have to prepare a pendant mounting bracket if you choose this mounting type. The shown bracket below is only for demonstration. DS-1694ZJ Pendant Mount Figure 3-4 Steps:... - Page 21 Network Dome Camera·Quick Start Guide Fix Camera to Pendant Mount Figure 3-5 Mark the 3 screw holes on desired mounting surface according to the pendant mount. Drill screws holes (Ø 10.5 mm, 0.413 inch) for expansion bolts. Secure the pendant mount to ceiling. Expansion Bolt Flat Washer...
-
Page 22: Setting The Network Camera Over The Lan
Network Dome Camera·Quick Start Guide 4 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 23: Activating The Camera
Network Dome Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation. -
Page 24: Activation Via Sadp Software
Network Dome Camera·Quick Start Guide Activation Interface(Web) Figure 4-3 Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 25 Network Dome Camera·Quick Start Guide Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2. Check the device status from the device list, and select the inactive device. Select inactive device. Input and confirm password.
-
Page 26: Modifying The Ip Address
Network Dome Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 27 Network Dome Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address Figure 4-5...
- Page 28 Network Dome Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 6.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.
-
Page 29: Accessing Via Web Browser
Network Dome Camera·Quick Start Guide 5 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 30 Network Dome Camera·Quick Start Guide 4. Click Login. Login Interface Figure 5-1 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 31: Operating Via Hik-Connect App
Network Dome Camera·Quick Start Guide 6 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using... -
Page 32: Enable Hik-Connect Service Via Web Browser
Network Dome Camera·Quick Start Guide Verification Code Setting (SADP) Figure 6-1 Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 6.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. - Page 33 Network Dome Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 5. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Platform Access Configuration (Web) Figure 6-2 3. Select Platform Access Mode as Hik-Connect. 4.
-
Page 34: Hik-Connect Setup
Network Dome Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before... - Page 35 Network Dome Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Scan QR Code Figure 6-4 Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
-
Page 36: Initializing The Memory Card
Network Dome Camera·Quick Start Guide Initializing the Memory Card Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
