1. Keep work area clean.
2. Keep children away from this equipment and your work area.
3. Do not operate this equipment under the influence of alcohol or drugs.
4. Do not operate this equipment near open flames or other heat sources.
5. Read all safety information for material to be sprayed.
6. Read all safety information for cleaning materials to be used.
7. Check all seals before connectiing to air supply. Make sure lid is fully attached to the cup,
retaining is screwed past the first thread, air pressure plug is fully tightened and air supply is
sealed and firmly attached.
8. Use eye protection at all times.
9. Wear properly fitting protective clothing at all times.
10. Replace any component that looks warn or damaged immediately.
11. Use only approved ES Manufacturing components.
12. Follow all company saftey policies, and contact your supervisor with any questions.
G960 Spray Gun
w/2.5mm Nozzle
PT20
MH15
Air
Connection
PT20
AH15

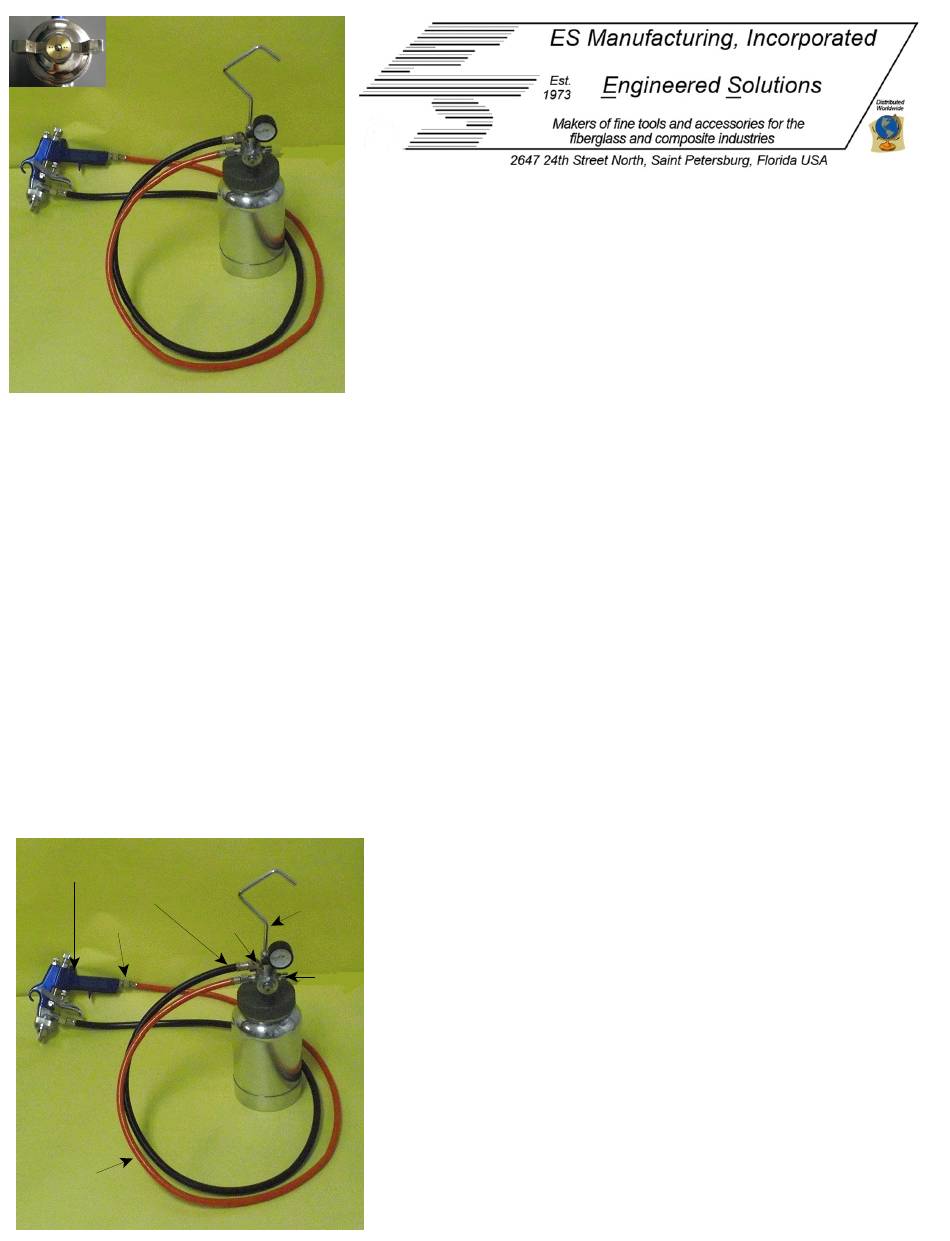

Figure 1
G960-2.5 w/2 liter High Pressure Spray Gun
Safety Warnings & Precautions:
PT20
012
Material
1. Connect black material hose (PT20-MH15) to the
Outlet
Air
2. Connect the other end of the black hose to the both of
Inlet
3. Connect the orange air hose (PT20-AH15) toe the air
4. Connect the other end of the orange hose to the bottom
Pistola de alta Presión (G9602L2.5)
Includes:
1 G960 Spray Gun w/ 2.5mm Nozzle
1 PT20 2 Liter Pressure Tank
1 AH15 Orange Air Hose 1.5m
1 MH15 Blacke Material Hose 1.5mm
1 PT20-012 Plated Steel Handle w/Nut
1 PT20-005 Tank Lid Seal (EP)
1 Tool Kit, (Stamped Wrench & Hex Key)
material outlet as shown, using the supplied wrench.
the G960 spray gun head, just below the air cap, using
the supplied wrench.
connection point on the regulator assembly as shown.
of the G960 spray gun, at the bottom of the handle as
shown. Using teflon sealing tape on these connection
will reduce the chance for air leaks.
Reference Figure 1
Advertisement
Table of Contents
Related Manuals for ES manufacturing G9601L2.5
Summary of Contents for ES manufacturing G9601L2.5
- Page 1 9. Wear properly fitting protective clothing at all times. 10. Replace any component that looks warn or damaged immediately. 11. Use only approved ES Manufacturing components. 12. Follow all company saftey policies, and contact your supervisor with any questions. G960 Spray Gun Assembly w/2.5mm Nozzle...
- Page 2 Assembly PT20-012 Reference Figure 2 1. Connect plated steel handle (PT20-012) to the top of the centerpost assemble as seen is Figure 1. PT20-013 2. Lock the supplied plated steel hex nut (PT20-013) to secure steel handle Coupling / 3. Close the air adjustment cap on the regulator assembly Hose Nipple (Sold Seperately by turning it clockwise.
- Page 3 Spraying Techniques For Most uses, e.g. painting walls benches. Wehicles. Etc., the best results are obtained by spraying thin, even coats of paint. Let the layers " dry in between coats. As with any manual process, practice leads to perfection. Th followint are a few general rules that may be of help in perfecting your process: * Use the lowest pressure setting recomended Figure 6-Distance from wall...
- Page 4 Cleaning: Warning: Always dispose of paints, coating and other chemicals in a proper and responsible fashion. If you have questions regarding the propper disposal of any chemical, contact the chemical manufacturer for instructions. Step 1. Depressurize the Cup (g960001) and disconnected the house. Step 2.
- Page 5 Lubrication: Before and after each use of a G960-2L, perform the following lubrication process, using a non-silicon, spray gun lubricant: Step 1. Put 2 or 3 drops of lubircant on the Part of NK, infront of the Trigger(g960015). Tip the gun backward and allow the lubricant to drip into the front of the gun housing.
- Page 6 ES Manufacturing, Inc. PO Box 11692 St. Petersburg, FL 33733-1692 Fold Here G9601L2.5 G9602L2.5 G9609L2.5 ______________________________________________________________________ Date of Purchase____/____/_____ Your email address______________________________________________________ Your Company’s Name __________________________________________________ Mailing Address __________________________________________________ __________________________________________________ City / State / Postal Code__________________________________________________ Phone #___________________________ Fax #_______________________________...
