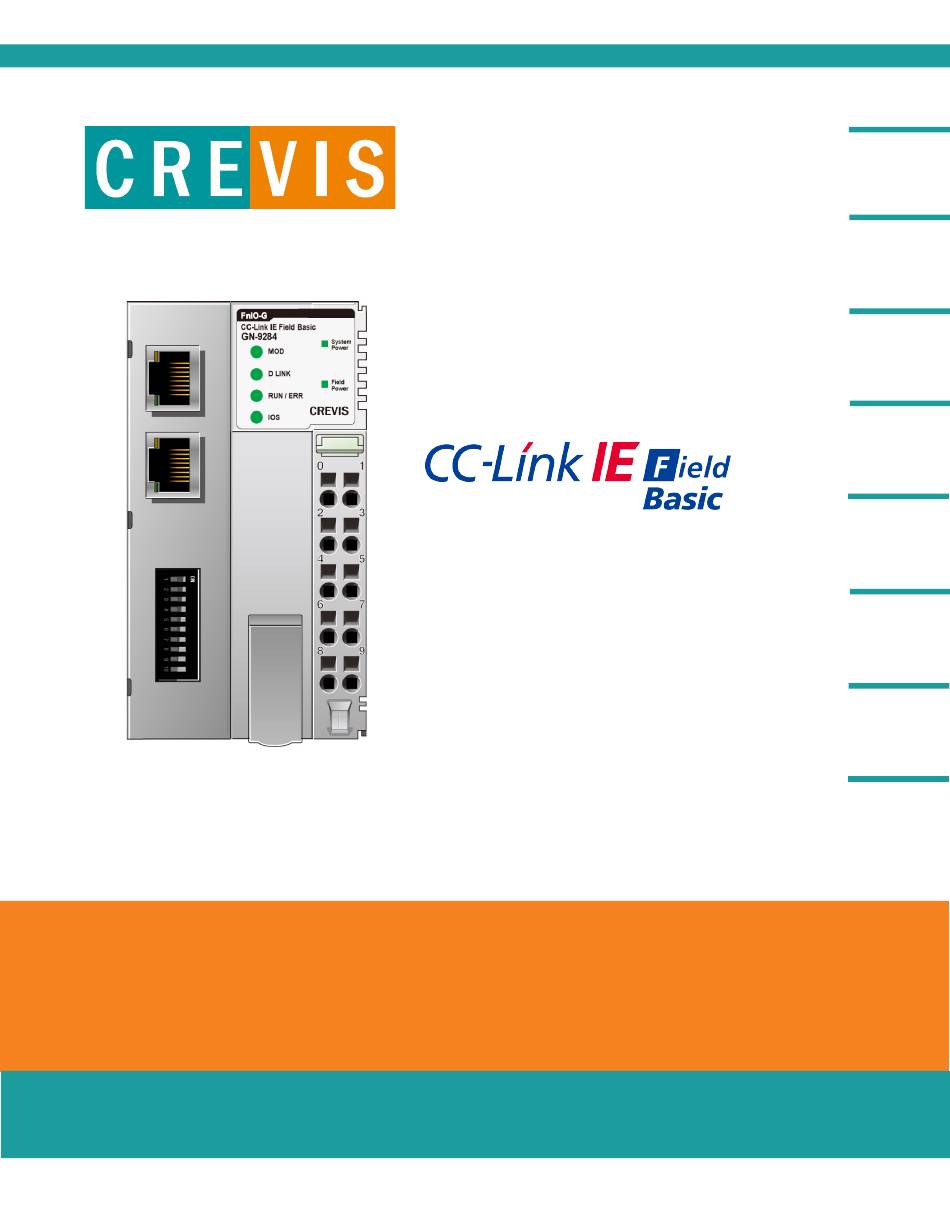

- Page 1 Introduction Example System Connections Install CSP Profile PLC Ethernet Setup G-Series Remote IO Network Configuration GN-9284 CC-Link IE Field Basic Download Settings Monitor Data Quick Start Guide...
- Page 2 Remote IO: GN-9284 Slice #1: GT-1238 8 pt, IN Slice #2: GT-2328 8 pt, OUT Slice #3: GT-3424 4 pt, Analog IN Slice #4: GT-4424 4 pt, Analog OUT FX5UC-32/DSS-TS Crevis Remote IO Ethernet Figure 2.1: Sample System Layout Page 2...
- Page 3 Connections Wire the system and field power as in Figure 3.1. 24 VDC System Power 0 VDC 0 VDC Field Power 24 VDC Figure 3.1: Adaptor Power Connections Register Profile Download the GN-9284 CSPP profile and register in GX-Works3. Tool Profile Management Register Figure 4.1: Register Profile Page 3...
- Page 4 PLC Ethernet Setup Enter the IP Settings for the PLC in GX-Works3. For details on GX-Works3 reference the software manuals Figure 5.1: PLC Ethernet Settings GN-9284 IP Address setting Set DIP switches #1 & #10 to ON. This will set the adaptor IP to 192.168.3.1 Figure 5.2: DIP Switch Settings Page 4...
-
Page 5: Network Configuration
Network Configuration Enable the CC-Link IEF Basic Figure 6.1: CC-Link IE Field Basic Settings Enter the Network Configuration Settings and add station #1 by dragging in the GN-9284 adapter from the Module List. Figure 6.2: CC-Link IE Field Basic Configurations Select these settings;... - Page 6 Enter the Refresh Settings and set the CPU Side devices. These settings control where the GN-9284 data is accessed in the PLC. Figure 6.3: Refresh Settings Note: The first digital input on Station #1 will be X500 Note: The first digital output on Station #1 will be Y500 RWr: 4000 Note: The first analog input data on Station #1 will be D4000...
- Page 8 Crevis USA 5220-C E 64 Indianapolis, IN 46220 800.xxx.xxx www.crevis.us CREVIS.QS.GN-9284.A...
