13 Troubleshooting

13.1

Checking service messages

appears if you have set a maintenance interval, for ex-
ample, and this has passed or a service message is issued.
The product is not in fault mode.
▶
Navigate to Menu → Live monitor and confirm by press-
ing .
Condition: S.40 is displayed
The product is in Comfort protection mode. The product con-
tinues to run with restricted comfort after it has detected a
fault.
▶
To establish whether or not a component is defective,
read the fault memory. (→ Page 41)
Note
If no fault message is present, the product will
automatically switch back to normal operating
mode after a certain time.
13.2

Eliminating faults

▶
If fault messages (F.XX) occur, eliminate the faults by
checking the table in the appendix or using the function
menu or the check programmes.
Overview of fault codes (→ Page 57)
Function menu – Overview (→ Page 60)
Check programmes – Overview (→ Page 60)
If several faults occur at the same time, the display shows
the corresponding fault messages for two seconds each in
alternation.
▶
Press (max. three times) to restart the product.
▶
If you are unable to eliminate the fault and the fault re-
curs despite reset attempts, contact customer service.
13.3

Calling up and clearing the fault memory

The last 10 fault messages are stored in the fault memory.
▶
Navigate to the Fault list menu.
◁
The display shows the number of faults that have
occurred, the fault numbers and the corresponding
plain text display.
▶
Press or to call up individual fault messages.
▶
Press twice to delete the fault list.
13.4

Resetting parameters to factory settings

Navigate to Menu → Installer level → Diagnostics
1.
menu → D.096 Reset to factory settings? and con-
firm by pressing .
2. Set the diagnostics code to 1, and confirm by pressing
.
0020244998_04 ecoTEC plus Installation and maintenance instructions
13.5

Preparing the repair work

1. Decommission the product.
2. Disconnect the product from the power mains.
3. Remove the front casing. (→ Page 17)
4. Close the gas isolator cock.
5. Close the service valves in the heating flow and in the
heating return.
6. Close the service valve in the cold water pipe.
7. Drain the product if you want to replace water-bearing
components of the product.
8. Make sure that water does not drip on live components
(e.g. the electronics box).
9. Use only new seals.
13.5.1 Procuring spare parts
The original components of the product were also certified
by the manufacturer as part of the declaration of conformity.
If you use other, non-certified or unauthorised parts during
maintenance or repair work, this may void the conformity of
the product and it will therefore no longer comply with the
applicable standards.
We strongly recommend that you use original spare parts
from the manufacturer as this guarantees fault-free and safe
operation of the product. To receive information about the
available original spare parts, contact the contact address
provided on the back page of these instructions.
▶
If you require spare parts for maintenance or repair
work, use only the spare parts that are permitted for the
product.
13.6

Replacing defective components

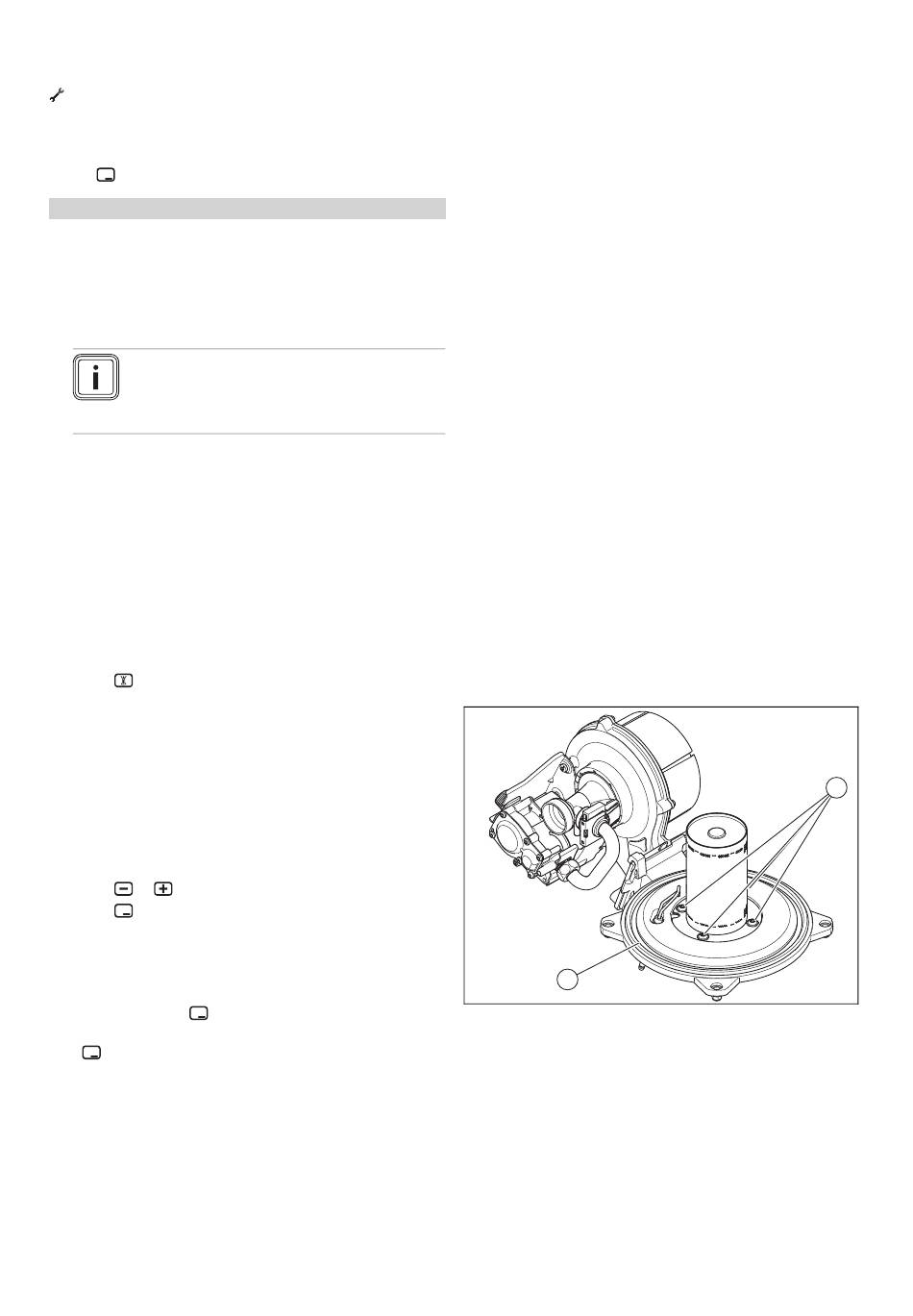

13.6.1 Replacing the burner
1. Remove the compact thermal module. (→ Page 37)
2
2. Undo the four screws (1) on the burner.
3. Remove the burner.
4. Install a new seal (2) on the new burner.
5. Install the compact thermal module. (→ Page 39)
1
