- Page 1 LIVE STREAM CAMERA (OPERATIONS MANUAL) Version 1...
-
Page 2: Table Of Contents
……………………………………………………………………………………………………………………….. 21 Thank you for choosing the JAGER PRO® Live Stream Camera. This manual will help you get the most out of your new device. You will also find this manual, other technical articles and more information about your camera and service at: https://jagerpro.com/... -
Page 3: Camera Characteristics

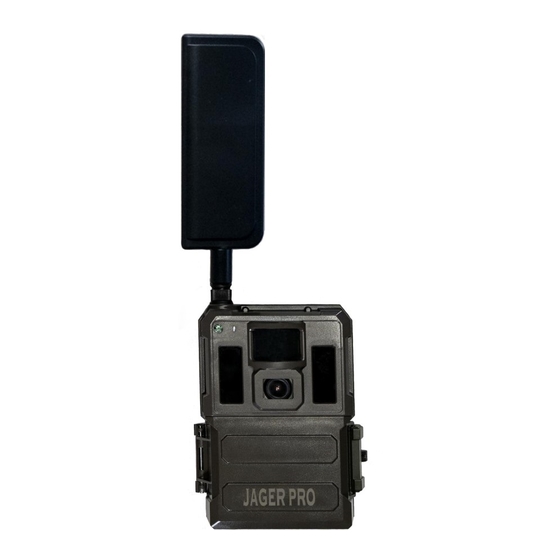

CAMERA CHARACTERISTICS This manual is intended to visually guide users through the individual steps to properly program, operate and maintain the Verizon and/or AT&T versions of our JAGER PRO® LIVE Stream Cameras. Front View 1. Antenna: (Standard antenna shown) Receives cell tower signals. - Page 4 Warning: Forcing camera threads to the bottom will damage mounting port and camera housing. 2. Tree gripper accessory allows the camera to be secured to a tree. (JAGER PRO® recommends removing the tree gripper accessory when using to a M.I.N.E. ® T-post camera mount) 3.
- Page 5 Inside View 1. Antenna Port: Attachment point to install various antennas depending on local cellular strength. 2. Camera Information: This sticker provides the camera model, serial number and the 15 digit IMEI number. 3. LCD Display: Screen to observe menus, photos and settings. Menu Button: From the Live Preview Screen, press MENU to enter the Setup menus.
-
Page 6: Quick Start Programming
We recommend the JAGER PRO® 12 volt external power supply for extended camera use in the field which is specified for JAGER PRO® products. The camera will operate using only the internal Lithium Ion rechargeable battery. -
Page 7: Live Preview Screen
QUICK START PROGRAMMING (Continued) If you do not have an active SIM card, the screen will display the JAGER PRO logo. It will start with “System Initializing”, then “Searching for Network, please wait. Please do not press any keys.” in the center of the screen. -
Page 8: Main Menu Tabs
MAIN MENU TABS Press the MENU button to access the Setup menus. **If no buttons are pressed the camera will automatically arm itself after 3 minutes of sitting idle. Users may press any button or move the selector switch to OFF then back to ON to restart the camera and access the MENU again. -
Page 9: Trigger Menu
Trigger Menu: Setting Items Description Sensitivity Off (time lapse only, not triggered) Low (temps below 10 F) Normal (10 F – 80 F) High (temps above 80 F) 0s - 60 min: The timeout period between PIR triggers for each Trigger Interval photo or video capture. -
Page 10: System Menu
The default password is 000000. Choose OFF to stop this function and ON to set a six digit password. If you lose the password, you must send it in to JAGER PRO® to reset it. Setting Items Description Name Tag Set this to name your camera. -
Page 11: Wireless Menu
Wireless Menu: Setting Items Description Send Mode Instant: (Recommended) The camera sends a photo immediately when it takes a photo. Pressing the OK button while Instant is highlighted will bring up the Max Num field. The Max Num field indicates the maximum number of photos or texts allowed to be sent within 24 hours. -
Page 12: Activating Service
Tap OK to confirm your time zone. It will state “Update Successful!”, press OK to move to the next step. c. Press OK to execute the command to Add to your JAGER PRO® account. The camera will display the IMEI number and registration code. -
Page 13: Mobile App Setup
From your phone or mobile device, for Android devices, visit the Google Play store, for iPhone devices, visit the Apple App store. Search for “jagerpro camera mgmt.”. Download and install the JAGER PRO® app. Once downloaded, you must log in using your my.jagerpro.com email address and password. -
Page 14: Live Stream Functions
LIVE STREAM FUNCTIONS Once the JAGER PRO® app has been downloaded and the camera is registered, your live stream camera is now ready for use. First, ensure that the live stream camera is turned on and placed in the “armed” mode. Failure to ensure that the camera is armed will result in the live stream function not available. -
Page 15: Information Strip
When you activate your data plan for the first time, your camera is automatically registered in our system. You can still register your new equipment on the JAGER PRO® website via the camera Module ID or Serial Number so we may provide appropriate firmware updates. These updates are necessary to ensure your equipment operates efficiently as network wireless technology changes. -
Page 16: Pairing Camera Transmitter To Control Box Receiver
PAIRING LIVE CAMERA TRANSMITTER TO CONTROL BOX RECEIVER NOTICE The most efficient way to pair Live Stream Camera with control box receiver is to conduct these steps before mounting camera in place. (THIS STEP IS ONLY A FUNCTION OF THE M.I.N.E.® AND LIVE STREAM CAMERAS.) The Live Stream Camera has an internal transmitter on the circuit board and must be located within 50 yards of the M.I.N.E.®... -
Page 17: Camera Deployment
CAMERA DEPLOYMENT Align the ¼” by 20 threads of the T-Post mounting bracket to the camera mounting port. Thread the mounting bracket no more than three complete rotations into the camera mounting port. Then tighten using the adjusting nut. Note: Forcing external threads to the bottom will damage the camera mounting port and the camera housing. -
Page 18: Limited Warranty
In no event will JAGER PRO®, Inc. be liable to you, or any third party, for any damages in excess of the purchase price of the product. In addition, JAGER PRO®, Inc. -
Page 19: Care And Maintenance
Use only the recommended power accessories. Any use of non-JAGER PRO® power sources will void the warranty on your camera. • Do not mix battery types. We recommend Energizer Ultimate Lithium batteries for your camera. You should NEVER MIX BATTERY TYPES! Damage to the camera can result and your warranty will be voided if you do so. - Page 20 This limited warranty is the sole warranty for hardware and software products offered by JAGER PRO® and JAGER PRO® shall not be liable for any amounts for said products except in compliance with this warranty. If during this period, through normal use, a hardware product becomes defective due to defects in materials or workmanship, JAGER PRO®...
-
Page 21: Technical Specifications
Technical Specifications Image Resolution 4 MP / 8 MP 5s / 10s / 15s / 20s / 25s / 30s, WVGA / 720P / 1080P Video Resolution Operation Humidity 5% - 90% Thumbnail Size Options: 800 x 480 or 1376 x 768 Transmitted Images Photo: 0.45s / Video: 0.5s Trigger Time... -
Page 22: Camera Accessories
CAMERA ACCESSORIES JAGER PRO® offers several items for the LIVE Stream camera to increase the versatility and function of the camera. These items may be purchased online at https://jagerpro.com/shop/. T- Post Camera Mount The mount fits posts up to 2.1” in diameter and tightens in place with a large thumb screw. -
Page 23: Glossary
ICCID- Integrated Circuit Card ID is a unique number assigned to a SIM card used on a GSM, CDMA or LTE network. I.C.E.®- Intelligence Collecting Equipment. The JAGER PRO® I.C.E.® cellular camera is a next-generation scouting tool which can send motion-triggered or time-lapse pictures to email, including your cell phone. - Page 24 JAGER PRO® offers a complete line of Hog Control Products, Services and Education View our instructional video series online at: Like us on Facebook www.facebook.com/JAGERPROHCS 2900-A Smith Road Fortson, GA 31808 Phone: 706-718-9789 Email: cameradepartment@jagerpro.com Website: https://jagerpro.com...
