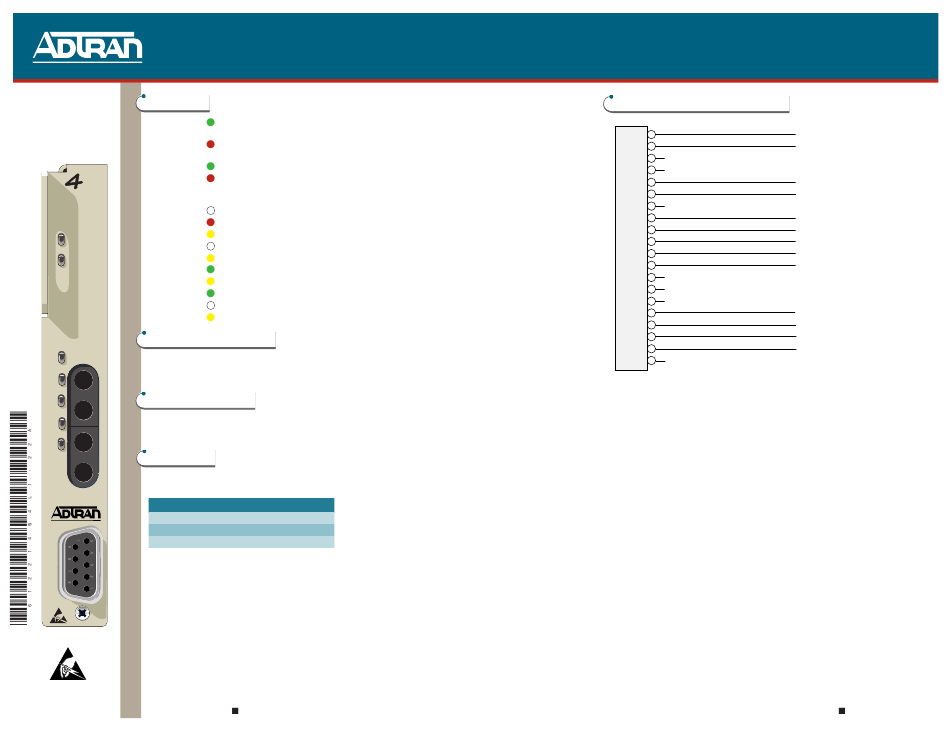

HDSL4 3192
LED STATUS
H4TU-C
DSL1/DSL2
CLEI: T1L133X4_ _
DSX
H TUC
1221404L1
ALM
DSL 1
ESF/SF
DSL 2
B8ZS/AMI
LBK
DSX EQ SPLITTING JACKS
DSX
TX
DSX-1 transmit toward the local loop (intrusive)
DSX EQ
RX
DSX-1 receive from the local loop (intrusive)
ALM
TX
ESF
DSX MONITOR JACKS
/SF
RX
TX
DSX-1 transmit toward the local loop (nonintrusive)
B8ZS
/AMI
RX
DSX-1 receive from the local loop (nonintrusive)
LBK
TX
COMPLIANCE
RX
This product is intended for installation in restricted access locations only and in equipment
with a Type "B" or "E" enclosure.
DSX MON
ut
Code
Installation Code (IC)
Telecommunication Code (TC)
Power Code (PC)
The DSX-1 interface is intended for connection to intra-building wiring only.
This product provides span powering voltage (negative only with respect to ground, -190 VDC
nominal, GFI protection < 5 mA) and meets all requirements of Bellcore GR-1089-CORE (Class A2)
and ANSI T1.418 Issues 1 and 2.
C A U T I O N
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
HDSL4 3192 H4TU-C
Green
Loop 1/ Loop 2 synchronization achieved and signal is present.
No errors currently detected, and SNR margin ≥ 6 dB.
Red
Loop 1/ Loop 2 synchronization not achieved, in sync with errors,
or SNR margin ≤ 6 dB.
Green
DSX-1 signal present and no errors currently detected.
Red
In framed mode, denotes loss of framing or loss of sync at the
DSX-1 input. In unframed mode, denotes loss of signal DSX-1
input.
Off
No T1 alarms are active.
Red
Loss of DSX-1 signal from the network.
Yellow
Loss of DS1 signal from the CPE.
Off
Unframed.
Yellow
ESF framing
Green
SF framing
Yellow
B8ZS line coding.
Green
AMI line coding.
Off
No local loopbacks active.
Yellow
Local loopback active.
Input Output
A
X
F
C
For a complete Installation and Maintenance Practice (P/N 61221404L4-5): (877) 457-5007, faxback Document 795. Please have your fax number ready.
H4TU-C EDGE CONNECTOR WIRING
R TX DSX (In from DSX)
1
R1 RX DSX (Out to DSX)
2
3
4
GND
5
R1 HDSL4 Loop 2
6
7
-48V
8
R HDSL4 Loop 1
9
Fuse Alarm (to Alarm Module)
10
T TX DSX (In from DSX)
A
T1 RX DSX (Out to DSX)
B
C
D
E
T1 HDSL4 Loop 2
F
RCV LOS (to Alarm Module)
H
Frame Ground
J
T HDSL4 Loop 1
K
L
JOB
A
ID
61221404L1-22A
0206
