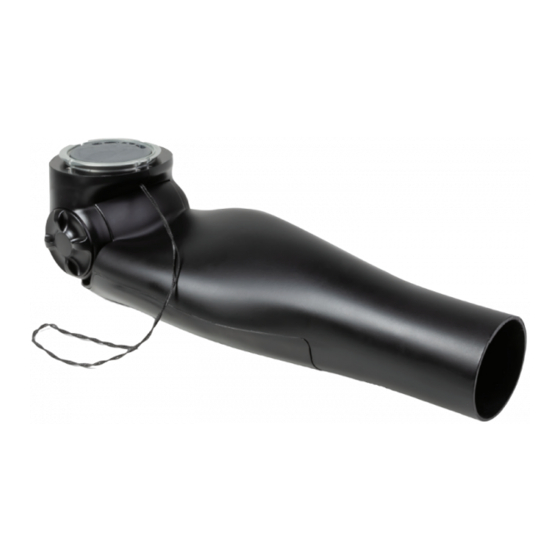

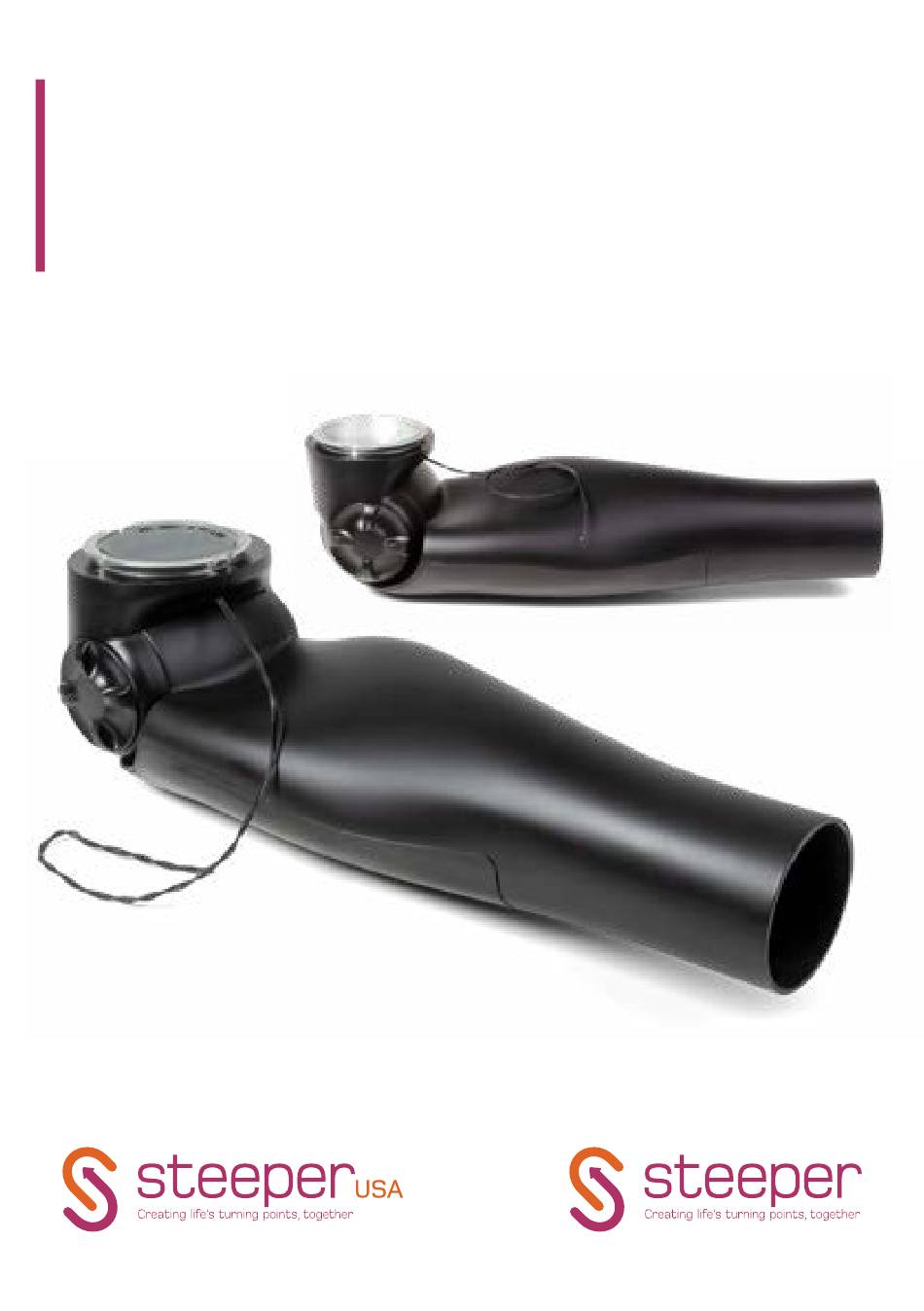

- Page 1 Espire Elbow ™ Classic Plus, Classic and Basic User Guide...
- Page 2 (Classic Plus Only) Espire Classic – Mechanical elbow with manual lock and forearm The Espire Classic Plus has a built-in battery compartment which could be counterbalance for lift compensation. Body-powered only. used to house a battery. The charging port and switch may be located near Espire Basic –...
- Page 3 MANUAL LOCK THE COUNTERBALANCE / SPRING-ASSIST Manual Lock Overview Counterbalance and Spring-assist Overview The Espire features a mechanical locking mechanism that can be locked or Depending on which model you are using, the Espire will include either a unlocked while under load, with a maximum holding limit of 25lbs/11kg. counterbalance or spring-assist mechanism: The manual lock cable is attached to the upper elbow assembly, near the midline.
- Page 4 Note: Elbow will spring back into flexion according to how much spring lift assist is put into the system if it exceeds the Indications for use of the Espire Classic Plus, Classic, or Basic elbow minimum adjustment. systems include the following: Spring-assist Adjustment •...
- Page 5 Espire Elbow. For maximum safety and convenience, Steeper Group recommends that, at the very least, a specialist evaluate the need for any adaptations to the vehicle. It is...
- Page 6 If such use is necessary, any equipment needs to be Storage humidity range. ISO 15223-1 agreed appropriate with their Prosthetist and/or Steeper. Reference no. 5.3.8 Warning: Use Only Specified Equipment Protection against solid foreign objects of 12.5 mm...
- Page 7 Steeper Group Unit 3 Stourton Link, Intermezzo Drive Steeper Group, Unit 3 Stourton Link, Leeds, LS10 1DF Intermezzo Drive, Leeds, UK, LS10 1DF Tel: +44 (0) 870 240 4133 Email: customerservices@steepergroup.com MADE IN THE UK ©2020 Steeper Group SteeperUSA All rights reserved.
