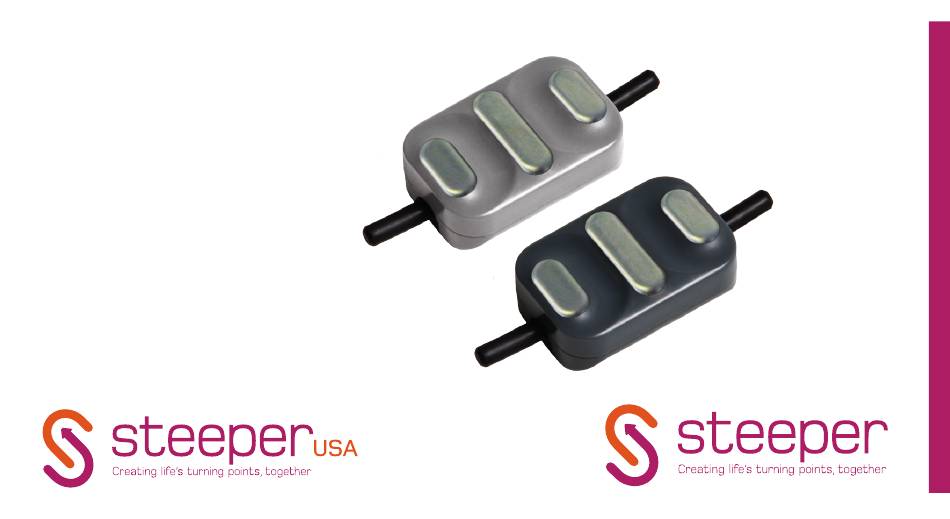

- Page 1 Electrode Technical Information ELEC50 / ELEC60...
-
Page 2: Intended Use And Key Features
Intended use and key features The electrode is to be used as the control input(s) for a myoelectric The electrode (ELEC60/ELEC50) is designed and manufactured by Steeper. It prosthesis. It is suitable for direct skin contact: is the same size and shape as electrodes –... -
Page 3: Safety Information
BS EN ISO 9001:2008, – Do not disassemble the electrode. ISO27001:2005, ISO50001 & TickIT Issue 5. This certifies that Steeper – The electrode must only be used within the power range recommended in this... -
Page 4: Product Details
– Appropriate control device for prosthetic devices from all major prosthetic devices from all major manufacturers. manufacturers. 50Hz electrode (ELEC50) should – Titanium contacts for optimum – Titanium contacts for optimum be used in these areas. conductivity of signal and... -
Page 5: Principal Dimensions
C to 60 Max humidity E25590 Maximum atmospheric pressure 104Pa Power supply 5V to 16V* Lamination kit Bandwidth 90-450Hz Vacuum kit Adjustment tool Lamination kit Spare suspension legs Electrode (ELEC50 or User guide card *Steeper batteries recommended ELEC60) Technical information... -
Page 6: Further Information
Gain level adjustment Further information To adjust and balance the electrode, turn the dial on the back of the product using the A guide for using the lamination kit and Spares of the following parts can be tool provided. Number 1 is the lowest setting, number 7 is the highest setting. vacuum forming kit is available at: ordered using the appropriate part number. - Page 7 Connecting electrode WARNING Use NLU0010 silicone Ensure blue side grease to seal the of electrode cable cable retaining block. (ECA=300, 600 or Remove any excess 1000) is facing towards after connection. the electrode.
- Page 8 Electrode suspension leg removal Electrode suspension leg reattachment If the electrode suspension legs become worn over time, they may need replacing. There are two replacements included. Firstly remove them as shown and then replace as shown. Apply a small amount Insert the suspension Remove any excess of NAD0107 glue to...
-
Page 9: Warranty
Store in a cool dry place. Disposal - If you no longer require your product please return it to your local supplier or Steeper/SteeperUSA with a request to dispose of it safely. Customer Services / Technical Support - For technical assistance/support... - Page 10 Notes...
- Page 11 Steeper Group SteeperUSA Unit 3, Stourton Link 3619 Paesanos Parkway Intermezzo Drive Suite 200 Leeds San Antonio LS10 1DF TX 78231, USA +44 (0) 870 240 4133 210 481 4126 customerservices@steepergroup.com inquiries@steeperusa.com www.steepergroup.com www.steeperusa.com RSLLIT327 Issue 4 © 2017 Steeper...
