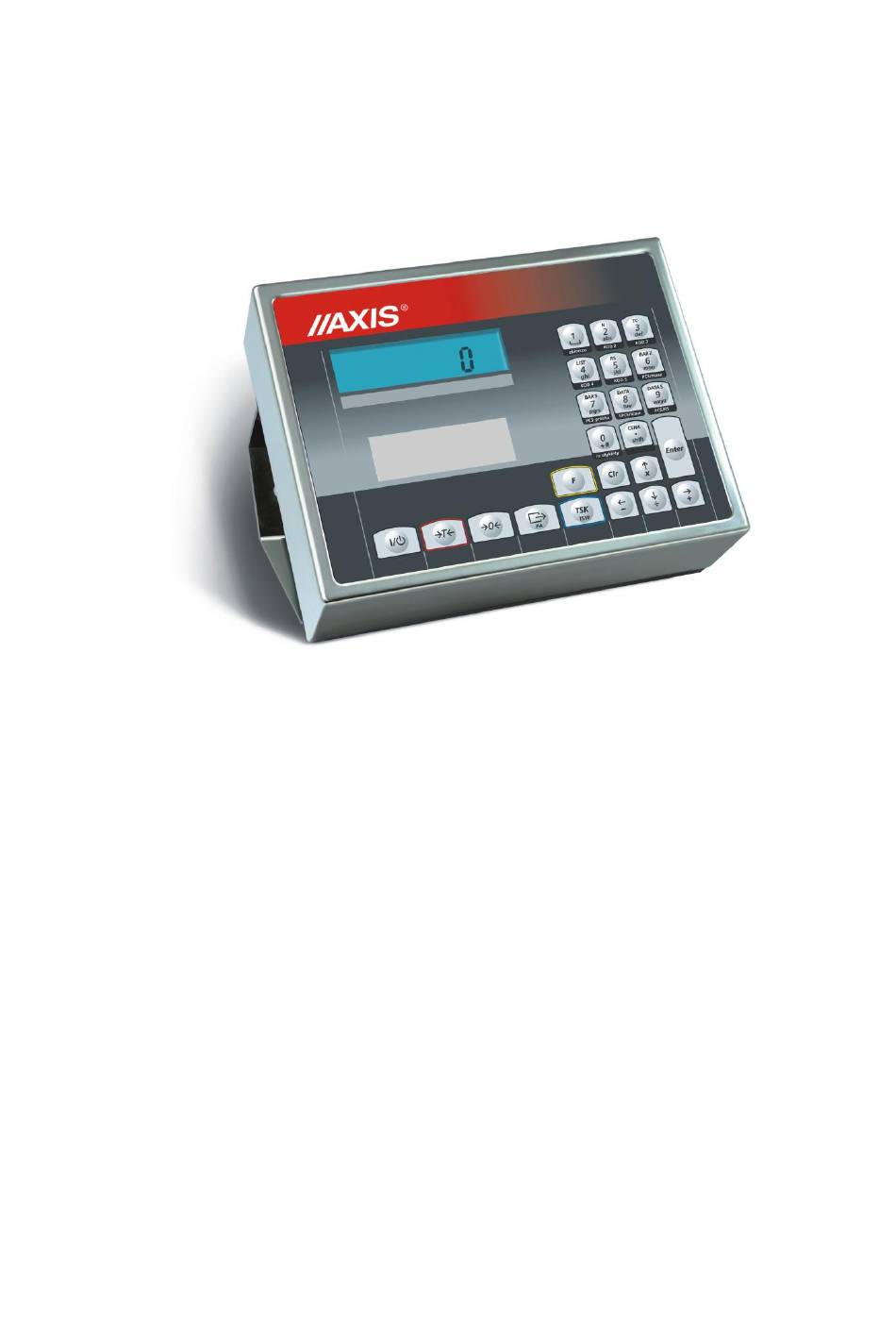

- Page 1 SE-03/N/LCD meter File 2016-04-08 DTR-SE03 nE0053 GB...
-
Page 2: Table Of Contents
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ TABLE OF CONTENTS 1. Introduction ........................... 3 2. Certificates ............................ 4 3. Completation ..........................5 4. Balance keys and indicators......................6 5. Technical data ..........................8 6. Balance preparation to work......................9 7. General operation principles ......................12 Label name entering...................... -
Page 3: Introduction

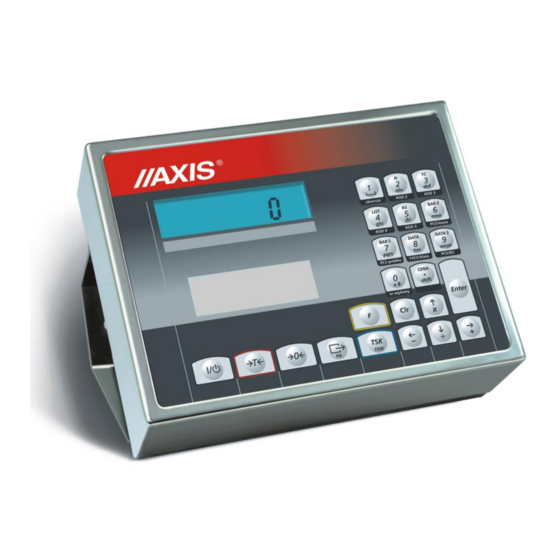

SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 1. Introduction SE-03 meter replaces standard meters produced by AXIS Sp. z o.o. in order to enhance their functionality with label printers produced by ZEBRA company, that use EPL-2 protocol. The meter has hermetic housing from stainless and acid-resistant steel sheet, LCD display with 14 mm digits. -
Page 4: Certificates
Quality management system ISO No. PL CB 1 DIN EN ISO 9001:2009 Upon the basis of above certificates, scales produced by AXIS with the use of SE-03 meter may obtain EC verification. Verified balances have the following verification features: - protective seals, located on the balance meter and in points preventing access to the balance interior. -
Page 5: Completation
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 3. Set The basic set includes: 1. Scale with SE-03 module (or separate module) 2. External PSU ZN12V/500mA (only in version with the external PSU) 3. Documentation 4. Warranty card On demand: 1. EPL label printer + label designing software Zebra Designer 2. -
Page 6: Balance Keys And Indicators
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 4. Balance keyboard Keys with single function - balance ON/OFF Enter - operation confirmation or object selection - exit (clear) - tare (subtracts package weight placed on balance) - balance zeroing (only when it is empty) - function key –... - Page 7 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ or 1 - cumulative label printing or digit 1 (during number entering) /(F) N / entering quantity of labels to printout with numeric keys CODE 2 or 2 - entering code 2 or digit 2 (number entering) / “constant”...
-
Page 8: Technical Data
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 5. Technical data Parameter Protection grade IP65 Max. number of legalization graduations 3000e Precision class Sensors supply 5V AC 25Hz Reading graduation (d) 1, 2, 5, 10, 20 (g, kg) Verification graduation (e) Operational temperature -10÷40 Tare set range full... -
Page 9: Balance Preparation To Work
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 6. Scale preparation to work 1. Assembling scale based on SE-03 meter should be ordered to authorized producer service, or performed according to meter assembly manual, supplied with the meter. Connecting tensomteric sensors to meter during scale work can damage the meter! Fulfilling of requirements connected with CE sign, requires application of filter cores during wires connecting, which are supplied with the module. - Page 10 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 3. In SE-03 meters connections are ended by joints or they should be connected to feeder board by using Z16A joint (TO – sending, RI – receiving) Feeder Z16A Main board Attention: Z4 and Z19 connection is crucial for the Z16A joint to be active. To connect scale’s RS232C to computer use WK-1 cable or special converter.
- Page 11 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ RS232C serial interface: 1. The basic connection for communication with external devices is RS1(RS232C-I) port, the second port RS2(RS232C-II) requires special version of balance software. 2. Meter in standard execution is equipped with conductors ended with male joint. Following signals layout is used: RS232C (to label printer) TxD (send)
-
Page 12: General Operation Principles
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 7. General operation principles 1. Each scale turning on causes autotests performing and balance zero entering, so the scale should be unloaded (it does not apply to the tank balances). 2. Full precision is obtained after 5 minutes from turning on. Until that moment weighing is possible, but the measurement error may be higher than allowed. -
Page 13: Label Name Entering
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ During normal balance operation it is not required to change its settings each time (even after turning off). Recalling label number from range 0-150 automatically recalls balance settings. Together with label name (0-150) balance memory stores data belonging to the label: - price, - bar code - expiration date... -
Page 14: Entering Number Of Printed Labels
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Caution: Printing of cumulative label of I level causes zeroing of summation registers of the current label: - number of weighed products with current name counter - sum of net weights for current label - sum of gross weights for current label Printing of cumulative label of II level causes zeroing of registries: - number of printed labels of I level counter... -
Page 15: User Functions Set (Fun-U)
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 7.4.1 User functions set (Fun-U) Each balance contains set of functions, which may be available for the user or not – according to the order. If no user functions are available, after recalling Fun-U the message “NO-F” will be displayed. -
Page 16: Option Of Selecting Data Transfer Mode To The Printer (Pola)
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Counting pieces with auxiliary balance (key 9) – option on demand Put sample of knows pieces number on the auxiliary balance. Press key 9/PCS/RS, the message will be displayed: „ PCS_S”. Enter pieces number in sample and press ENTER. ... -
Page 17: Setting Of Rs232 Port Operation Mode
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Operations sequence during function activation by the operator: 1. Press F key and the LIST key. 2. During displaying “tHr” press ENTER. 3. The display shows in sequence: F..-0 – function deactivation, F..-1 – function activation, F..-P –... -
Page 18: Constant Tare Deleting
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ ParIty - parity control allowance - not allowed - allowed - parity type selection (odd or even) - Even - Odd select option “Prot” (factory settings of RS232 port are restored). option exit with Out. Other options allow for port parameters change in case of balance cooperation with devices with different settings. -
Page 19: Entering Digits Of Constant Bar Code
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Constant digits of bar code are stored in the balance memory and remain unchanged until re- entering new number. Turning the balance off does not change the entered number as well. During the number storing the variable bar code is selected as active. Bar code type may be changed with LIST function. -
Page 20: Label Print
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Entering days of date offset: press F key (the display shows message “o” ) press 9/DATE E (the display shows message “dAYS”) using the numeric keyboard, enter number – max. 4 digits – offset days ... -
Page 21: Constant Tare Entering
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Printing mode selection: press F key (the display shows message “o” ) press /PA, the display shows the following: - PA-0 – manual printing - PA-1 – automatic printing press ENTER key during the desired mode displaying to select it. Sign “o”... -
Page 22: Additional Information
9. Additional information Before connecting SE-03 module to the label printer it is recommended to check the set data and parameters of module transmission, using the testing software (available on AXIS service site for free www.axis.pl). 10. Printer communication protocol in AUTO mode In AUTO mode meter sends successive information, indicated by the printer. -
Page 23: Labels Designing With Zebra Designer Software
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 11. Labels designing with ZEBRA DESIGNER software In order to print the label in cooperation with the balance it is required to store the label design (layout) in printer memory. Printer producer provides Zebra Designer software, along with necessary manual and English help free of charge. -
Page 24: Data Entering
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ 11.2 Data entering Label design must include all information, required later during printing: - constant texts, e.g. company header - texts (numbers) changing during printing: Caution:... - Page 25 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ In AUTO mode enter the name of appropriate variable (see section 10): In MANUAL mode data should be entered into label design in the following sequence (include only data from the data fields list – see function LIST/Pola): No.
-
Page 26: Saving Label Design In Balance Memory
The cumulative label should have name (number) higher of 1000, e.g. 1001.lbl. Caution: It is possible to perform trial printing, using the Serial port test software, available on www.axis.pl site, which simulates balance commands. 11.4 Label printing with printer connected to balance Before the first printing it is required to set all parameters in the balance, using keys: LIST, BAR or BAR C, DATA, DATA E, RS, N, PRICE and Label no. -
Page 27: Declaration Of Conformity
SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Declaration of Conformity The last two digits of the year in which the CE marking was affixed: 16 AXIS Spółka z o.oGdańsk, declares with full responsibility, that the balance: SE-03 marked with mark comply with the following: 1. - Page 28 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________ Notes...
- Page 29 SE-03 TECHNICAL AND USAGE DOCUMENTATION __________________________________________________________________________________________...
