MimioClarity
Technical
User's Guide

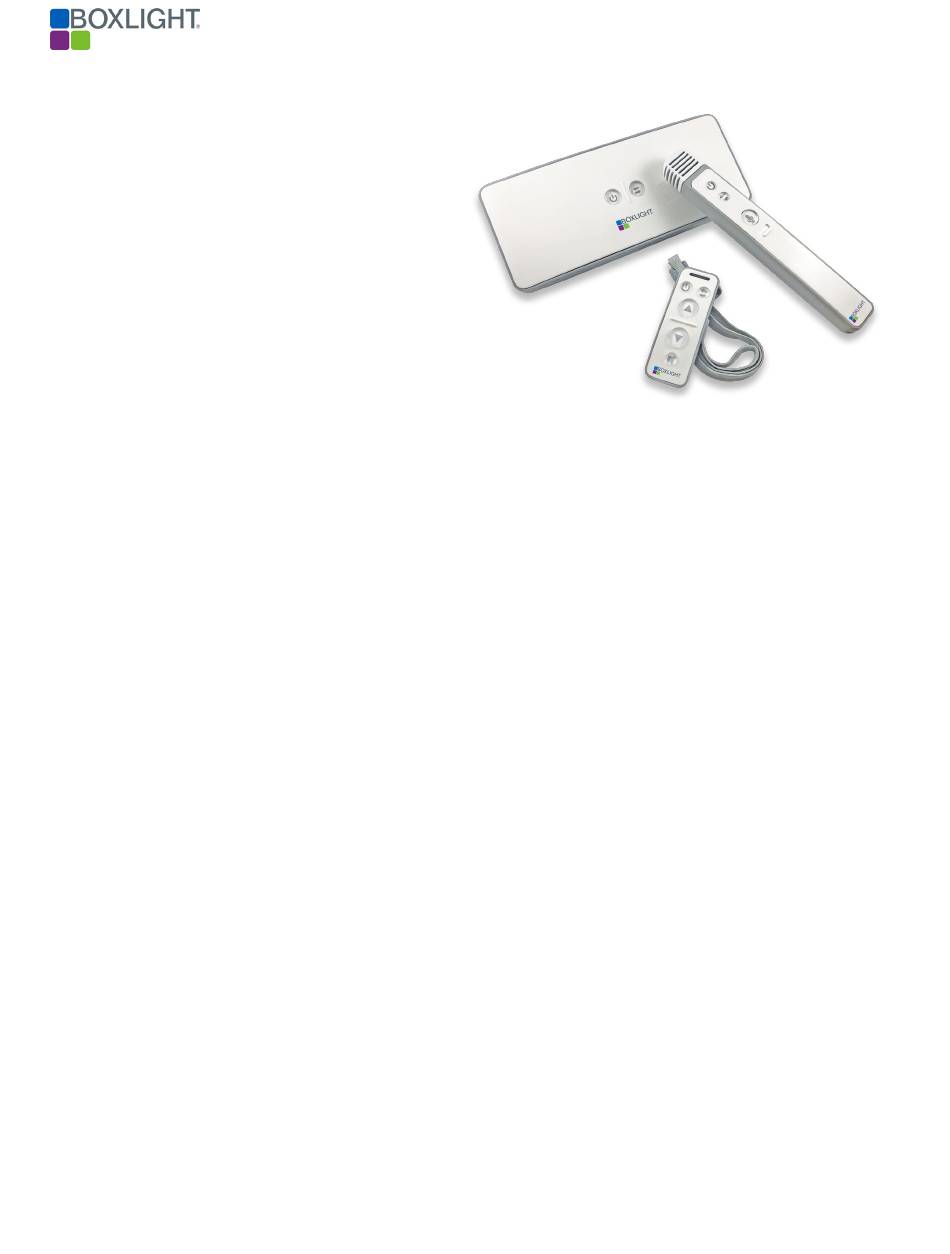

The MimioClarity is a standalone or networked
classroom audio distribution system that
shares teacher, student, and lesson media throughout the classroom. It is a multi-room, multi-microphone
system. The MimioClarity system will work with up to four (4) microphones in any combination of teacher
or student microphones. MimioClarity will also work with up to four (4) different amplifiers.
Key Terms
•
Paired – when the microphone is paired with the amplifier, the two devices have been
"introduced" and have agreed to pass data sound between them
•
Connected – once the microphone has been paired it must be connected to the amplifier
in the room where the sound is to be distributed, otherwise the microphone will broadcast
audio to each room it is paired with (up to 4 rooms can be paired with each microphone)
•
Press – press the button and release
•
Press and Hold – press the button and hold the button down
Page | 1
TM
