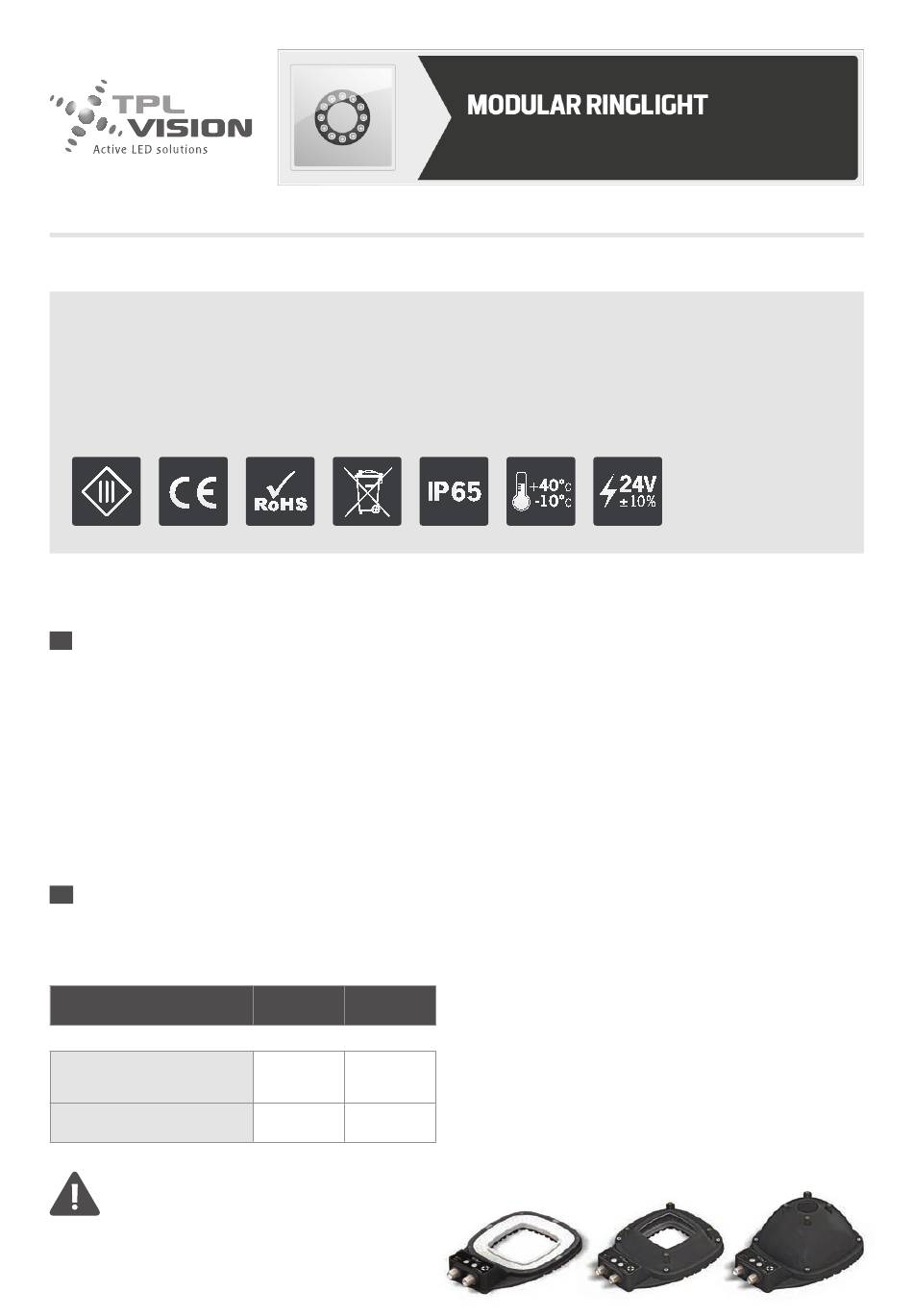

TPL VISION Ring 80 Technical User Manual

Modular ringlight

Advertisement

Quick Links

inTrodUcTion
This User Guide contains warnings and guidance for correct and safe operation of the product. These instructions
must be followed at all times. TPL Vision will not be held responsible for problems caused by using the product
contrary to these instructions and the Warranty will be deemed invalid.
Unpacking
This product is packed at the factory using suitable materials for safe transport. To open the package, do not use
any cutting blade to avoid damaging the product(s). Please use the delivered accessories if needed. (Do not use
any other products or equivalents to replace the delivered accessories). In the event of damage occurring during
shipping, it must be reported to the carrier at time of delivery (including noting the damage in writing on the deliv-
ery documents). It is also your responsibility to notify TPL Vision in writing of the damage within 24 hours of receipt
of the package. If these instructions are not followed, TPL Vision reserves the right not to accept requests for
return and exchange of damaged products.
risk class
The applicable Standard EN-62471 classifies LED Lighting into 4 groups (or classes) according to their degree of
hazard severity. The table below summarises the risks associated with our various standard products.
Colour
Red 625 nm, Cyan
505 nm, White WHI
IR 860 nm
BewaRe: infrared light is invisible to the eye.
Please refer to LED Indicators on the product
to determine if it is operating.
Class
Risk
0
none
1
low
Technical User gUide
TPL Vision can provide guidance notes to minimise
photo-biological risks, including the nominal mini-
mum operating distance. Please contact TPL Vision
through your usual representative for this information.
TPL Vision recommends the use of the protection
glasses that are listed in its catalog.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ring 80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TPL VISION Ring 80

  • Page 1 (including noting the damage in writing on the deliv- ery documents). It is also your responsibility to notify TPL Vision in writing of the damage within 24 hours of receipt of the package.
  • Page 2 Height RING LOw aNGLe (mm) (mm) (mm) (mm) (mm) (mm) Ring 80 Low Angle 80 34.75 Ring 130 Low Angle 130 45.25 * with connectors: 31 mm. Fixing During the set up, the light has to be switched off and unplugged.
  • Page 3: Led Indicators

    P3/12 led indicaTors Operating mode Strobe elecTrical connecTion M12 – 5 MaLe pINS M12 – 8 MaLe pINS n SeCtOR CONtROL n pOweR SuppLy n COLOR CONtROL n StROBe n OveRDRIve eNaBLING n DIMMING n LOCk keypaD...
  • Page 4: Remote Control

    Technical User gUide P4/12 CoNNECTIoN: M12 8 MaLe pINS CoNNECToR SeCtOR CONtROL COLOR CONtROL OveRDRIve eNaBLING LOCk keypaD remoTe conTrol (connecTion) active overdrive ➞ connect to 24VDC grey Change colours ➞ default colour: 1 (if not connected) ➞ colour 2 if connected to 24 VDC pink yellow blue...
  • Page 5: Strobe Mode

    P5/12 CoNNECTIoN: M12 5 MaLe pINS CoNNECToR pOweR SuppLy StROBe DIMMING M12 Connector 5 male pins STROBE STROBE grey + 24 V + 24 V DIM 0-10V black blue STROBE Ground Ground Dim 0-10V Dim 0-10V white brown STROBE + 24 V CONTINUOUS MODE : + 24 V...
  • Page 6 Technical User gUide P6/12 sTrobe Timing limiTs • Standard version • Overdrive version D max tmin t max D max tmin t max frequency frequency 100 % 5 µs 50 kHz 10 % 5 µs 2 ms 310 Hz [ D: duty cycle | t: pulse duration | CW: continuous working ] Don’t exceed 310 hz when strobing pNp/NpN in overdrive mode.
  • Page 7 P7/12 sTrobing The lighT via coloUr & secTor inpUT behavioUr To control the LED Colour and illuminated Sector, the PNP or NPN trigger signal should be enabled in addition to the Sector or Colour control signal(s). Timing diagrams below illustrate rise, fall and delay times. If PNP and sectors are connected to 24V and if you strobe colours, there can be some delays between the trigger signal and the LED current.
  • Page 8: Dimming Control

    Technical User gUide P8/12 dimming conTrol 100% Dimming between 0 & 10 v. With 0V applied to the Dimming pin, the product is at 100% of its lighting power. With 10V applied, it is reduced to 30% of lighting power. VOLTS power sUpply Operational voltage 24 V at the light input ( ±...
  • Page 9: Keypad Control

    P9/12 keypad conTrol The Modular Ringlight works in manual control and continuous working (CW) mode by default. To use the remote control, you need to connect the 8 pin cable and apply PNP signals to the relevant pins. The Modular Colour selection Ringlight has Teach and Run mode. Colour and Sector Selection •...
  • Page 10: Operating Conditions

    BIN sorting in the selection of LeDs for their products. Specifically for the Cyan series on this product, the human eye is very sensitive to colour variations. It may appear to the customer that they do not appear the same between two cyan LED products. Despite any noticeable differences, the peak wavelength variation does not exceed 10nm.
  • Page 11 P11/12 associaTed accessories M12 8 pins M12 5 pins Mounting Remote control Power supply 80mm & 130mm Ref: C-M12-8P-3M Ref: C-M12-5P-2M Ref: C-M12-8P-5M Ref: C-M12-5P-5M 10 m 10 m Ref: C-M12-8P-10M Ref: C-M12-5P-10M Ref: TPL-MoUNT-MR...
  • Page 12 TPL VISION Brenchley House, School Road I S O 9 0 0 1 Charing, Kent TN27 0JW IS AN United Kingdom CERTIFIED MANUFACTURER www.tpl-vision.com + 44 (0)1738 310 392 contact @ tpl-vision.co.uk...

This manual is also suitable for:

Ring 130Low angle 80Low angle 130Dome 80Dome 130
