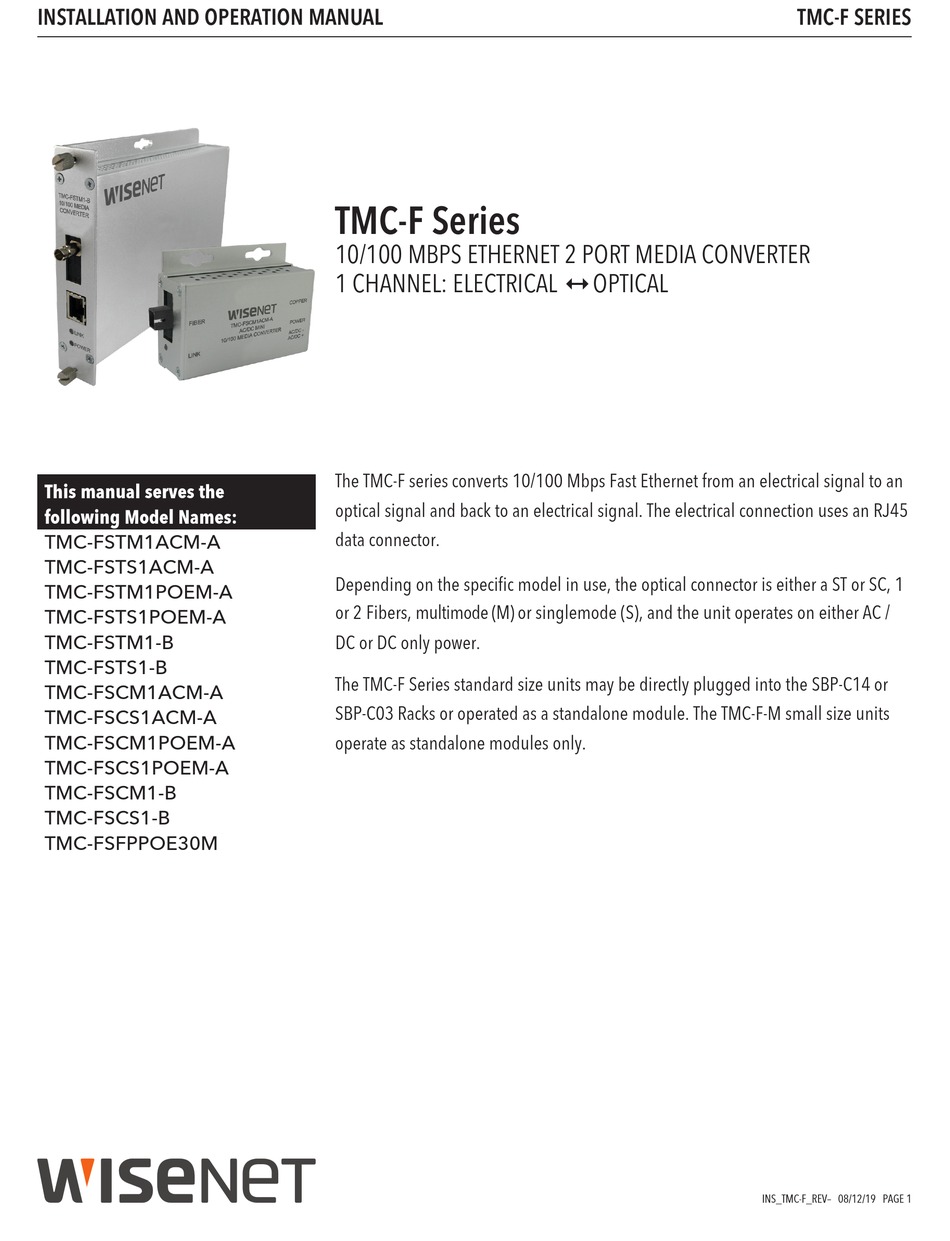

INSTALLATION AND OPERATION MANUAL
This manual serves the
following Model Names:
TMC-FSTM1ACM-A
TMC-FSTS1ACM-A
TMC-FSTM1POEM-A
TMC-FSTS1POEM-A
TMC-FSTM1-B
TMC-FSTS1-B
TMC-FSCM1ACM-A
TMC-FSCS1ACM-A
TMC-FSCM1POEM-A
TMC-FSCS1POEM-A
TMC-FSCM1-B
TMC-FSCS1-B
TMC-FSFPPOE30M
TMC-F Series
10/100 MBPS ETHERNET 2 PORT MEDIA CONVERTER
1 CHANNEL: ELECTRICAL
The TMC-F series converts 10/100 Mbps Fast Ethernet from an electrical signal to an
optical signal and back to an electrical signal. The electrical connection uses an RJ45
data connector.
Depending on the specific model in use, the optical connector is either a ST or SC, 1
or 2 Fibers, multimode (M) or singlemode (S), and the unit operates on either AC /
DC or DC only power.
The TMC-F Series standard size units may be directly plugged into the SBP-C14 or
SBP-C03 Racks or operated as a standalone module. The TMC-F-M small size units
operate as standalone modules only.
1
OPTICAL
TMC-F SERIES
INS_TMC-F_REV– 08/12/19 PAGE 1
