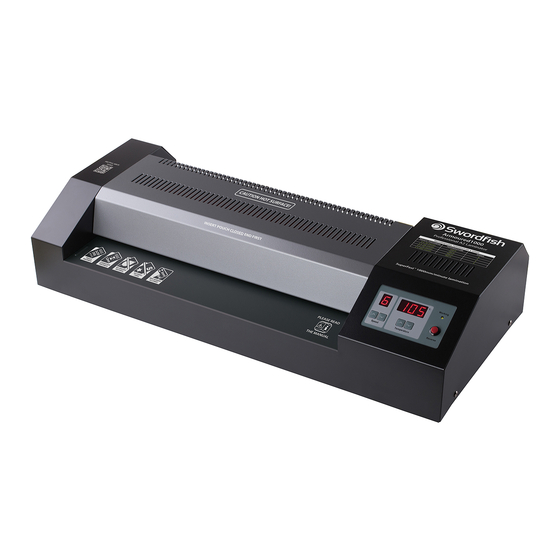

Armoured1000
Professional A2 Laminator
For Professional Use
Scan here to
download or view
these instructions
in other languages
Please read this manual completely before using your laminator as incorrect use
can cause serious damage.
Scan here to
watch a helpful
hints video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Armoured1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Swordfish Armoured1000

Summary of Contents for Swordfish Armoured1000

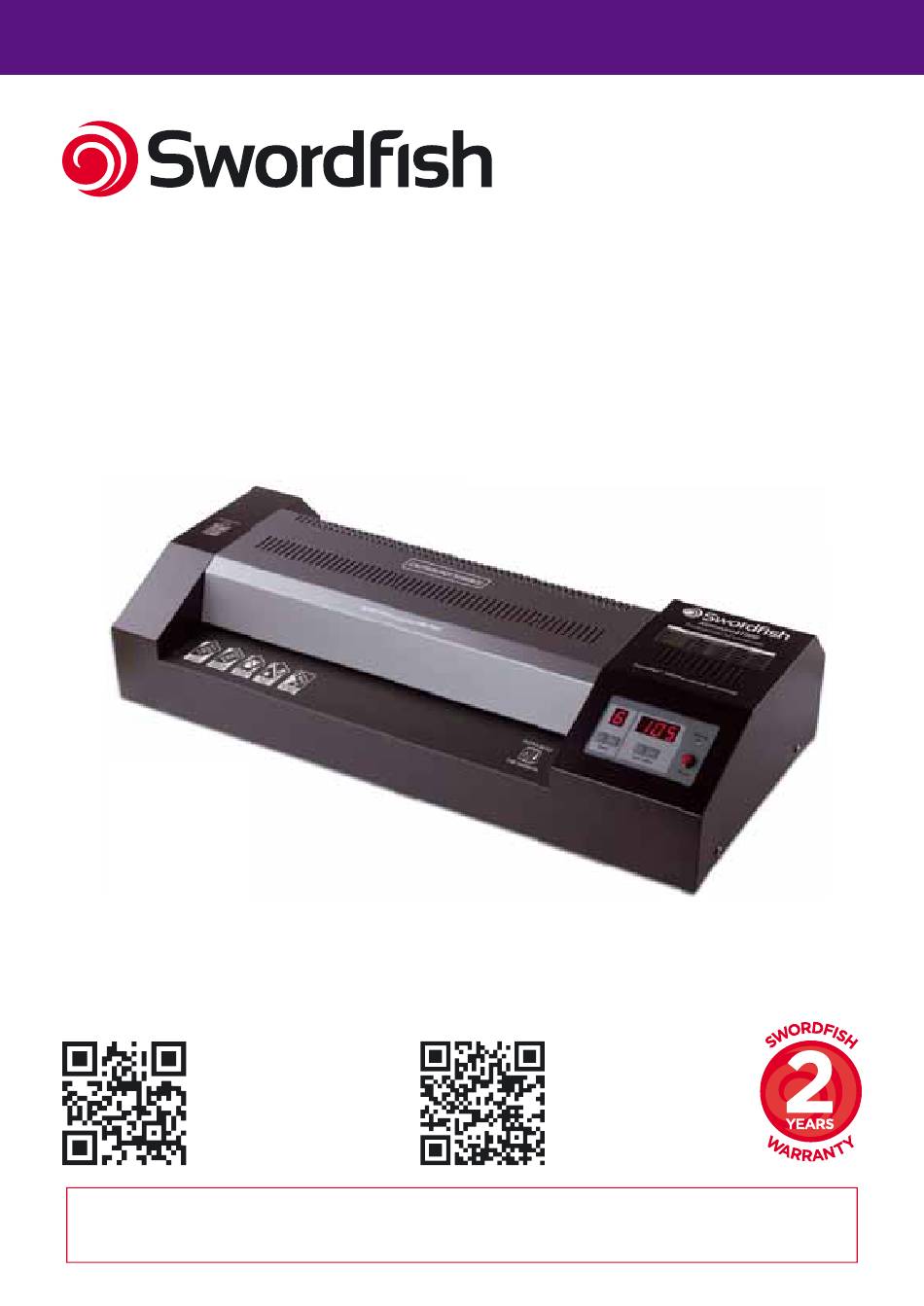

  • Page 1 Armoured1000 Professional A2 Laminator For Professional Use Scan here to Scan here to download or view watch a helpful these instructions hints video in other languages Please read this manual completely before using your laminator as incorrect use can cause serious damage.

  • Page 2: Safety Precautions

    Operating Instructions Safety Precautions Failure to comply with any of the following safety precations could result in serious injury, fi re or electric shock. This equipment is not intended for use by children. It is not a toy. Unauthorised attempts at repair will invalidate the warranty. Do not allow water, or damp media, to enter the laminator.

  • Page 3: Specifications

    Operating Instructions SPECIFICATIONS Suitability Small Offi ce & Offi ce What makes it special? SuperFast speed, heavy duty Swordfi sh UK Product Code 40350 Maximum Paper Size Colour Black/Dark Silver Feed Entry Width (mm) 450mm Maximum Pouch Thickness 2 x 250 [500] Microns Maximum Pouch Thickness 1.2mm Total (mm)
  • Page 4 Operating Instructions The READY light illuminates when the set temperature is reached Increase/Decrease Increase/Decrease Reverse Speed Temperature Button www.snopakebrands.com...
  • Page 5 Operating Instructions Please read this manual completely before using your laminator as incorrect use can cause serious damage. Failure to follow the instructions in this manual could invalidate your warranty! Quick Start Guide Position the laminator on a suitable fl at surface, within easy reach of a 13Amp socket, ensuring that there is suffi cient space behind the machine for the laminations to lay fl at.

  • Page 6: Getting Started

    Operating Instructions Getting Started The Swordfi sh Armoured1000 A2 laminator is a rugged steel-cased professional laminator that off ers both variable speed and variable temperature. It is equipped with sophisticated digital temperature control, massive 44mm precision rollers and a steel cooling plate – all of which combine to give perfect laminations.

  • Page 7: Operation

    Operating Instructions Operation Connect the laminator to the 13Amp socket and turn the isolating switch on the rear of the machine to the “on” position. The motor and cooling fans will run and the machine will begin to warm up. CAUTION Do not leave the laminator unattended during lamination.
  • Page 8 A cardboard carrier will absorb some of the heat so you may need to adjust the temperature or speed settings accordingly. Swordfish Armoured pouch carriers are made from PTFE-coated micro-fine woven fibreglass and will require little or no temperature adjustment.
  • Page 9 Operating Instructions The laminated item will be transported out of the laminator automatically. CAUTION • Do not try to pull the pouch out by force. This may result in creases or curves in the laminated item and may damage the laminator. •...

  • Page 10: Essential Information

    Operating Instructions Essential Information • Never insert a pouch until the previous lamination has been removed from the machine. Failure to do so could cause a jam. • The maximum capacity of this machine (pouch + contents) is 1.2mm. • Should a miss-feed or jam occur, press the “reverse button” to eject the pouch. Cold Lamination The majority of lamination is done using pouches that are coated with adhesive that melts at high temperature.

  • Page 11: Troubleshooting

    Operating Instructions Knurled Screw x2 at the rear Cleaning The outer case of the machine may be wiped clean with a moist cloth. Do not allow water to spill inside the laminator – risk of electric shock. IMPORTANT Do not use aerosol cleaners – or any other aerosol product – on, or near, this machine (or any other electrical appliance) as the propellant may be flammable.
  • Page 12 Have you seen the rest of the Swordfi sh range? Pencil Sharpeners The Triple Pointi VariPoint Paper Shredders Paper Trimmers SlimLine 800XC Series A4, A3 1200XXCD Elite Series A3/A2 To fi nd out more information on the full range of products, www.snopakebrands.com visit us at www.snopakebrands.com...
