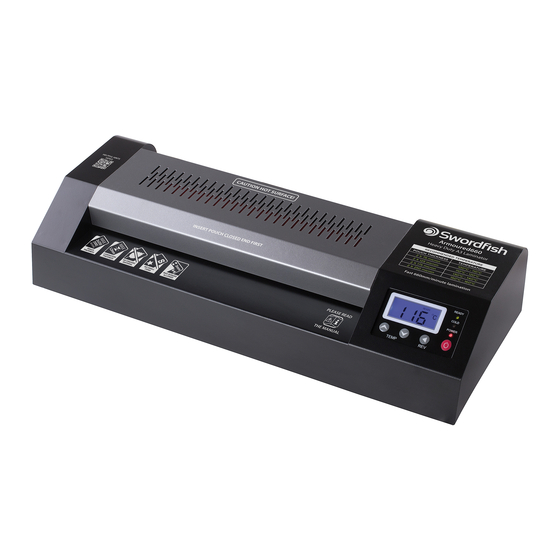

- Page 1 Armoured660 Heavy Duty A3 & A2 Laminators For Professional Use Scan here to Scan here to download or view watch a helpful these instructions hints video in other languages Please read this manual completely before using your laminator as incorrect use...
-
Page 2: Safety Precautions
Operating Instructions Safety Precautions Failure to comply with any of the following safety precations could result in serious injury, fi re or electric shock. This equipment is not intended for use by children. It is not a toy. Unauthorised attempts at repair will invalidate the warranty. Do not allow water, or damp media, to enter the laminator. -
Page 3: Specifications
Operating Instructions SPECIFICATIONS Suitability Small Offi ce & Offi ce What makes it special? High speed, heavy duty Swordfi sh UK Product Code A3 - 40352 / A2 - 40351 Maximum Paper Size A3 / A2 Colour Black/Dark Silver Feed Entry Width (mm) A3 - 320mm / A2 - 450mm Maximum Pouch Thickness 2 x 250 [500] Microns... - Page 4 Operating Instructions SET will appear when the desired temperature is selected READY will fl ash whilst warming or cooling The READY light illuminates when the set temperature READY is reached READY COLD The COLD light illuminates when ready for cold lamination POWER The POWER light indicates that the machine is operational...
- Page 5 Operating Instructions Please read this manual completely before using your laminator as incorrect use can cause serious damage. Failure to follow the instructions in this manual could invalidate your warranty! Quick Start Guide Position the laminator on a suitable fl at surface, within easy reach of a 13Amp socket, ensuring that there is suffi cient space behind the machine for the laminations to lay fl at.
-
Page 6: Getting Started
Operating Instructions Getting Started The Swordfi sh Armoured660 laminators A2 and A3 are steel-cased, heavy-duty, variable temperature machines. They are equipped with sophisticated temperature control, large 25.6mm precision rollers and a steel cooling plate – all of which combine to give perfect laminations. -
Page 7: Operation
Operating Instructions Operation Connect the laminator to the 13Amp socket and turn the isolating switch on the rear of the machine to the “on” position. Press the “Hot/Cold/Off ” button on the front of the machine and the laminator will start to run. - Page 8 A cardboard carrier will absorb some of the heat so you may need to adjust the temperature settings accordingly. Swordfish Armoured pouch carriers are made from PTFE-coated micro-fine woven fibreglass and will require little or no temperature adjustment. Note that the maximum thickness of carrier + pouch + contents MUST NOT EXCEED 1.0mm.
- Page 9 Operating Instructions The laminated item will be transported out of the laminator automatically. CAUTION • Do not try to pull the pouch out by force. This may result in creases or curves in the laminated item and may damage the laminator. •...
-
Page 10: Essential Information
Operating Instructions Essential Information • Never insert a pouch until the previous lamination has been removed from the machine. Failure to do so could cause a jam. • The maximum capacity of this machine (pouch + contents) is 1.0mm. • Should a miss-feed or jam occur, press the “reverse button” to eject the pouch. Cold Lamination The majority of lamination is done using pouches that are coated with adhesive that melts at high temperature. -
Page 11: Troubleshooting
Operating Instructions Cleaning The outer case of the machine may be wiped clean with a moist cloth. Do not allow water to spill inside the laminator – risk of electric shock. IMPORTANT Do not use aerosol cleaners – or any other aerosol product – on, or near, this machine (or any other electrical appliance) as the propellant may be flammable. - Page 12 Have you seen the rest of the Swordfi sh range? Pencil Sharpeners The Triple Pointi VariPoint Paper Shredders Paper Trimmers SlimLine 800XC Series A4, A3 1200XXCD Elite Series A3/A2 To fi nd out more information on the full range of products, www.snopakebrands.com visit us at www.snopakebrands.com...
