  • Page 1 LANtest PoE user manual Multi-Network PoE Cable Tester...
  • Page 2: Table Of Contents

    LANtest PoE Introduction Features Test Equipment Overview Operation 1. PoE (Power over Ethernet) test 2. Loopback test A. 258A, TIA-568A/568B cable test B. Modular cable test C. 10Base-2 cable test 3. Remote test Test Result Warning Warranty...
  • Page 3: Lantest Poe Introduction

    LANtest PoE is a newly designed and very practical tester that can easily read the correct pin configuration of RJ45/RJ11 modular cables, 258A, TIA-568A/568B and Token Ring cable by comparing transmitting end to the corresponding receiving end. With the remote unit, it can test installed cables behind walls via wall plates or patch panels.
  • Page 4: Test Equipment Overview

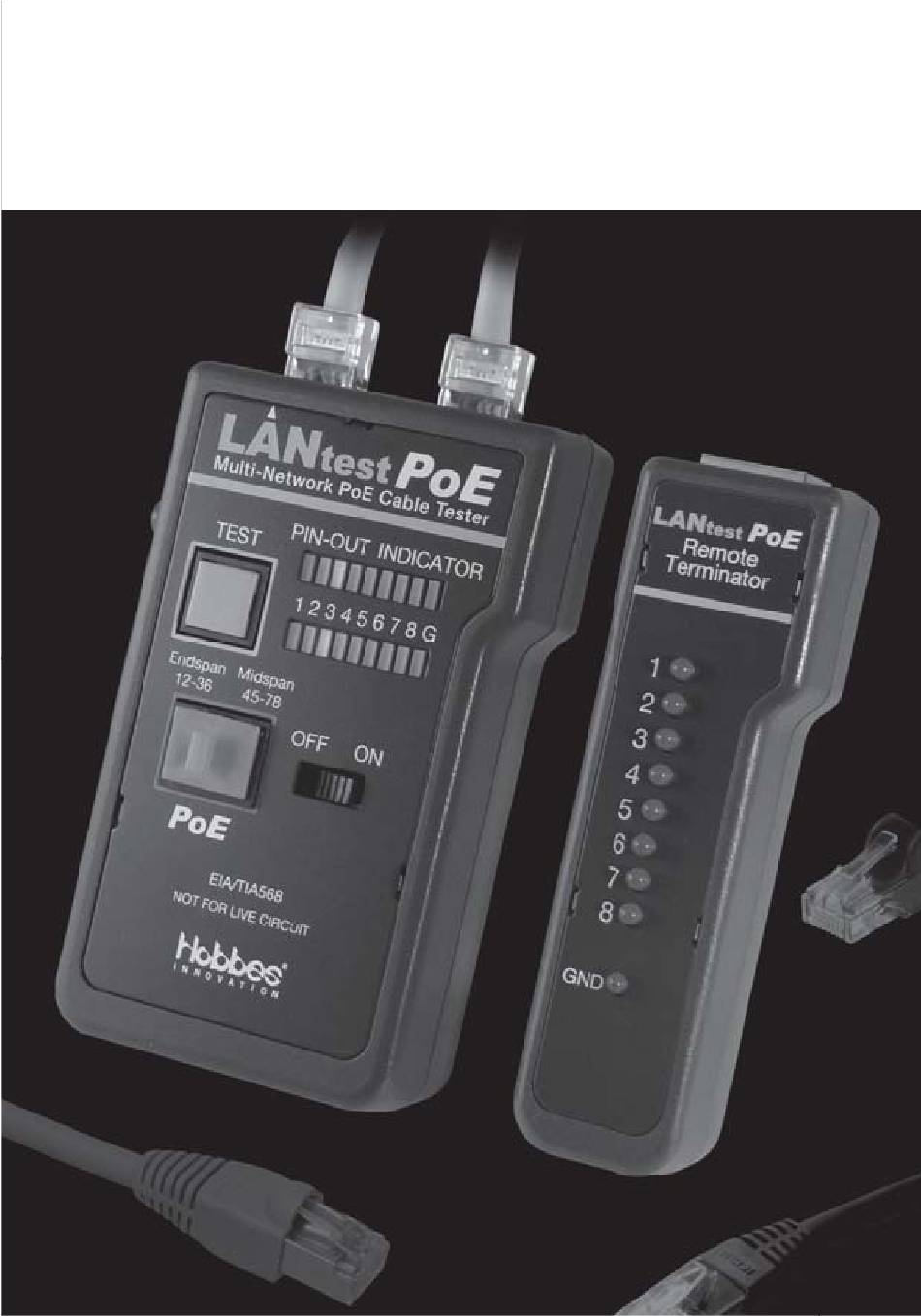

    • With the remote unit, it can test installed cables behind walls via wall plates or patch panels. • Features auto or manual scan. Test Equipment Overview test Remote Terminator...
  • Page 5 1. RJ45 jack 2. RJ45 jack 3. LED display for sourcing end (Jack 1) 4. LED display for receiving end (Jack 2) 5. Power switch 6. LED scanning mode switch 7. Test switch for manual scan 8. RJ45 jack for PoE test 9.
  • Page 6: Operation

    Operation 1. PoE (Power over Ethernet) test Connect the PoE RJ45 jack via network cable. In one second, the LEDs will indicate the standard PoE voltage if detected. It will display the voltage detected on pair 12-36, or 45-78. If an unsolicited voltage above 24VDC detected on the network, the PoE LEDs will immediately light “on”...
  • Page 7: Loopback Test

    2. Loopback test A. 258A, TIA-568A/568B cable test A1. Plug one end of the cable being tested on the RJ45 sourcing jack (Marked with ) and another end of the cable being tested on the remaining receiving RJ45 jack. A2. Slide power switch on, the upper row LEDs will start to scan in sequence if the LED scanning mode switch is press on Auto mode, or the LED will light on pin 1 if the scanning switch is release...
  • Page 8 A3. Operate the LED scanning mode by pressing the Auto/Manual switch. A4. In this moment the corresponding LED indicators of another row of LED will light up simultaneously. A5. LED displays the result of the pin configuration for the cable being tested. If you fail to read the result in the first run of LED scan, you may read it again in the next run of LED scan, or use the manual mode and press the test switch to scan each pin manually...
  • Page 9: Modular Cable Test

    B. Modular cable test Please follow the procedure of 258A, TIA-568A/568B cable test. However, the LED display should be read as below. RJ11 1 2 3 4 5 6 1 2 3 4 5 6 7 8 G RJ45...
  • Page 10: 10Base-2 Cable Test

    C. 10Base-2 cable test C1. Plug the attached two BNC adaptor cables on both RJ45 jacks, then connect both ends of tested cables on BNC adaptor cables. C2. As to the remaining procedures you may refer to 258A, TIA-568A/568B cable test from step A2 to A5. Note: The center pin of BNC should be read on LED 1 and shielding pin of BNC should be read on LED 2.
  • Page 11: Remote Test

    3. Remote test A. Plug one end of tested cable on the RJ45 sourcing jack (Marked with ) of main unit and another end on the receiving RJ45 jack of the remote unit. If the cable being tested is already installed on the patch panel or wall plate, you may use the adaptor cable to solve the connector gender problem.
  • Page 12: Test Result

    Test Result 1. Continuity: 1 2 3 4 5 6 7 8 G Pin 2 is continued. 2. Open: 1 2 3 4 5 6 7 8 G Pin 2 is opened. 3. Short: 1 2 3 4 5 6 7 8 G Pin 2 and pin 3 are shorted.
  • Page 13: Warning

    The device is guaranteed for two years after completing the registration procedure from the date of original sale in Hobbes Group web site. The manufacturer will repair the device free of charge if manufacturer determines the product failed due to manufacture defect.
