Hobbes HDMIMAPPERE-852 User Manual

Wire map cable tester

Advertisement

Quick Links

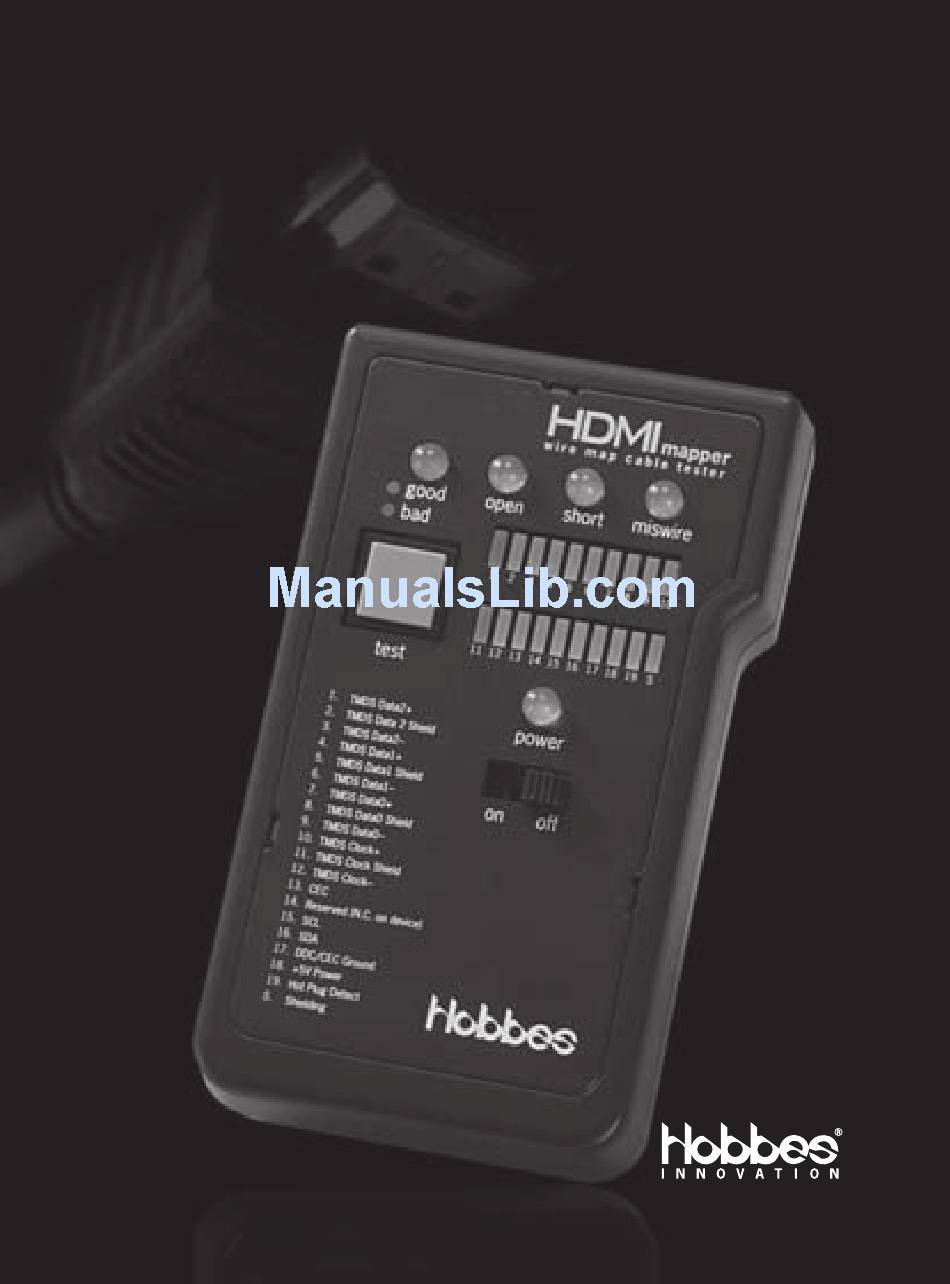

HDMImapper
wire map cable tester
user manual
Model No. E-852

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDMIMAPPERE-852 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hobbes HDMIMAPPERE-852

  • Page 1 HDMImapper wire map cable tester user manual Model No. E-852...
  • Page 2 Introduction Product Description Features Specifications Instruction for operation Remarks Warranty Information...
  • Page 10 Instruction For Operation • To test and troubleshoot 19 pin and shielding connections of the HDMI cable, plug both ends of the cable to be tested into the unit’s two HDMI connections.
  • Page 11 • Press the “test” button once, then the unit begins to test the cable pin to pin status. a.If the cable is ok, the good/bad LED will be lit in green and a single beep “Bi-” will sound. b.If the cable is bad, the good/bad LED will be lit in red and 3 consecutive beep “Bi-Bi-Bi”...
  • Page 13 • Test Results green (good) red (bad) a.Open: Press “test” button once again, the LED bar will illuminate in red color to indicate which pins are open. Note: PIN 2, 5 are opened.
  • Page 14 b.Short: green (good) red (bad) Press “test” button once again, the LED bar will illuminate in red color to indicate which pins are shorted. Note: PIN 8, 10 are shorted.
