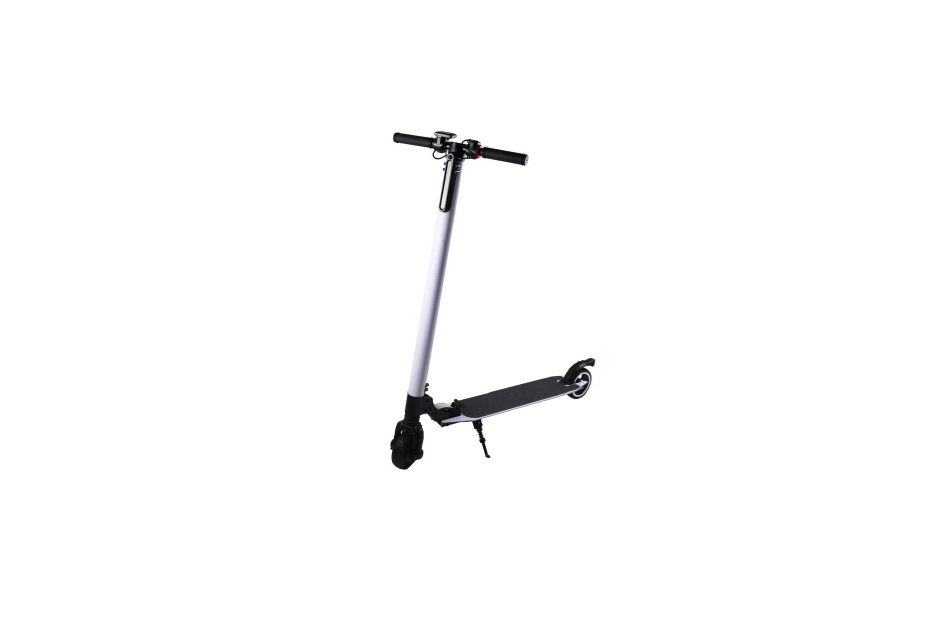

Flowboard Air Aluminium
Genuine operating instruction / Originalbetriebsanleitung / Manuel d'utilisation original /
Istruzioni d'uso originali
Instrucion for medels / Anleitung für Modelle / Description des modèles / Instrutioni per i modelli
Flowboard Air Aluminium
Version 1.1.3, 21.04.2018
