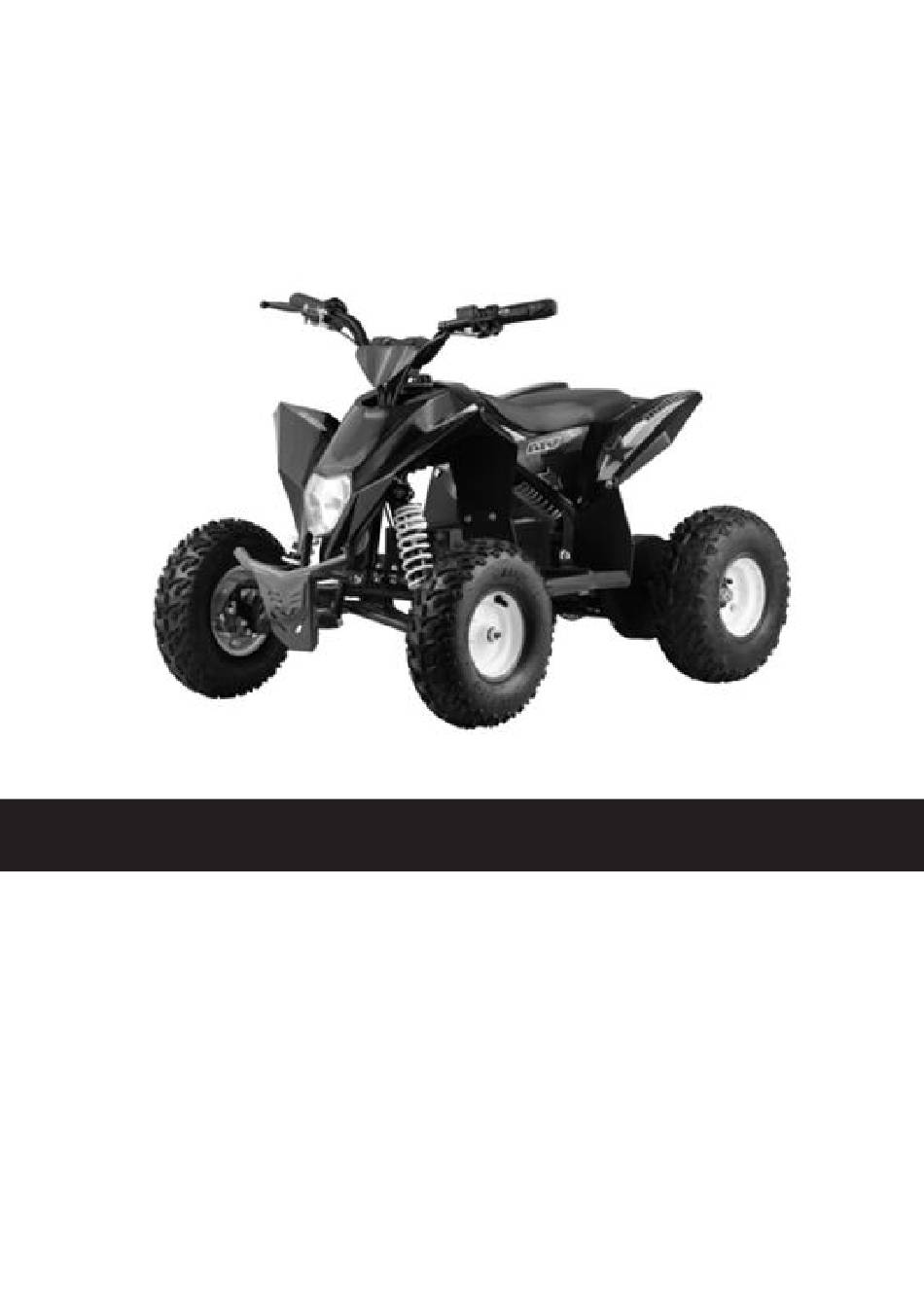

ELECTRIC MINI ATV
OWNER'S MANUAL
Read and understand this entire manual before using!
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
OFF ROAD USE ONLY!!!
NEVER OPERATE THIS VEHICLE IF YOU ARE UNDER
AGE 12!!!
- 1 -
Advertisement
Table of Contents
Related Manuals for ATV ELECTRIC MINI
Summary of Contents for ATV ELECTRIC MINI
- Page 1 ELECTRIC MINI ATV OWNER’S MANUAL Read and understand this entire manual before using! NOTE: Manual illustrations are for demonstration purposes only. Illustrations may not reflect exact appearance of actual product. Specifications subject to change without notice. OFF ROAD USE ONLY!!!
-
Page 2: Safety Warnings
This manual contains important safety information and use tips to help you and your child operate and handle the mini ATV. Carefully read the manual in its entirely together with your child before letting your child ride it for first time. The manual also contains important information on servicing the vehicle. - Page 3 Do not ride your mini ATV in any areas where pedestrian or vehicle traffic is present. Do not activate the speed control on the hand grip unless you are on the MINI ATV and in a safe, outdoor environment suitable for riding.
- Page 4 A long-sleeved shirt, long pants and gloves are recommended. Always wear athletic shoes, never drive barefooted or in sandals, and keep shoelaces tied and out of the way of the wheels, motor and drive system. USING THE CHARGER The charger supplier with the vehicle should be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such a damage, the bike must mot be charged until the charger has been repaired or replaced.
- Page 5 Sticker A is located on the left front fender. Sticker B is located on the right front fender - 5 -...
- Page 6 Sticker C is located on the right front fender Sticker D is located in the chain cover Sticker E is located on the rear swing arm - 6 -...
-
Page 7: Before You Begin
LOCATION OF PIN PIN is stamp marked on an aluminum plate that is riveted on the rear swing arm PIN means the Product Identify Number which is unique for each unit. BEFORE YOU BEGIN Remove contents from box. Remove the foam separators that protect the components from damage during shipping. - Page 8 ASSEMLY REAR WHEEL A: Nut M16 1pc B: WasherΦ16.5*30*3 1pc C: Rear wheel D: split pin 2pcs E: Rear axle 1. Fix the wheel(C) through the axle. 2. Mount the spring washer (B) and then tighten the nut (A) securely with 24mm open end wrench.
- Page 9 ASSEBMLY TIE ROD A :Bolt M8*30 2pcs B: Spring waher Φ8 2pcs C: Tie rod left and right 2pcs D: Waher Φ8 2pcs E: Nut N8 2pcs 1. Align the hole of tie Spring waher (B), tie rod end ball (C), Waher (D) in sequence. 2.
-
Page 10: Inflating The Tires
ASSEMBLY HANDLEBAR WARNING: Failing to properly adjust and tighten the bolts that affix the handlebars can cause you to lose control and crash. A: Bolt M8×50 4pcs B: Upper Clamp C: Bottom Clamp D: handlebar cover E: Handle bar 1. Put the bottom clamp(C) on the steering rod plate with the screw hole in alignment, and place the handlebar (E) in the bottom clamp, then cover the upper clamp (B) on the... - Page 11 Tire inflating pressure It is very important to keep the tire in proper pressure and check the tire pressure before use. The inflating should be done while the tire is cold. Tire maintenance Tire tread depth should be checked regularly.( Shallower tread means less grip of tire). You must stop to use the vehicle if the tire is pierced, disassemble the tire and check it carefully.
-
Page 12: Sleep Mode
ON position, however, the throttle power supply is shut off and you can not drive the ATV. You need to turn off the key switch and turn it on again to re-connect the power supply... - Page 13 OPTIONAL PART 2---REMOTE CONTROL The remote control unit ( No.1 in above picture) is located under the seat, and the switch Stop the motor: press the button ( No.3 in above picture) Start the motor: quickly press the button 2 times ( No.2 in above picture) Caution: The remote control works effectively within 30 meters only.
-
Page 14: Technical Specification Sheet
TECHNICAL SPECIFICATION SHEET Motor type 1 1000W 36V Motor type 2 1300W 48V MAX. Power output 1000W36V 1.88KW/1500RPM MAX. Power output 1300W48V 3.30KW/1520RPM Max torque (1000W motor) 10.2Nm /1500RPM Max torque (1300W motor) 18.5 Nm/1520RPM 3 x 12V 12A lead acid battery for 36V 1000W Battery 48V10A / 48V 13A lithium battery for 48V1300W Charger INPUT for 36V lead acid battery... - Page 15 PRODUCT MAIN PART DIAGRAM 1. handlebar cover 2. rear brake lever 3. electricity volume 4. throttle 5. front brake lever 6. rear wheel & tire 7. front swing arm 8. bumper 9. front wheel & tire 10.front lamp 11. ignition switch - 15 -...
- Page 16 12. Forward - Off - Reverse gear switch 13. plastic body 14. rear lamp 15. chain cover 16. rear brake caliper 17. right footrest 18. front shock absorber 19. fuse box 20. battery 21. seat 22. rear rack 23. rear shock absorber 24.
-
Page 17: Before Riding
BEFORE RIDING Charging the Battery Your electric mini ATV may not have a fully charged battery; therefore it is a good idea to charge the battery prior to use. · Initial charge time: 12 hours · Run time: up to 45minutes ·... -
Page 18: Adjusting The Brake
The mini quad is with 2 front brake and 1 rear brake. WARNING: The brake is capable of causing the electric mini quad to skid the tire throwing an unsuspecting rider. Practice in an open area free from obstacles until you are familiar with the brake function. -
Page 19: Adjusting The Chain
Adjusting the chain 1 . loosen the 4pcs nut (B) 2 . loosen the screw (A) and press the plastic buckle to remove the chain cover. 3 . loosen the chain adjuster nut (C), adjust the chain properly ( refer to the standard: chain can move freely up and down about 4mm), then fasten the nut (C) and (B) -
Page 20: Battery Care And Disposal
The chain will typically have a “loose spot” and “tight spot” corresponding with a particular sprocket rotational position. This is normal and common to all chain-driven vehicles due to run-out tolerances of the freewheel and sprocket. Proper chain alignment must be maintained. If the chain is noisy or rough running, check the lubrication, tension and alignment of the sprockets, in that order. -
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible cause Solution Charge the battery. A new battery should have been charged for at least 12 hours before using the vehicle for the first time and up to 8 hours after each subsequent use. Undercharged battery. Check all connectors. - Page 22 Driving conditions Use only on solid, flat clean and dry Surfaces such as pavement or stressful. level ground. The tires are inflated when shipped, but They invariably will lose Tires are not properly Inflated. some pressure Between the point of manufacturing and your purchase.
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM - 23 -... - Page 24 Please read the owner’s manual before riding. Never operate this vehicle if you are under age 12. Never use the vehicle on public road. OFF ROAD use only. Never ride with a passenger Always use an approved helmet and protective gear NEVER use with drugs or alcohol Cold tire pressure.
