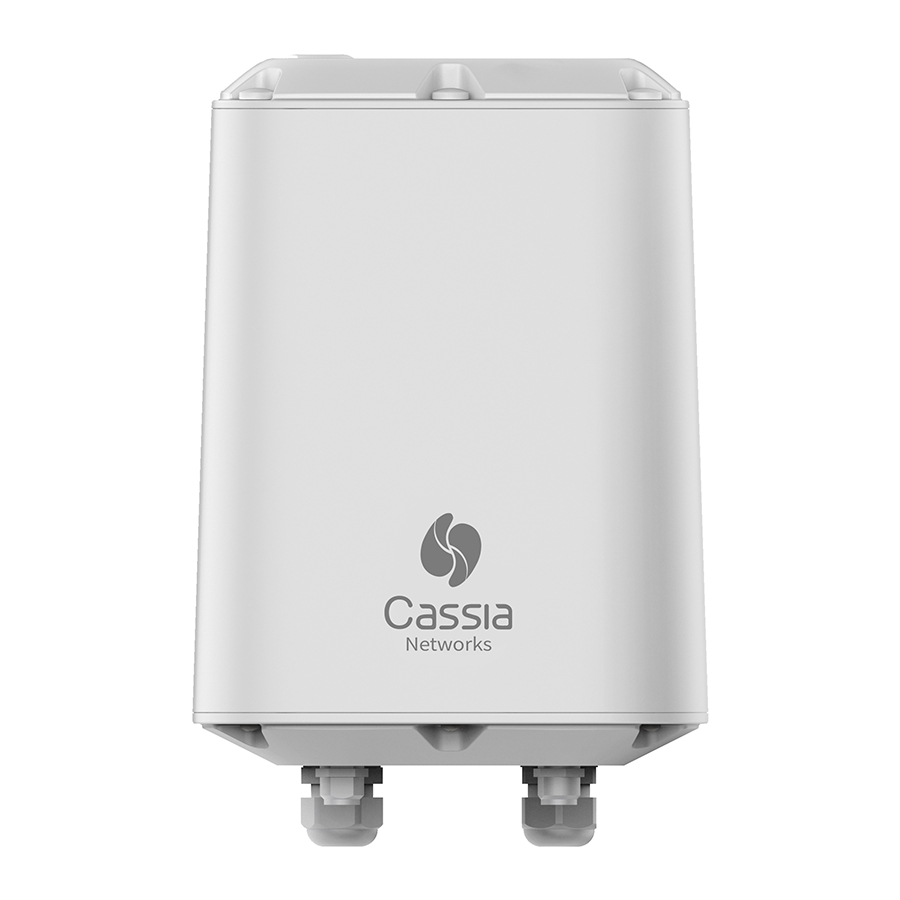

CASSIA X2000 Bluetooth Router
QUICK START GUIDE
Copyright © 2021 Cassia Networks, Inc. Cassia Networks and the
Cassia Networks logo are trademarks of Cassia Networks, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cassia X2000

  • Page 1 CASSIA X2000 Bluetooth Router QUICK START GUIDE Copyright © 2021 Cassia Networks, Inc. Cassia Networks and the Cassia Networks logo are trademarks of Cassia Networks, Inc.
  • Page 2: Included In Package

    GETTING STARTED - ENGLISH I. INCLUDED IN PACKAGE 1. X2000 Router (1) 2. Pole Mounting Straps (2) 3. Extra Top Screw Covers (2) 4. Cable Glands (2) 5. USB Hole Silicone Plug (1) 6. Mounting Bracket (1) 7. Slotted Screwdriver (1) 8.
  • Page 3 II. HEAD & BASE Not used USB 2.0 Ethernet and PoE Reset 12V DC RESET ETH/PoE DC 12V LED Lights WiFi SYS PWR Ground Cable Opt. external Bluetooth antenna connectors...
  • Page 4: Mounting And Installation

    III. MOUNTING & INSTALLATION Please select the corresponding steps according to your router configurations. 1) Install USB Cellular modem inside X2000 Step 1:Remove the top screw cover Step 2:Use cross screwdriver to open the top cap top screw cover Step 3: Connect USB cellular modem...
  • Page 5 2) Install USB Cellular modem outside X2000 Step 1:Open the top cap Step 2:Use slotted screwdriver to remove the USB hole plug (M20X1.5. Please don’t mix with the ETH/PoE plug) Remove Step 3: Connect USB cable to USB Step 4: Pass the USB cable through the USB...
  • Page 6 3) Mount the X2000 mounting bracket in a vertical orientation onto a wall or pole with the supplied mounting kit NOTE: The side of the mounting bracket facing the wall and pole is sharp. Please don’t hurt your hands. Pole Mount...
  • Page 7 Ethernet cable through the cable gland, insert the RJ-45 connector into the Ethernet port of X2000, and tighten the cable gland in the order of a, b, c. The torque of step c should be less than the torque of step a.
  • Page 8 6) Connect 12V DC power cable and cable gland to X2000 in the same way as step 5 DC power adapter DC 12V 7) For outdoor X2000 installations, please connect the ground cable to ensure X2000’s safety RESET ETH/PoE DC 12V...
  • Page 9 1) Setup using Wi-Fi Hotspot The Cassia Bluetooth router provides a Wi-Fi hotspot for initial setup. Its SSID is cassia-xxxxxx. The xxxxxx is the last 6-digits of router MAC ID. The default password of the Wi-Fi hotspot is the same as SSID.
  • Page 10: Product Interface

    V. PRODUCT INTERFACE Bluetooth Low Energy: 4.0/4.1/4.2/5.0 Wi-Fi: 802.11 a/b/g/n/ac, 2.4GHz and 5GHz ISM band Ethernet: 10/100 Base-T USB 2.0: supports USB cellular modem Opt. external Bluetooth antenna connectors: 50 Ohm N type female connector Reset button: Factory reset.Please remove the reset plug (M12X1.5) first LED lights: BT/AC/4G/Wi-Fi/Ethernet/System/Power VI.
  • Page 11: Federal Communications Commission (Fcc) Interference Statement

    End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. X. EU Regulatory Conformance Cassia Networks Inc., hereby declares that Cassia X2000 Series Bluetooth Router is in compliance with directives listed below: EMC Directive 2014/30/EU...
  • Page 13: Guide De Démarrage Rapide

    Routeur Bluetooth CASSIA X2000 GUIDE DE DÉMARRAGE RAPIDE Copyright © 2020 Cassia Networks, Inc. Cassia Networks et le logo Cassia Networks sont des marques déposées de Cassia Networks, Inc.
  • Page 14: Inclus Dans L'emballage

    DÉMARRER - FRANÇAIS I. INCLUS DANS L'EMBALLAGE Routeur Bluetooth CASSIA X2000 GUIDE DE DÉMARRAGE RAPIDE 1. Routeur X2000 (1) 2. Brides de fixation poteau (2) 3. Couvre-vis supérieurs supplémentaires (2) 4. Presse-étoupes (2) 5. Prise en silicone pour trou USB (1) 6.
  • Page 15 II. TÊTE ET BASE Non utilisé USB 2.0 Ethernet et PoE Réinitialiser 12V DC RESET ETH/PoE DC 12V Lumières LED WiFi SYS PWR Câble de masse Connecteurs d'antenne Bluetooth externes facultatifs...
  • Page 16: Montage Et Installation

    III. MONTAGE ET INSTALLATION Veuillez sélectionner les étapes correspondantes en fonction de la configuration de votre routeur. 1) Installez le modem cellulaire USB à l'intérieur du X2000 Étape 1: Retirez les couvercles de vis Étape 2: Utilisez un tournevis cruciforme supérieurs...
  • Page 17 2) Installer le modem cellulaire USB en dehors du X2000 Étape 1: Ouvrez le capuchon superieur Étape 2: Utilisez un tournevis plat pour retirer la fiche du trou USB (M20X1.5. Veuillez ne pas mélanger avec la fiche ETH/PoE) Supprimer Étape 3: Connectez le câble USB au Étape 4: Faites passer le câble USB à...
  • Page 18 REMARQUE: Le côté du support de montage faisant face au mur et au poteau est tranchant. S'il vous plait, ne vous blessez pas les mains. Montage mural Montage sur poteau 4) Faites glisser X2000 vers le bas sur le support de montage X2000. Montage mural Montage sur poteau...
  • Page 19 Ethernet à travers le presse-étoupe, insérez le connecteur RJ-45 dans le port Ethernet du X2000 et serrez le presse-étoupe dans l'ordre de a, b, c. Le couple de l'étape c doit être inférieur au couple de l'étape a.
  • Page 20 6) Connectez le câble d'alimentation 12V DC et le presse-étoupe au X2000 de la même manière qu'à l'étape 5 Adaptateur d'alimentation DC DC 12V 7) Pour les installations X2000 a l’extérieur, veuillez connecter le câble de masse pour assurer la sécurité du X2000. RESET ETH/PoE...
  • Page 21 IV. CONFIGURATION DU ROUTEUR BLUETOOTH 1) Configuration à l'aide d'un point d'accès Wi-Fi Le routeur Bluetooth Cassia fournit un point d'accès Wi-Fi pour la configuration initiale. Son SSID est cassia-xxxxxx. Xxxxxx correspond aux 6 derniers chiffres de l'ID MAC du routeur. Le mot de passe par défaut du hotspot Wi-Fi est le même que le SSID.
  • Page 22 V. INTERFACE PRODUIT Bluetooth Low Energy: 4.0/4.1/4.2/5.0 Wi-Fi: 802.11 a/b/g/n/ac, 2.4GHz et 5GHz bande ISM Ethernet: 10/100 Base-T USB 2.0: prend en charge le modem cellulaire USB Connecteurs d'antenne Bluetooth externes: connecteur femelle de type N 50 Ohm facultatifs Bouton de réinitialisation: réinitialisation d'usine. S'il vous plaît enlever le bouchon de remise à...
  • Page 23: Ic Radiation Exposure Statement For Canada

    : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Pour obtenir de l'aide supplémentaire, rendez-vous sur: https://www.cassianetworks.com Cassia Networks, Inc.
  • Page 24 Cassia Networks, Inc. https://www.cassianetworks.com 97 E. Brokaw Road, Suite 130, San Jose, CA 95112, USA support@cassianetworks.com...
