DODGE® On-Premise Gateway
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cassia X2000

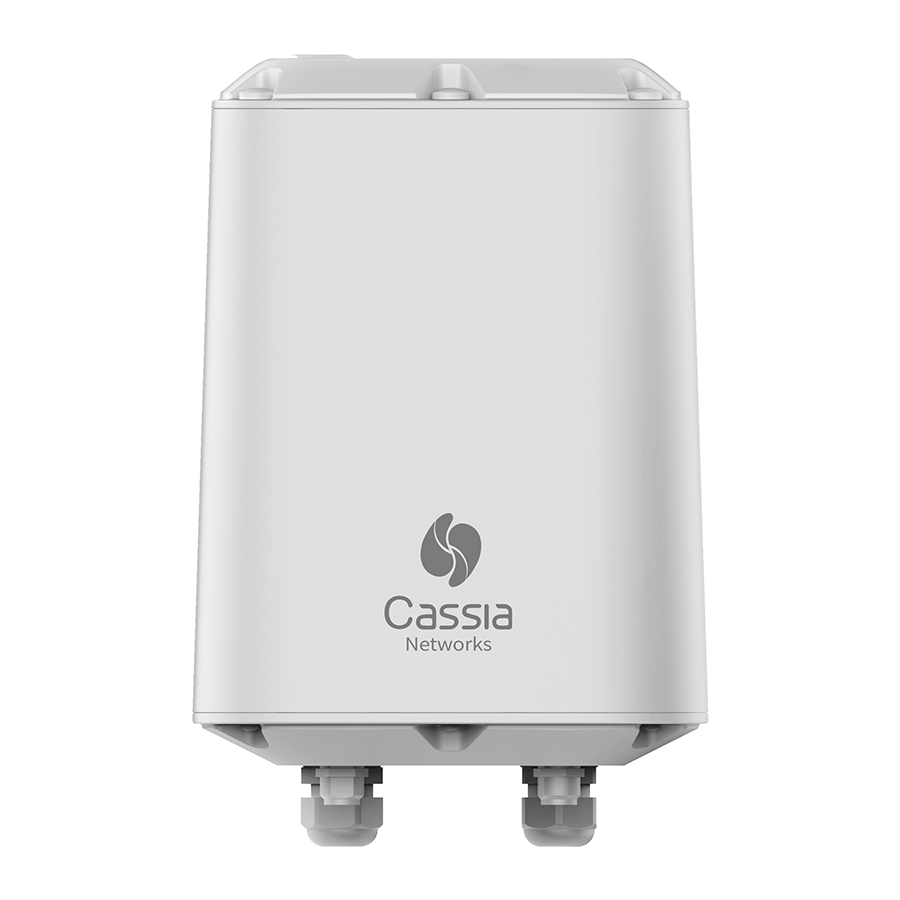

Summary of Contents for Cassia X2000

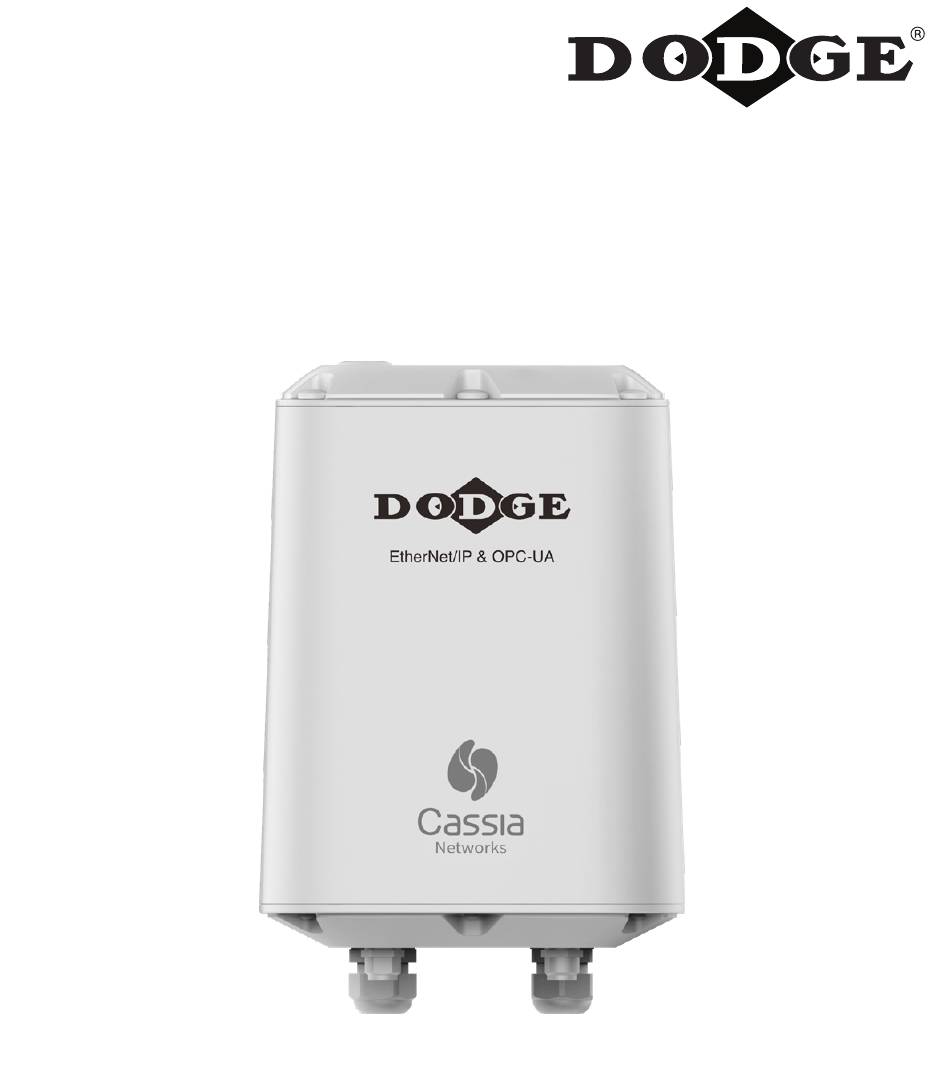

  • Page 1 DODGE® On-Premise Gateway Installation Manual...
  • Page 2 WiFi configuration, and sensors need to be assigned to the gateway before it can start reading them. The sales package includes: • X2000 Bluetooth router, wall and pole mounting kits, a Cassia Quick Start Guide, and a Dodge On-Premise Gateway Installation Manual. •...
  • Page 3 Figure 1 - Content of Sales Package For detailed information about items 1 through 10, refer to the Quick Start Guide (item 11 in Figure 1). For general information about the Cassia gateway, please refer to the Cassia User Manual on https:// www.cassianetworks.com/download/docs/Cassia_User_Manual.pdf...

  • Page 4: Prerequisites For Installation

    INSTALLATION 2.1 Prerequisites for Installation Sensor Commissioning: • Use the ABB Ability™ Smart Sensor mobile app to commission sensors. Prior to commissioning the sensors, it is necessary to have the following: An ABB account An organization Remember to update the firmware of the sensors after they have been commissioned.
  • Page 5 Sensor Monitoring, OPC-UA Server, and EtherNet/IP configurations: • Use the On-Premise Gateway User Guide to learn how to add and monitor sensors in the gateway and to configure the OPC- UA Server and the EtherNet/IP. https://search.abb.com/library/Download.aspx?Documen- tID=MN3093&LanguageCode=en&DocumentPartId=&Ac- tion=Launch Local Network Configuration: •...

  • Page 6: Recommended Location

    Ethernet Cable: • Two Ethernet cables are needed when wired configuration to local area network is used. See section 2.4.1. • One Ethernet cable is needed when WiFi configuration to local area network is used. See section 2.4.2. Computer: • A computer with WiFi adapter is needed for gateway configuration.

  • Page 7: Gateway Configuration

    (computer, phone, or tablet) and open the web browser. Type 192.168.40.1 to the web browser’s address field and press enter. The Cassia configuration page will open. The default password will need to be changed upon first login. The new password should include numbers, letters, and special characters.
  • Page 8 Figure 2 - Cassia Login Page...
  • Page 9 Once logged in, the Status Page is shown. This page shows current operation mode and connection status of the gateway. Figure 3 - Status Page...
  • Page 10 The following pages are used for gateway configuration: • The Basic Page to connect the gateway to the local area network via wired or WiFi configuration. • The OPC-UA Page for sensor management if an OPC-UA server setup is used. •...

  • Page 11: Local Area Network Configuration

    2.4 Local Area Network Configuration 2.4.1 LAN/Ethernet Cable Connection Use available LAN/Ethernet network to configure gateway and the PoE injector included in package for power supply. If a PoE (Power Over Ethernet) network is available, the gateway can be configured without any additional power supply.
  • Page 12 From the Gateway Basic Page: • Confirm Connection Priority is Wired (this connection priority is set by default) • IP Allocation: DHCP or Static (in case the IP address is given) Press Apply at the bottom of the screen. NOTE! Only the above options can be changed on this page. Other options must remain as default.
  • Page 13 Figure 5 - Basic Page...
  • Page 14 2.4.2 WiFi Connection The gateway can be configured to use an existing WiFi network. The PoE injector included in the package is required for power supply. Figure 6 - WiFi Network Configuration *For more information about these components, refer to the Quick User Guide (item 11 of the sales package).
  • Page 15 Change the Wireless operation mode from Hotspot to Client • IP Allocation: DHCP or Static (in case the IP allocation is • given) Press Apply at the bottom of the screen. NOTE! Only the above options can be changed on this page. Other options must remain as default.
  • Page 16 2.5 Sensor Monitoring, OPC-UA Server, and EtherNet/IP Configurations For this part of the gateway configuration, please refer to the On- Premise Gateway User Guide as linked in section 2.1 of this document. Prior to configuring the gateway, read thoroughly section 1 of the User Guide to learn more about how the gateway operates, its system requirements, and supported systems.
  • Page 17 2.6 Gateway Configuration Confirmation Confirm that the settings from the Basic (Top section) and Container Pages (Port Forwarding Configuration section) match the settings from the following figures. Figure 7 - Base Page, Top Section Settings...
  • Page 18 Figure 8 - Container Page, Port Forwarding Configuration Section Settings Press Apply at the bottom of the screen on each page once changes have been made.

  • Page 19: Gateway Troubleshooting

    2.7 Gateway Troubleshooting Forgetting the login credentials or making a mistake while configuring the WiFi network SSID or password: • Press the reset button for 10 to 15 seconds while the gateway is powered on. This will reset all gateway settings to factory default values.
  • Page 20 — Dodge Mechanical Power Transmission Company Inc. 6040 Ponders Court Greenville, SC 29615 Ph: 1.864.297.4800 *9akk108402-0921* All Rights Reserved. Printed in USA. © Dodge Mechancial Power Transmission Company, Inc. 09/2021 9AKK108402...
