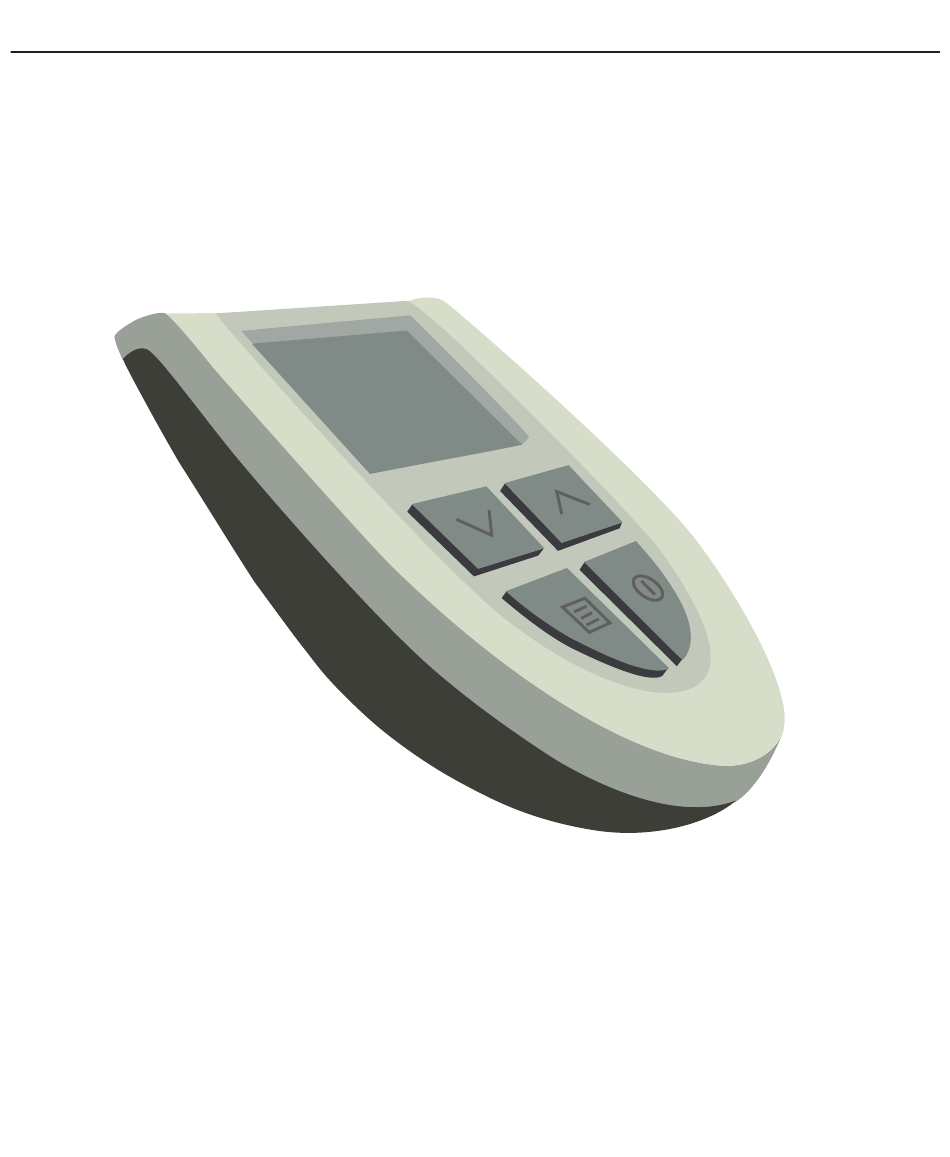

- Page 1 Honeywell Manual DF-RC RF Remote Control Decorative Fire...
-
Page 2: Display And Keys
DISPLAY AND KEYS Display Key Up Key Down Key Stop/Stand-by Key Menu... - Page 3 Display Manual operation. Time schedule active. Active time period. Closed (left) or open fire place type (right). Decorative fire is on. Decorative fire can be ignited. Fault of decorative fire can be reset. Burner off/setting down (left), burner on/setting up (right). Busy (for instance while decorative fire is been ignited).
-
Page 4: Set Up For Operation
SET UP FOR OPERATION The RF remote control makes it possible to operate your decorative fire both manual as by means of a time schedule.* The temperature and the flame height can be manually controlled. The time schedule only controls the temperature. The possible time schedules are*: •... -
Page 5: Binding Rf Remote Control
Binding RF Remote Control The RF remote control can only communicate with a decorative fire after the RF remote control has been bound with that decorative fire. If both devices are switched on within minutes after each other, the binding goes automatically. -
Page 6: Operation
OPERATION The RF remote control is equipped with a display and four keys. Because of this the decorative fire can be easily operated and settings easily be adjusted. There are two setting menus available: • User menu • Installation menu once to select the User menu, or keep key Press key pressed for... - Page 7 This display is shown. The symbols are flashing to indicate the decorative fire is being ignited. After the decorative fire has been ignited, the display below is shown. The flame height can now be manually controlled. Setting flame height Press key once.
- Page 8 Switching off the decorative fire Press key once to switch off the decorative fire. This display is shown. The symbol flashes to indicate the decorative fire is being switched off. After the decorative fire has been switched off, the default display is shown again. Temperature control The decorative fire is automatically switched on and off according to the heat demand.
- Page 9 Temporarily interrupting temperature control When temperature control is used, the decorative fire can temporarily be switched off. Press key once to switch off the decorative fire. This diplay is shown. The symbol flashes to indicate the decorative fire is being switched off. After the decorative fire has been switched off, the display below is shown.
-
Page 10: Time Schedule
Time Schedule The temperature is controlled according to the time schedule, see Setting Time Schedule on page 14. The decorative fire is fully automatically ignited and switched off. Temporarily changing the temperature set point The temperature set point of a time schedule period can temporarily be enhanced or lowered. - Page 11 Temporarily interrupting time schedule In case of the use of a clock programme, the decorative fire can also be switched off temporarily. Press key once if the decorative fire has been ignited. This display (example) is shown. The symbol flashes to indicate the decorative fire is being switched off.
-
Page 12: User Menu
USER MENU In the User Menu the following choices* can be made: • Manually with flame height control • Manually with temperature control • Time schedule (temperature control) In the User Menu the following settings* are available: • Time • Day of the week •... -
Page 13: Setting Time And Day
Setting Time and Day Press key a few times until the display below is shown. The current set time flashes. Set the actual time by pressing keys . Press key . The days of the week are flashing. Select the actual day of the week by pressing keys . -
Page 14: Setting Time Schedule
Setting Time Schedule Dependent on the choices made in the Installation Menu, 1, or time schedules and II, IV or VI time periods per day can be set. The setting of the clock programmes is the same for all choices. Setting a clock programme is as follows: Press key a few times until the diplay below is shown. -
Page 15: Installation Menu
INSTALLATION MENU Select the Installation menu as follows: • If selected, leave the User menu. • Then keep key pressed for ten seconds. In the Installation Menu the following choices* can be made: • 1- or 4-hours time representation • Time schedule (1, /, days or •... -
Page 16: Day Time Periods (Ii, Iv Or Vi)
Time Schedule (1, 5/2, 7 days or ) Press key a few times until one of the displays below is shown. Select the required time schedule (1, /, or ) by pressing key . Time schedule / is represented by the display showing 1... Wait a few seconds or press key to leave the menu. -
Page 17: Binding Rf Remote Control
Binding RF Remote Control In case of replacement of either the decorative fire or the RF remote control, the binding must be started manually. Act as follows: Press key a few times until the display below is shown. Make sure the decorative fire has not been switched on for more than minutes. -
Page 18: Replacing Batteries
REPLACING BATTERIES Your RF remote control operates with two alkaline batteries (type AA). If the symbol is shown flashing on the display, the batteries have to be replaced. If the batteries are completely empty, the display will go blanc. Therefore, replace the batteries of the RF remote control in time. - Page 19 figure 1 figure figure ...
-
Page 20: Fault Indication 0
FAULT INDICATION The displays below indicate possible fault situations. Communication failure between RF remote control and decorative fire. The symbol flashes. The distance between the decorative fire and the RF remote control is probably too large. Hold the RF remote control nearer to the decorative fire. Fault of the decorative fire. -
Page 21: Terminating A Lock-Out Failure 1
Failure of the temperature sensor of the decorative fire. The temperature sensor in the RF remote control operates as normal. The text and the measured temperature are shown alternating. The display shows this situation in case a time schedule has been choosen. Failure of the temperature sensors of both the RF remote control and the decorative fire (or the latter not present). -
Page 22: Warranty
WARRANTY This Honeywell product was produced with the most care and highest quality demands. Honeywell warrants this product, excluding batteries, for a period of 4 months from the date of purchase. This date must be included on a valid proof of purchase. -
Page 23: Table Of Contents
Contents DISPLAY AND KEYS SET UP FOR OPERATION Flame Symbol Batteries Binding RF Remote Control Time and Day OPERATION Manual Operation Time Schedule USER MENU Manually or Time Schedule Setting Time and Day Setting Time Schedule INSTALLATION MENU 1- or 4-Hours Representation Time Schedule (1, /, days or ) Day Time Periods (II, IV or VI) Binding RF Remote Control... - Page 24 Honeywell ENH-00NL1 R00...
