CrucialTrak BACS DUO Installation & User Manual

Hide thumbs Also See for BACS DUO:

Advertisement

Quick Links

Download this manual
Installation User Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BACS DUO and is the answer not in the manual?

Questions and answers

Related Manuals for CrucialTrak BACS DUO

Summary of Contents for CrucialTrak BACS DUO

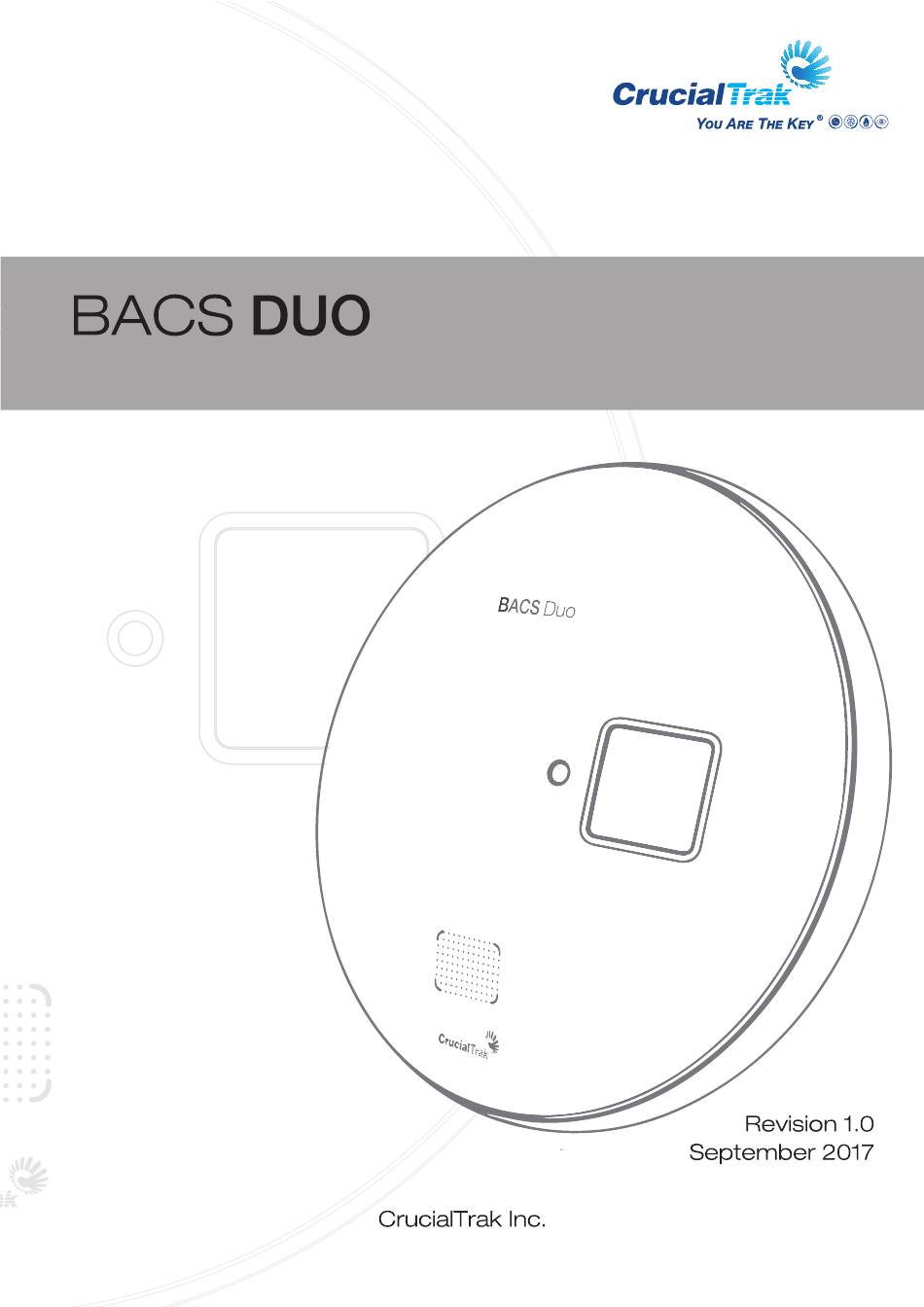

  • Page 1 Installation User Guide...

  • Page 5: Included Parts

    (AWG 22 or for higher (AWG 22 or for higher ( for stone drilling, equivalent) current) current) corded drill recommended) Phillips screwdriver 6mm or 6.5mm Drilling bit M6 or M6.5 plastic anchor (only for stone wall mounting) (if needed} CrucialTrak Inc.
  • Page 6 RFID Card 나Z � CrucialT ..- Rear Speaker Ventilation fans Pan- tilt torque adjustment bar - fasten : clock wise - release : counter clock wise Pan-Tilting module 1/F sockets - DC power, relay, Wiegand & HDMI CrucialTrak Inc.

  • Page 7: Face Recognition

    35-70mm distance from the palm vein sensor sensor. You can find the best position as you repeat yo-yo playing motion. · Built in RFID reader is only for custom ACU interoperation, please contact RSM to have system consulting. CrucialTrak Inc.
  • Page 8 1. Assemble DUO body and link plate with M3.5 machine scre w ( reen) 2. Fix mounting bracket to wall with 5mm drywall screw or plastic anchor together ( ed] 3. hook Duo Body & Link plate to mounting bracket and tighten them together by using M3.5 machine scre w (Blue) CrucialTrak Inc.

  • Page 10: General System Configuration

    (For enrollment, connect a mouse, a keyboard and a HDMI monitor) · Other DUOs can be defined as slave devices to be directed by the master device (Please read 'Network configuration' in this guide) · Strongly recommend to use 'Enroll Station e4' for registration CrucialTrak Inc.
  • Page 11 Iii 1 1 1 1 �NC Switch- 1 。 11 1 11111 I Switch- 2 EM Lock etc. - Power Control \::, Power input + Power input - DC Power Supply 。 Switch- 1 。 Switch- 2 EM Lock etc. CrucialTrak Inc.
  • Page 12 INSTALLATION GUIDE 9. Configuration · Open CrucialTrak configuration page on web browser by typing 192.168.0.194:3000 in URL address box · DUO and console (PC, laptop or portable devices) are connected in the same network Home Network S etup Page Address Netmask 二...
  • Page 13 · For multi-mode with DUO, number of success value should be '2' · For single-mode with DUO, number of success values should be ' 1 ' · When users success recognition, user's name is always displayed in built in LCD display CrucialTrak Inc.
  • Page 14 Pulse Widt h( u터 三 Inter-pulse Gap(뼈 [RelayO] : ., Grant Al:cess Time(ms) [Relay 1] Grant Access Time(ms) <D Grant Access Time(ms): Relay operation time value (Door opening time) · For more information about Configuration, please contact CrucialTrak Technical Team. CrucialTrak Inc.
  • Page 15 · Users face should not be placed at the backlight direction · Strongly recommend to use Enrollment Station e4 for register (Contact CrucialTrak RSM for purchasing) · Adjust pan-tilt angle carefully · Do not place anything near by fans, do not interrupt ventilation ·...
  • Page 16 Appendix DUO GUI & User guide Enroll Station e4 Installation & User guide Enroll Station © 2017 CrucialTrak Inc. All right reserved.

  • Page 17: Mode Switching

    Mode Switching Users can change mode by clicking icon on the left task bar. Refer to appendix for detail usage. < Enroll mode Manager mode > < Duo Identification mode If you close any BACS applications (Enroll, BACS Manager) by clicking ‘x’ of ...
  • Page 18  Verify Process Through Graphical User Interface DUO Provides face & palm vein recognition only Default screen Front TOF sensor is detected © 2017 CrucialTrak Inc. All right reserved.
  • Page 19 Face authentication is completed Face/Iris authentication is completed © 2017 CrucialTrak Inc. All right reserved.
  • Page 20 ID, Name, and photo will be appeared on the screen. The final authentication success condition can be adjusted from one to four conditions depends on your preferred combinations. Regarding enroll process, please refer to appendix of this guide. © 2017 CrucialTrak Inc. All right reserved.
  • Page 21 Cooling FAN Power HDMI ethernet AC 110V / 220V  E4 does not support free voltage, confirm 110/220V prior to supply AC power  Do not block rear cooling FAN  Avoid cable bending © 2017 CrucialTrak Inc. All right reserved.
  • Page 22 Enroll Process GUI 1) Turn on Enroll station, enroll screen will be shown as below then click Enrollment button to start. 2) Type User Name and RFID no. ID will be generated automatically. © 2017 CrucialTrak Inc. All right reserved.
  • Page 23 3) Introduction screen will be appeared, click Next button to start enrollment. 4) Step 1. Face enrollment: Place your face 50~60cm away from the device. Click Capture button when ellipse is appeared on your face image. © 2017 CrucialTrak Inc. All right reserved.
  • Page 24 6) Step 2. Iris enrollment: Press Capture button to start Iris enrollment. Try hold the position from the face enrollment, keep your eyes open fully and loot at the camera inside. The iris recognition camera should scan your both irises. © 2017 CrucialTrak Inc. All right reserved.
  • Page 25 For better image or when only one iris is saned, adjust your position, and click Try Again for re-registration. 8) Step 3. Fingerprint enrollment: Click Capture button to start. Green lights will be turned © 2017 CrucialTrak Inc. All right reserved.
  • Page 26 9) Slowly approach your fingers over the green lights(camera). 5~6cm distance rage is recommended. The device captures 10 images of your fingers then It will stat counting when the object is detected correctly. © 2017 CrucialTrak Inc. All right reserved.
  • Page 27 For better images or failed case, Click Try Again. 11) Step 4. Palm vein enrollment: Click Capture to start. stretch thumb finger to make flat palm pasture, place palm over the Palm vein sensor. © 2017 CrucialTrak Inc. All right reserved.
  • Page 28 Captured finger image will be appeared in lower right circle. Try again if it needed. 13) Click Finish to save your biometric templates to enroll station. ※ For improved performance, It is recommended to enroll at Quattro and Duo in addition to Enroll station. © 2017 CrucialTrak Inc. All right reserved.
  • Page 29  Make sure user ID is correct. Supervisor needs to double check by comparing with separately managed user lists.  If user already linked RFID card # with biometric info., then you must type card #. Do not leave it blank. © 2017 CrucialTrak Inc. All right reserved.
  • Page 30 16) In order to return to Desktop, please drag down Enroll GUI screen. If you closed any BACS applications (Enroll, BACS Manager) by clicking ‘x’  of upper left window, then applications will be automatically re-executed. © 2017 CrucialTrak Inc. All right reserved.
