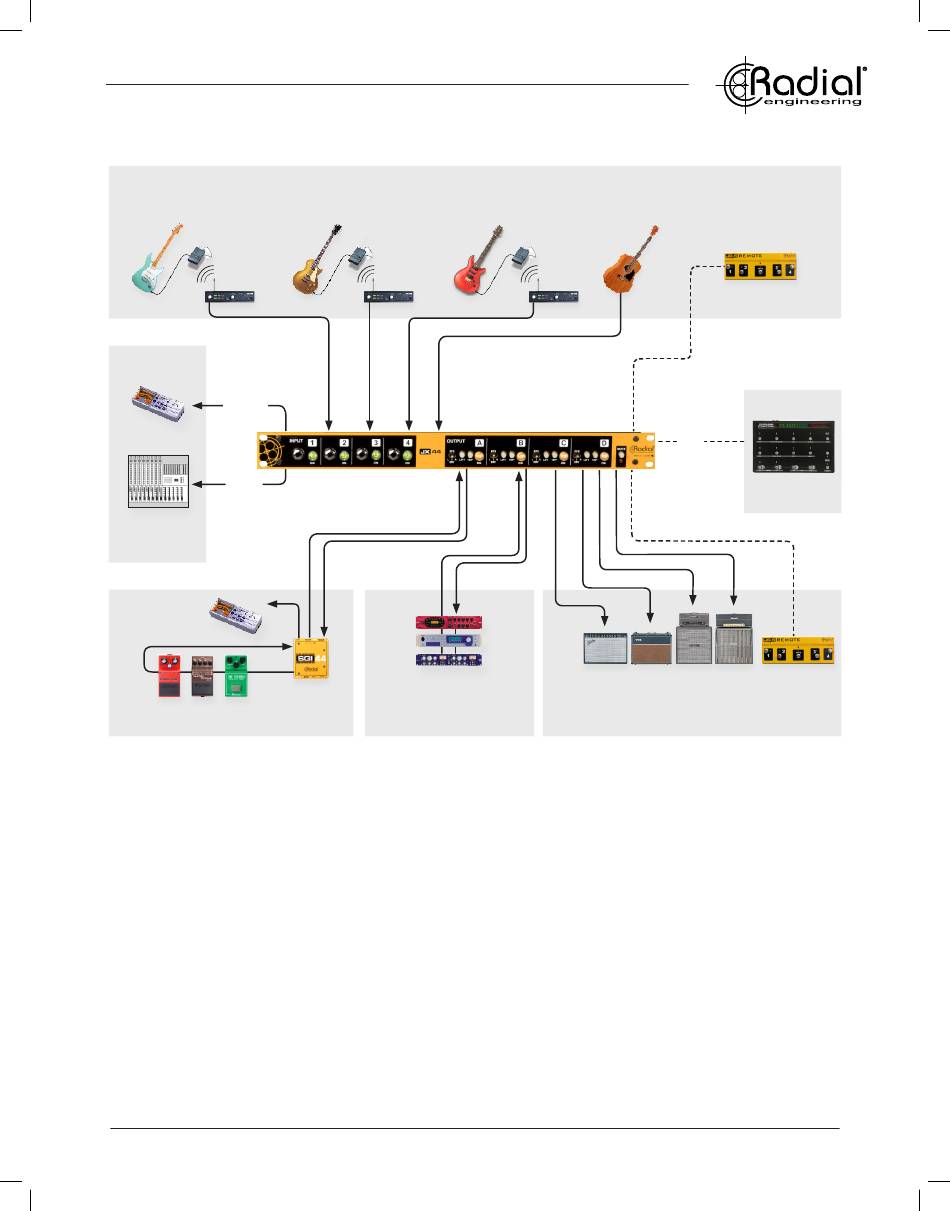

OVERVIEW

INPUT-1
Wireless
6. TUNER
TUNER OUT
Local Tuner
DI OUT
Mixer
5. DIRECT
Remote
Tuner
4. SGI-44 LOOP
1. INSTRUMENT INPUTS: The JX44 starts with a
four-input instrument selector for wired and wireless
guitars. The JX44 can have all your instruments ready
and waiting and the optional JR-5 remote footswitch
allows hands free operation with LED indicators.
2. AMPLIFIER OUTPUTS: These four outputs allow
you to connect multiple amplifiers at the same time or
select between them as needed, while assigning EFX
channels to individual amps to easily accomodate
complex wet/dry/wet setups. A pristine Class-A signal
path and Jensen transformers for isolation offer
amazing sound quality while eliminating hum and
buzz caused by ground loops.
3. STEREO EFX LOOP: Patch stereo rackmount
effects and pedals into this local hi-impedance effects
loop for use with all connected instruments. Each side
of the Stereo EFX loop can be assigned individually
to each amplifier output.
Radial Engineering Ltd.
1. INSTRUMENT INPUTS
INPUT-2 INPUT-3
Wireless
3. STEREO EFX LOOP
INPUT-4
Wireless
OUT-A OUT-B OUT-C
2. AMPLIFIER OUTPUTS
4. SGI-44 LOOP: This balanced long-haul effects
loop works with the optional SGI-44 to connect a
pedalboard up to 100 meters (300 feet) away from
your amps without introducing noise or signal loss.
5. DIRECT OUTPUT: The built-in Radial direct
output allows you to record the performance or feed
signals from acoustic instruments straight to the FOH
console. This output can be assigned before or after
the EFX Loop or assigned exclusively to instrument
Input-4.
6. TUNER OUTPUT: The Tuner Out is fed from all
inactive instrument inputs, so a guitar tech can simply
grab and tune without disrupting the performance.
7. MIDI INPUT: Built in MIDI functionality allows
you to use MIDI footswitches and controllers to use
the functions of the JX44 remotely. Instrument and
amplifier switching & muting, and EFX Loop on/off are
all controllable via MIDI commands.
GUITAR SELECT
7. MIDI
MIDI
MIDI controller
OUT-D AMP SELECT
