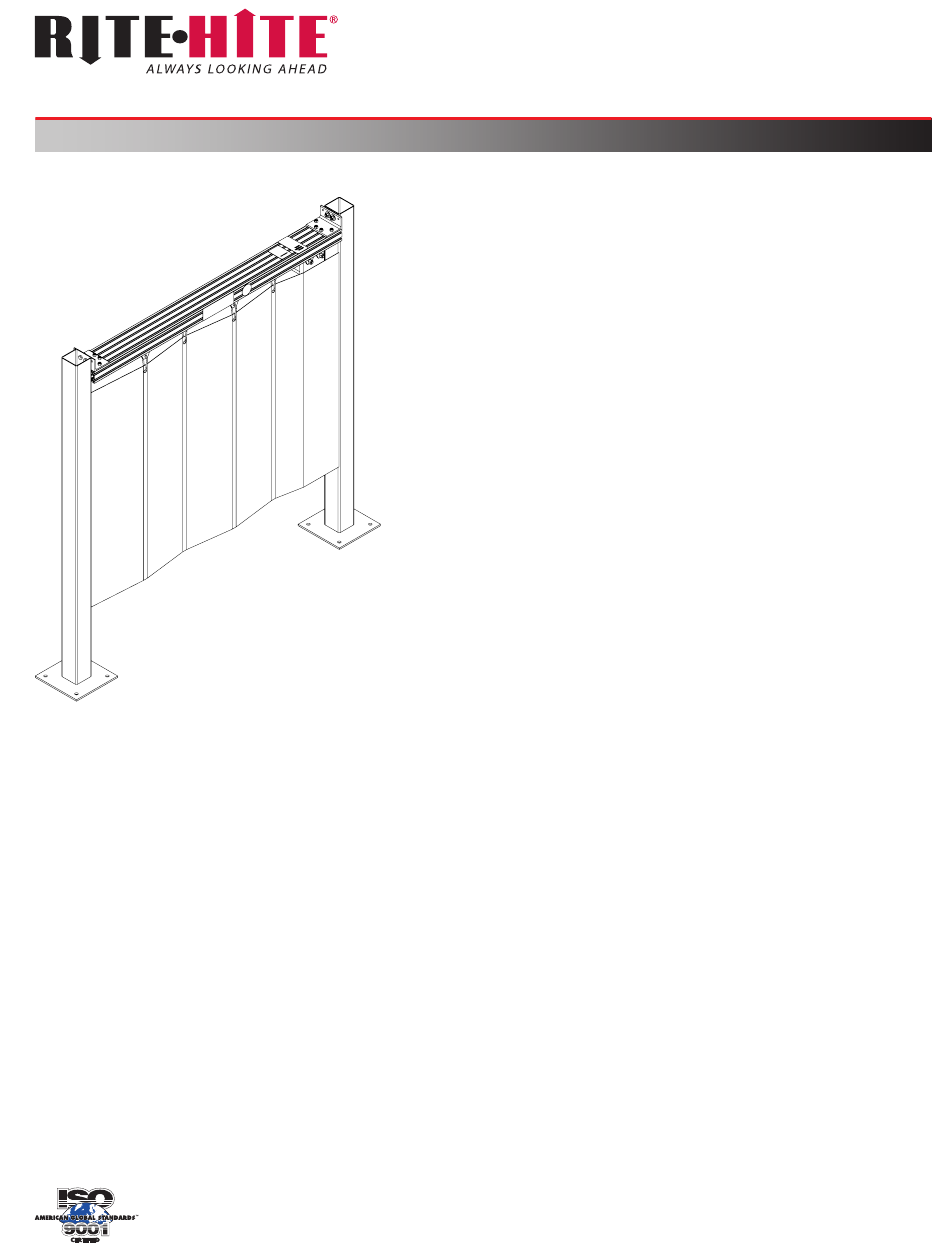

SlideAir
™
Pneumatic Safety Curtain
Installation/Service/Owner's Manual
NOTICE TO USER                       2
SAFETY                               3
Preparation                              5
Single Pedestal Mount                     7
Single Swivel Mount                       7
With Vertical Supports                     8
Without Vertical Supports                   8
Extended Curtain Nose (Optional)            8
Air Supply Regulator (Optional)              8
Electrical                                9
Final Checklist                          11
Proximity Switch Wiring Diagram            15
Control Box Layout - 110 VAC              16
Junction Box Layout                      17
Planned Maintenance                    18
Troubleshooting                         18
PARTS                                19
ABBREVIATIONS                      20
WARRANTY                           24
Manual Part #: 39500143
Model: SLDAIR
Language: English (Hazards: English, French)
Publication: AMEN00119 2020-07-06
