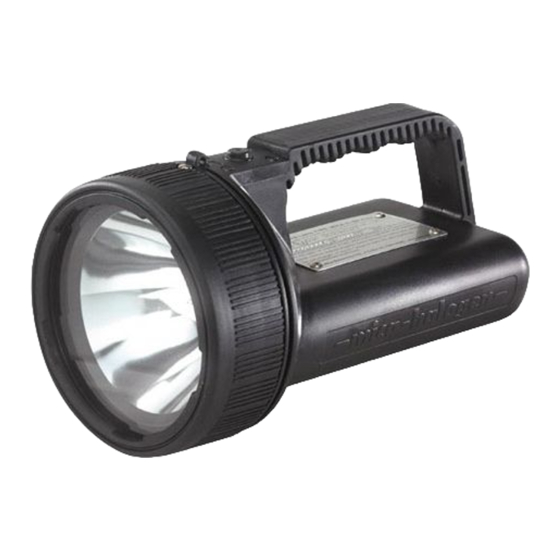

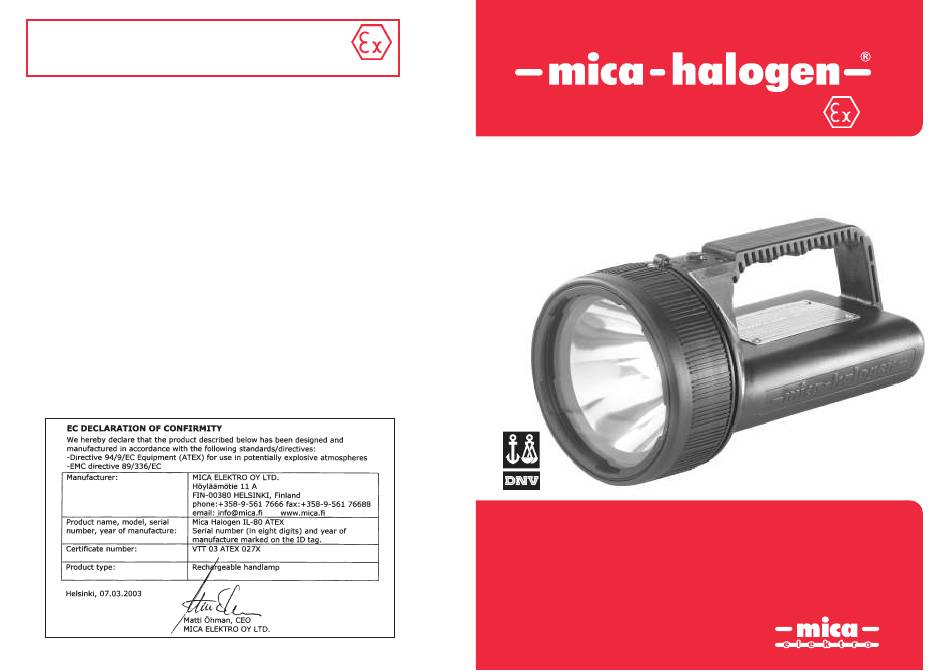

MICA IL-80 ATEX Quick Start Manual

MICA IL-80 ATEX and IL-80 ATEX EM

Classification:

Eex eib IIC T4 (Tamb -20…+35°C) / T3
Certificate: VTT 03 ATEX 027X
The lamps have been engineered and manufactured in accordance
with European standards GENELEC EN 50014, EN 50019, EN 50020 and 50281-1.
MICA IL-80 ATEX SAFETY INSTRUCTIONS:

Taking lamp into use:

- Cleaning and any other necessary preparations must always be performed prior to moving into
potentially explosive environment.
- Charger must not be placed in potentially explosive environments. Lamp may not be charged
in potentially explosive environments.
Use:
- Check that classification of potentially explosive environment complies with that issued for lamp.
- Lamp may not be opened in potentially explosive environments.
- If lamp becomes malfunctioned, remove it from potentially explosive environment.
Maintenance of lamp:
- Lamp may be maintained by electrical technicians only.
- Maintenance operations must be performed outside of potentially explosive environments.
- Spare parts may be original MICA spare parts only.

TECHNICAL SPECIFICATIONS:

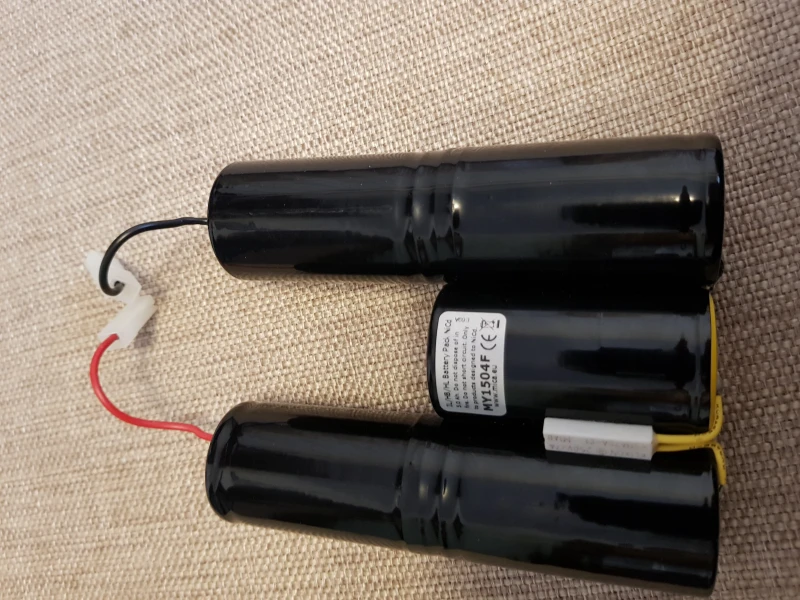

Battery NiCd 6V 5.0Ah
Glass lens 110.5 x 5mm
Reflector narrow or medium-wide
Operation temperature –20°C...+40°C
Protextion class IP-66 (injection water and dust proof)
Dimensions (h x w x d) 121 x 121 x 216 mm
Weight 1.4 kg
Bulb 1 W Luxeon LED or 2,4 W halogen bulb

WARRANTY

Your MICA lamp, battery and charger are guaranteed for one year from date of purchase against
all defects in materials and workmanship. During the warranty period, these units may be serviced
by an authorized MICA service agent only. For after-sales service, contact your local MICA dealer.
© 09-2007 MICA ELEKTRO OY LTD
We reserve the right to change information given in this manual at any time.
01479_2
IL-80 ATEX and IL-80 ATEX EM
Rechargeable MICA lamps are efficient and reliable tools. In order to fully utilize your
new lamp, please read these instructions before use.
CLASSIFICATION:
The lamps in MICA IL-80 ATEX series are engineered to be used in potentially explosive
environment as listed in classification EEx eib IIC T4 (Tamb -20…+35°C) / T3.
Certificate No.E-4917

BEFORE USE:

The battery discharges when the lamp is stored and it must be recharged prior to use. The
battery will reach its full capacity after it has been charged and discharged approximately
ten times. The lamp should be charged using a MICA charger suitable for the lamp and the
charger must never be placed in a potentially explosive environment. The battery will
be charged from empty to full in 6…11 hours (depending on ambient temperature and
condition of the battery). We recommend that you always store the lamp in its charger.
Please read the manual for the charger as well.
Mica Elektro Oy LTD. P.O.B. 42, FIN-00381 Helsinki
tel:+358-9-5617 666 fax:+358-9-5617 6688
email: info@mica.eu internet: www.mica.eu
