INSTALLER: THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY INFORMATION AND MUST BE FORWARDED TO THE BOAT OWNER.

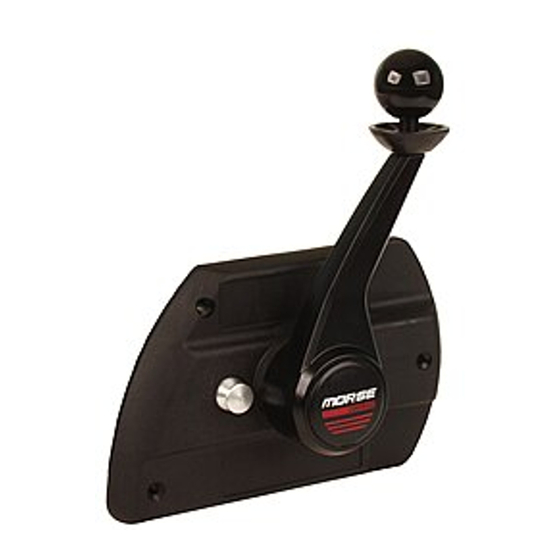

INSTALLATION AND OPERATION OF MV-3 SERIES
OWNER'S MANUAL
NOTICE
nied by the International Hazard Symbol
instructions concerning a particular service or operation that may be hazardous if preformed incor-
rectly or carelessly.
Warnings alone do not eliminate dangers, nor are the a substitute for safe boat handling and proper
accident prevention measures. Observe these alerts carefully!
These "saftey alerts" alone cannot elim-
inate the hazards they signal. Strict
compliance to these special instruc-
tions when installing, operating or
performing maintanence and using
common sence are the most effective
accident prevention measures.
INSTALLATION MANUAL
Manual # 0550001-687
SIDE MOUNT CONTROL
Throughout this manual, Warnings and Cautions, accompa-
, are used to alert the manufacturer or installer to special
!
DANGER
!
Immediate Hazards which
WILL result in severe
personel injury or death.
CAUTION
!
Hazards or unsafe practices
which COULD result in injury,
product and/or property
damage.
Page 1
of 12
Revision 1
For Single Station Only
WARNING
!
Hazards or unsafe practices
which COULD result in sever
personel injury or death.
NOTICE
Information that is important to
the proper installation,
operation and maintenance, but
is not hazard related.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teleflex Marine MV-3 Series
Summary of Contents for Teleflex Marine MV-3 Series
- Page 1 Page 1 of 12 Manual # 0550001-687 Revision 1 INSTALLER: THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY INFORMATION AND MUST BE FORWARDED TO THE BOAT OWNER. INSTALLATION AND OPERATION OF MV-3 SERIES SIDE MOUNT CONTROL OWNER’S MANUAL For Single Station Only NOTICE...
- Page 2 Control Confi guration NOTICE TO DETERMINE THE CORRECT CONTROL ASSEMBLY FOR INBOARDS WITH HYDRAULIC TRANSMISIONS, YOU MUST DE- TERMINE IF THE SHIFT CABLE “PULLS” OR “PUSHES” TO GO INTO FORWARD AND IF THE THROTTLE CABLE “PULLS” OR “PUSHES” TO OPEN THE THROTTLE.
- Page 3 CAUTION IF THE SHIFT ARM IS REPOSITIONED, THE NEUTRAL SAFETY SWITCH MUST ALSO BE REPOSITIONED OR THE SWITCH WILL BE DAMAGED. (SEE FIGURE 4.) CONTROLS Reversing Throttle Action All MV-3 controls are assembled to give a “PULL” ac- tion on the cable. If cable action is incorrect, reverse throttle arm by removing Hex Head Screw and large fl...
- Page 4 Choosing Control Location Choose a mounting location for the control head which will pro- vide comfortable operation of the hand lever, unobstructed move- CAUTION ment of mechanism arms and a clear path for cables to engine. Figure 6 shows the control dimensions and the recommended clearance WHEN CONTROL COMES WITH behind the mounting surface.
- Page 5 Lubricate pivot with grease, then insert into hole in throttle arm. Fasten with cotter pin. Tighten cable nut against pivot.Section 4 Neutral Safety Switch NOTICE Most MV-3 controls are equipped with a neutral safety switch. TELEFLEX MARINE CONTROLS STRONGLY RECOMMENDS THAT THE SWITCH BE CON- NECTED TO ASSURE SAFE BOATING OPERATION.
- Page 6 Berkeley Jet Control Installation of the Berkeley Jet Control closely follows that of the other MV-3 Controls made by Telefl ex Marine Controls. Follow the instructions in this booklet plus these few added instructions: CAUTION THE SHIFT AND THROTTLE Neutral Safety Switch Option ARMS HAVE BEEN OFFSET 15 A neutral safety switch kit is available for use with DEGREES TO ASSURE PROPER...
- Page 7 NOTICE WHEN THE THROTTLE CABLE IS CORRECTLY ADJUSTED, THE ENGINE SPEED WILL REMAIN AT IDLE WHILE THE CONTROL IS SHIFTED AND WILL INCREASE ONLY AFTER THE GATE IS FULLY OPEN OR FULLY CLOSED. MV-3 For Sport Boats FOR INBOARDS AND OUTBOARDS PARTS AVAILABLE INBOARD &...
- Page 8 311352 MOUNTING HARDWARE (not shown) 311412 and 311413 311411 NEUTRAL SAFETY for BERKELEY 311412 and 311413 311453 USA Sales/Support Overseas Sales/Support Teleflex Marine Teleflex Marine 640 North Lewis Road International Sales and Limerick, Pennsylvania Marketing 19468 PO Box 5990 www.teleflexmarine.com...
