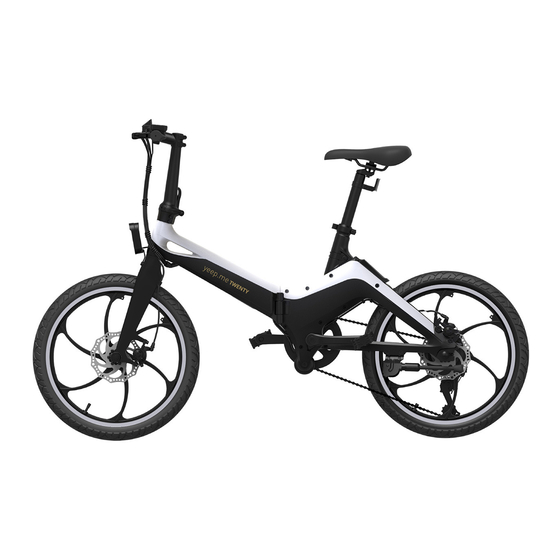

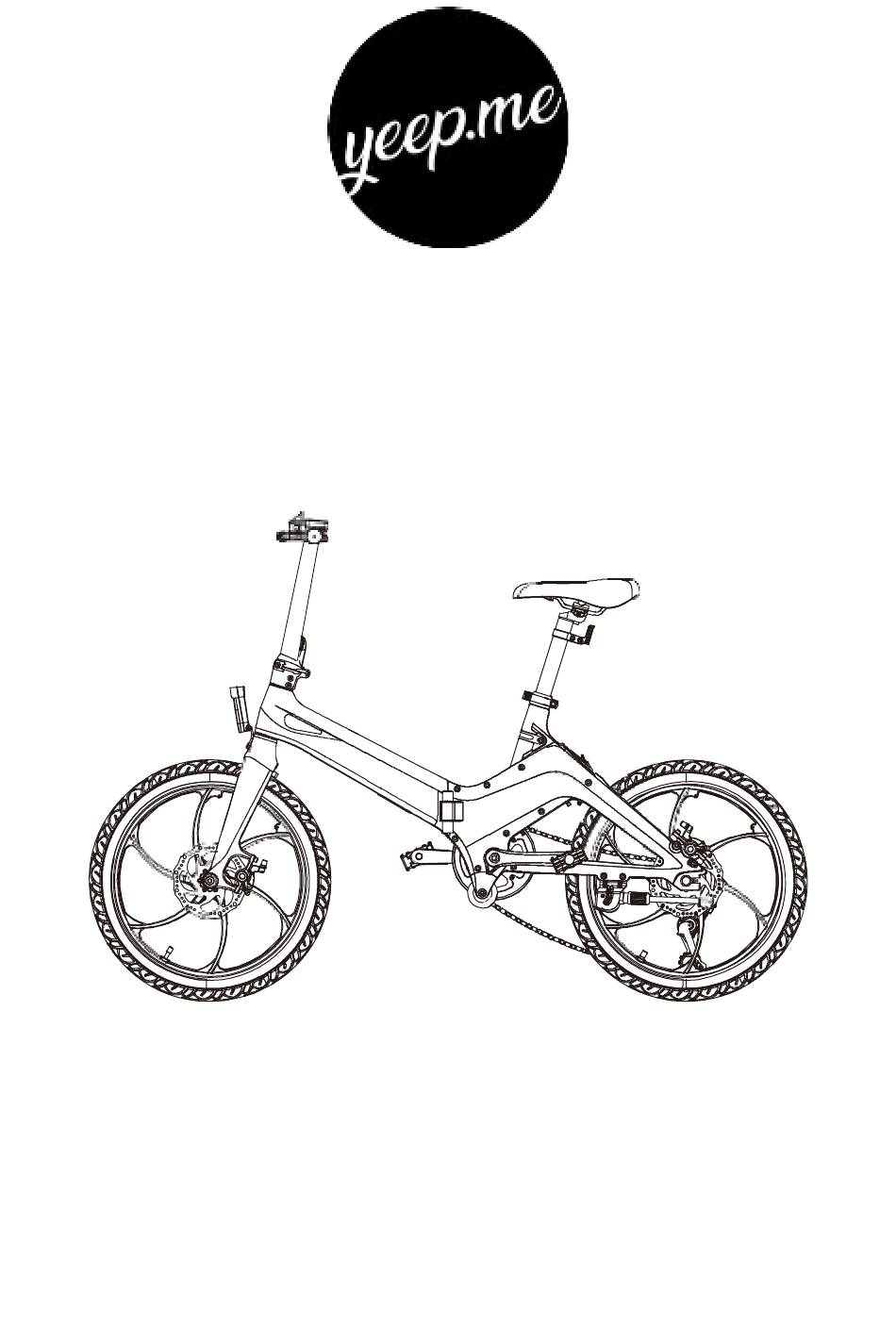

- Page 1 ELECTRIC BIKE yeep.me TWENTY Instruction manual Please read this manual carefully before first use Original Instructions...
-
Page 3: Table Of Contents
Thank you for your purchase. Welcome to the yeepers community! Table of contents 1. SAFETY GUIDELINES 2. CONTENTS AND TECHNICAL SPECIFICATIONS 3. USE 4. MAINTENANCE AND CLEANING 5. FAQ & WARRANTY Before using this product, carefully read the user guidelines. These will allow you to properly understand, use and service this product, and to get to know its perfor- mances and features. -
Page 4: Safety Guidelines
1. SAFETY GUIDELINES 1.This device is designed to transport one person, and is intended for use by teenagers and adults. Cleaning, maintenance and all other handling of the device must be per- formed by someone over the age of 12. This device may be used by children aged 12 and up, and may also be used by persons with physical, sensory or mental disabilities, on condition that ade- quate supervision is provided or they have been instructed on how to operate... - Page 5 sewer grates that may cause accidents. Slow down for speed bumps. Stay away from other road users and observe traffic rules. You are not safe from the risks posed by the behaviour of others. Anticipate obstacles and traffic by driving at an appropriate speed. The stopping distance is correlated with your speed, so take care to anticipate braking distances in wet weath- er and/or on wet roads.
- Page 6 knowledge of these safety measures/guidelines and use. If you lend the device to someone, ensure the other person knows how to use it and explain to them all the safety guidelines. The person you are lending the scooter to must be reminded to follow traffic regulations and to wear protective gear while riding.
- Page 7 13. The batteries must be disposed of appropriately. If you are unable to return your product to your retailer, place it in the containers provided for this purpose (see the brand’s manual for more information) in order to protect the environment.
- Page 8 Pictogram Meaning Always read the user manual carefully. An exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the device’s user manual. This device must not come into contact with water. Do not store the device in a damp environment.
-
Page 9: Contents And Technical Specifications
2. CONTENTS AND TECHNICAL SPECIFICATIONS This pack contains: • yeep.me TWENTY electric bike • Tools • Original mains charger • Starter keys (2 keys provided) • User manual • Warranty manual • CE declaration • Warranty card TO BE KEPT (it contains the device’s serial number and man-... -
Page 10: Use
3. USE 3.1. DEVICE OVERVIEW (1). Handlebars, brake handles, screen and bell (2). Folding system (3). Front lights (4). Front fork (5). Front brake disc (6). Adjustable saddle (7). Seat height adjustment (8). Rear brake disc (9). Stand (10). Derailleur (11). Pedal with reflector (12). Support wheel. - Page 11 M button Press for 3 seconds to turn the unit on/off. Briefly press to change the display to show TRIP, ODO and TIME. + button Briefly press to increase speed level. Press and hold to turn front headlight on/off. - button Short press to decrease speed level.
- Page 12 3.2. UNPACKING AND ASSEMBLING THE DEVICE To unpack the product, it is recommended to have a clear surface that is large enough to unpack and prepare the device. Take the device out of its pack- aging, making sure to not injure yourself or damage other products or your surroundings.
- Page 13 Folding and unfolding the pedals : 1. To unfold the pedals, lower the pedal as above. 2.To fold the pedals, press inward and then tilt the pedal upward as shown above. Assembly and adjustment of the saddle: Loosen the nut on the seat post clamp to be able to change the height of the seat post in the frame.
- Page 14 IMPORTANT : To determine your saddle height, sit on the bicycle and place a heel on the pedal in the down position with the crank parallel to the seat post. When your leg is extended the saddle height is correct. Recommended saddle height and user size: Wheel dimensions Maximum height of...
- Page 15 charger input plug to the household electrical outlet. 2. Disconnect the input plug from the house power outlet first, then the output plug from the battery. Note: We recommend recharging the battery after each use and at least once a month. The battery should be recharged indoors. 3.4.
- Page 16 in the hand. - Do not wear earphones or any device that may emit sound, or use a hand- held telephone. The wearing of a certified retro-reflective vest is mandatory for all cyclists and passengers riding outside the city at night or when visibility is poor. The manufacturer declines all responsibility if the driver of the bicycle does not comply with the regulations in force.
- Page 17 3.7. HOW TO REMOVE AND REPLACE THE BATTERY 1.To remove the battery, switch off the unit, unlock the battery with the key (1) and remove the battery case by lowering and pulling the handle (2). 2.To replace the battery, place the battery back in its place (with the battery lock facing down), lock the battery with the key and then pull the battery handle all the way up.
-
Page 18: Maintenance And Cleaning
Mileage/Autonomy : Many factors affect the rate of electric power usage and range as outlined in Part 4. In order to maximize the range of your unit, it is important to take note of the following points: - Fully charge the battery before a long trip. -The advertised autonomy is measured under optimal conditions of use. - Page 19 battery that has not been charged for several weeks or less could lose some of its capacity and become impossible to recharge. In addition, it is possible to recharge a lithium battery after each use because there is no memory effect. WARNING: charging the battery must only be done indoors or in a place that is protected from weather (rain, snow, excessive heat...) In order to better preserve your device’s battery, here are some reminders...
- Page 20 elements and screws tightened and in good condition. •Check the tightness of the screws, the front and rear wheels, shock absorbers, and bonnet, and tighten again if necessary. These adjustments may be needed because of vibrations caused by using the device. •...
- Page 21 exceeded, it may fail suddenly, resulting in injury to the operator. Any form of cracking, scratching, or color change in the high stress areas indicates that the life of the component has been reached and must be replaced. WARNING 2: For composite components, impact damage may be invisible to the user, the manufacturer must explain the consequences of impact damage and that in case of impact, composite components must either be returned to the manufacturer for inspection or destroyed and replaced.
- Page 22 RIMS Check the condition of the rim and clean it if it is dirty to avoid premature deterioration. Do not ride with a damaged or cracked rim that could cause an accident. CABLES Make sure that the cable ports are not loose or broken. SCREW Check the screws in the main parts, and make sure to tighten them regularly.
-
Page 23: Faq & Warranty
how to adjust it if necessary. Do not modify the luggage rack, any modification of the luggage rack by the user will invalidate these instructions. Warnings about the risks associated with incorrect assembly or adjustment of the various components of the bicycle: Failure to follow these instructions may result in improper use of your bike, premature wear of certain components that may lead to a fall and/or acci- dent. - Page 24 5.2. WARRANTY For information on warranty conditions and limitations of liability, please refer to the warranty manual provided, or consult it online using the QR code found on the last page or by entering the following ad- dress: download.yeep.me...
- Page 26 TWENTY CIBOX INTERACTIVE 17 allée Jean Baptiste preux 94140 ALFORTVILLE France Made in Poland YEEP025-032021-V1-A...
