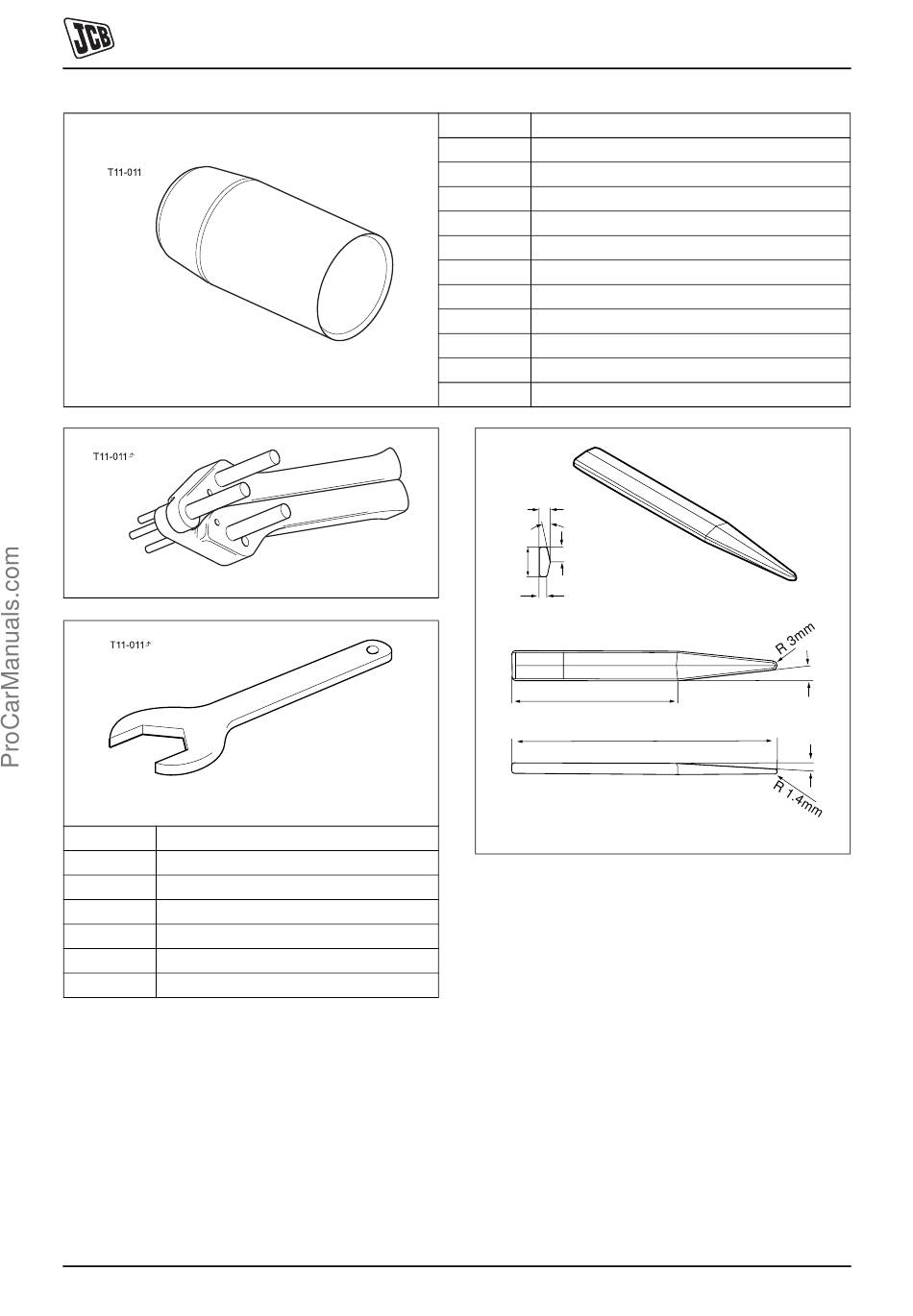

Fig 53. Ram Protection Sleeves
Fig 54. 892/00334 Ram Seal Fitting Tool
Fig 55. Hexagon Spanners for Ram Pistons and End
Caps
992/09300
55mm A/F
992/09400
65mm A/F
992/09500
75mm A/F
992/09600
85mm A/F
992/09700
95mm A/F
992/09900
115mm A/F
992/10000
125mm A/F
1-5-20
Section 1-5 - General Information
892/01016
For 25 mm Rod Diameter
892/01017
For 30 mm Rod Diameter
892/01018
For 40 mm Rod Diameter
892/01019
For 50 mm Rod Diameter
892/01020
For 50 mm Rod Diameter (slew ram)
892/01021
For 60 mm Rod Diameter
892/01022
For 60 mm Rod Diameter (slew ram)
892/01023
For 65 mm Rod Diameter
892/01024
For 70 mm Rod Diameter
892/01025
For 75 mm Rod Diameter
892/01026
For 80 mm Rod Diameter
892/00167
For 90 mm Rod Diameter
7mm
10mm
20mm
5mm
Fig 56. 892/01027 Piston Seal Assembly Tool
9803/3750-05 (1-06-00)
Service Tools
Tool Detail Reference
11 o
110mm
175mm
3 o
1-5-20
