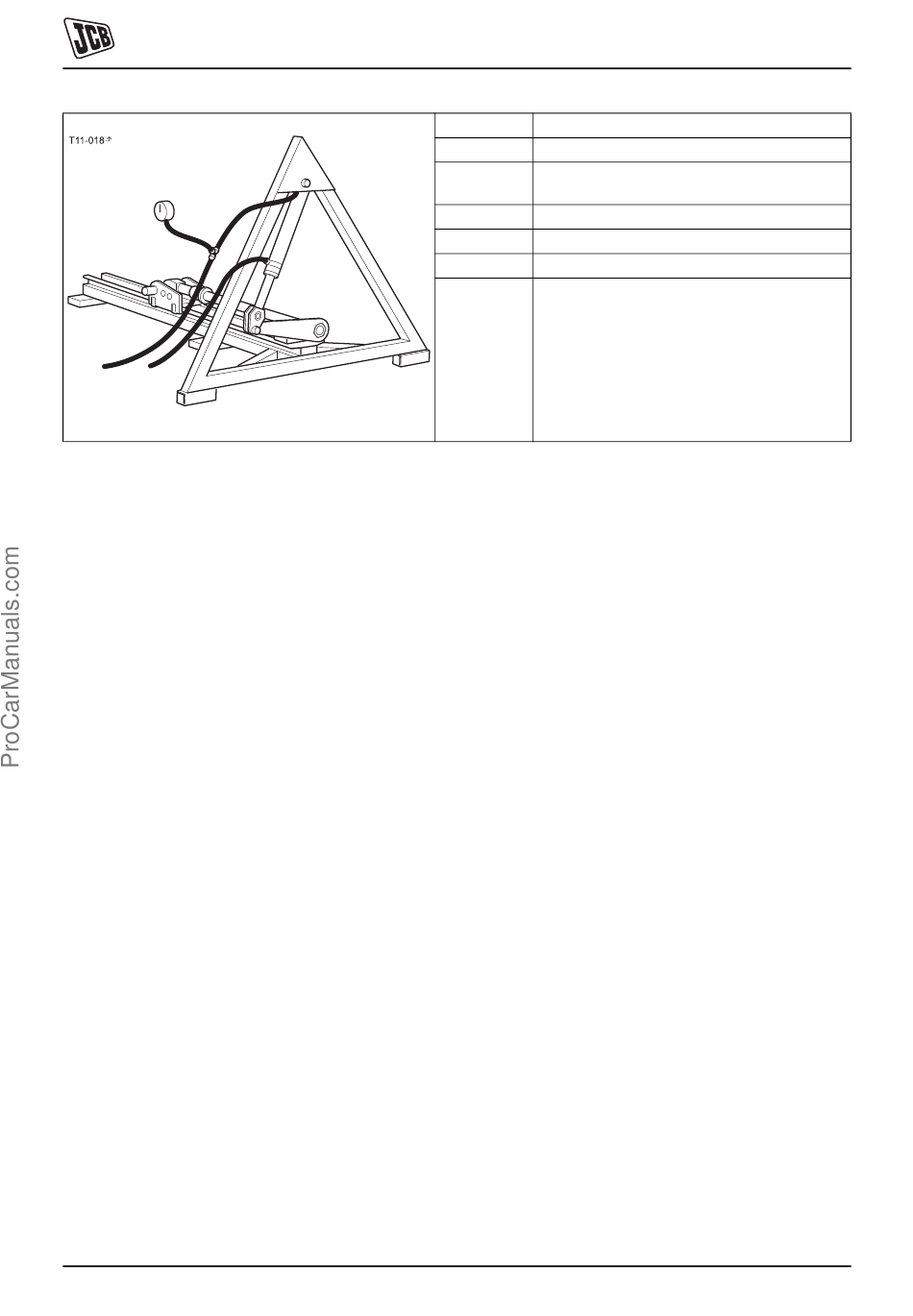

Fig 52. Ram Piston Nut Removal/Fitting Rig
1-5-19
Section 1-5 - General Information
993/99525
Rig Assembly (not including spanners and ram)
993/99522
Anchor Side Plate (supplied loose unwelded)
993/99523
Anchor
unwelded)
993/99524
Ram Eye End Modification Plate Assembly
556/43400
Lift Ram
545/18000
Lynch Pin
811/50232
1.1/4in Pivot Pin
9803/3750-05 (1-06-00)
Service Tools
Tool Detail Reference
Cross
Member
(supplied
loose
1-5-19
