Quick Installation Guide
OPTICAL NETWORK ROUTER
Power adapter input - 100–240 V AC, 50/60 Hz
System power supply - 12V DC, 2A
Operating temperature - 5°C to 45°C
Operating humidity - 5% to 95% RH (non-condensing)
Weight - About 205g
System power consumption - < 12W

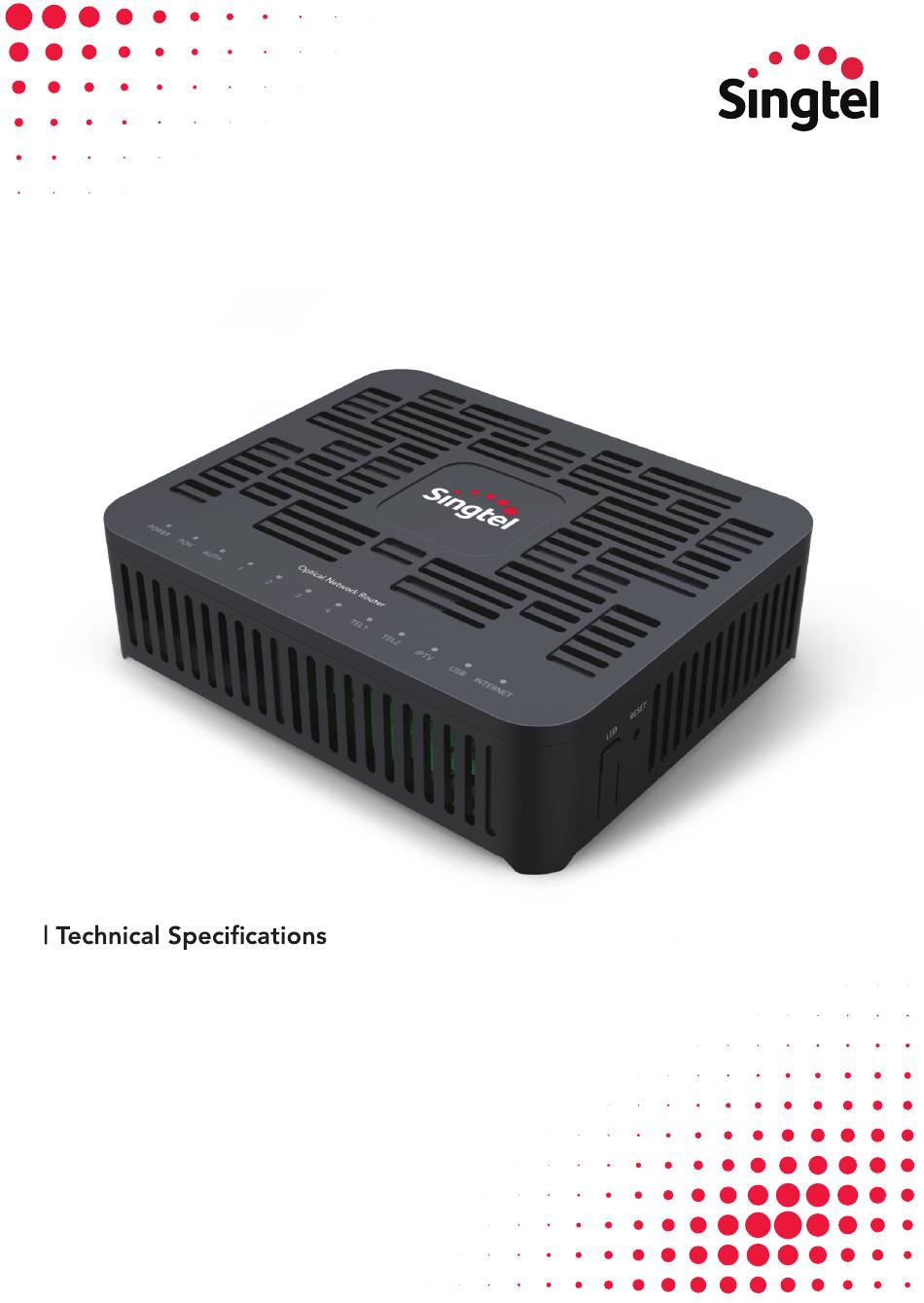

| Product Overview

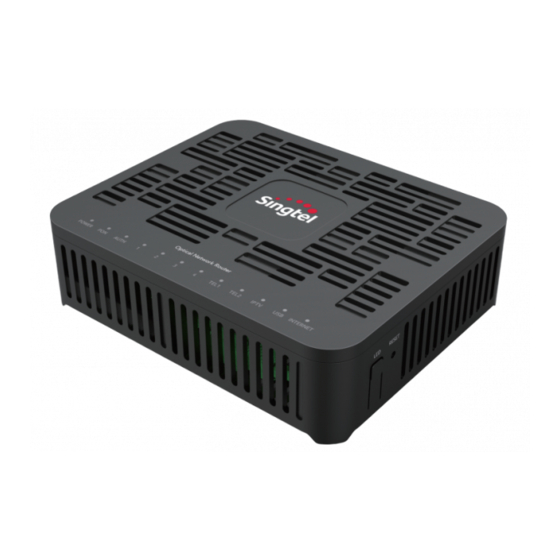

Optical Network Router (ONR) has 4 Ethernet ports
& 2 POTS ports.
Advertisement
Related Manuals for SingTel Optical Network Router
Summary of Contents for SingTel Optical Network Router
- Page 1 System power supply - 12V DC, 2A Operating temperature - 5°C to 45°C Operating humidity - 5% to 95% RH (non-condensing) Weight - About 205g System power consumption - < 12W | Product Overview Optical Network Router (ONR) has 4 Ethernet ports & 2 POTS ports.
-
Page 2: What's In The Box
1. What’s in the box? LAN network cable Power adapter Phone cable This installation guide is also included in the box. 2. Suggested placement of the ONR Do not install the ONR outdoors/cabinets which may be exposed to sun or rain. ONR should be placed horizontally in an open area, such as on your desk. - Page 3 3. Connecting cables and devices to ONR 1. Power port 4. Fiber port 2. Two telephone ports 5. Power switch 3. Four ethernet ports 6. Reset button...
- Page 4 Step 1: Connect the LAN network cable from the Ethernet port of your device to a LAN port, e.g. Computer. Step 2: Connect the phone cable from your phone to the assigned TEL port. Step 3: Connect the power adapter to the ONR’s Power port and your home electrical outlet.
- Page 5 Step 1: Choose Maintenance > FTTH ID Configuration. Step 2: Input the FTTH ID (Use FTTH ID provided by Singtel). Step 3: Click Save. 4.3 Connecting Fiber Cable to the ONR. Connect one end of the fiber Connect the other end of the...
- Page 6 5. Verify if connection is successful LED indicators on the ONR provide status information of each service connection. Each light indicator indicates the success of the connection listed previously in sections 3 and 4: • Fiber connection is up if PON indicator is steady green. •...
-
Page 7: Resetting To Factory Default
6. Resetting to Factory Default What does it do? Resets all settings except the FTTH ID. How do I reset it? Press the Reset button by using a needle-like object and hold for more than 10 seconds. If the LED indicator turns off and on, your ONR has been successfully restored to factory default. -
Page 8: Indicator Descriptions
7. Indicator Descriptions Indicator Status ONR is powered on. The LED displays amber first, Green then green flashing and turns steady green Green flashing ONR is booting up POWER Amber flashing New firmware downloading ONR start up has failed ONR is powered off ONR has ranged successfully Green Green flashing...
