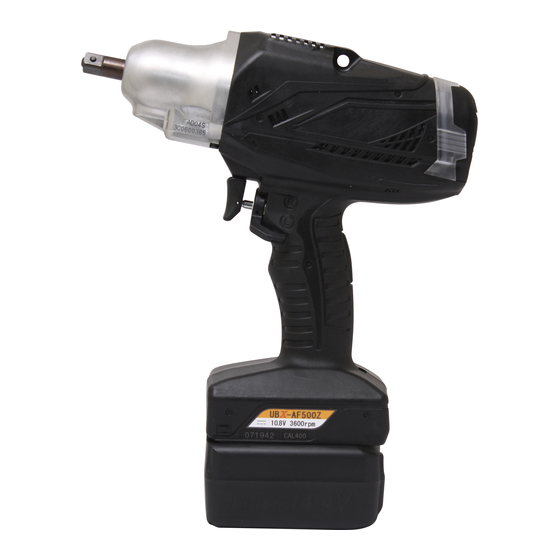

URYU UBX-AF Series Instruction Manual

Cordless transducerised hydraulic impulse tools
Hide thumbs
Table of Contents

Advertisement

Quick Links

UBX-AF series
Cordless Transducerised Hydraulic Impulse Tools
Instruction Manual
(Version 2.0)
-Read all safety warnings, instructions illustrations and
specifications provided with this power tool before installing,
operating, repairing, maintaining, changing accessories on or
working near the power tool. Failure to follow all instructions in
this manual may result in electric shock, fire and/or serious bodily
injury.
-Do not discard the safety and operating instructions. Pass these
instructions onto the personnel in charge of installation, operation
and service. Keep these instructions in an easily accessible place
for future reference.
1-2-11, Fukae-Minami, Higashinari, Osaka, 537-0002, Japan.
TEL : +81-(0)6-6973-9415
email : uryuair@uryu.co.jp
FAX : +81-(0)6-6972-0346
www.uryu.co.jp/en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBX-AF Series and is the answer not in the manual?

Questions and answers

Related Manuals for URYU UBX-AF Series

Summary of Contents for URYU UBX-AF Series

  • Page 1 UBX-AF series Cordless Transducerised Hydraulic Impulse Tools Instruction Manual (Version 2.0) -Read all safety warnings, instructions illustrations and specifications provided with this power tool before installing, operating, repairing, maintaining, changing accessories on or working near the power tool. Failure to follow all instructions in this manual may result in electric shock, fire and/or serious bodily injury.

  • Page 2: Table Of Contents

    Contents ◎ Safety Instructions Symbol Identification 1. Product Description & Features Introduction 1.2 Intended Use 1.3 Features 1.4 What’s In The Box 1.5 Installation 1.5.1 Place To Install 1.5.2 Workstation Requirements 1.6 Li-Ion Batteries & Charger 1.6.1 Battery Packs 1.6.2 Battery Charger 1.6.3 Attaching And Removing Battery Pack...

  • Page 3: Safety Instructions

    Safety Instructions Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or property damage. can lead to serious result depending upon situation.) ・Identification of the Symbols in this Instruction Manual Wear protective, slip-resistant Wear eye protection.
  • Page 4 Personal Safety ・Stay alert, watch what you are doing and use common sense when operating the power tool. Do not use any tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ・Use personal protective equipment.
  • Page 5 Do not place the tool as shown on the left figure. Supporting the tool only on the two points may damage the battery casing. It is recommended to use a URYU genuine tool holder to keep the tool at workplace. Battery Tool Use and Care ・Recharge only with the charger specified by the manufacturer.
  • Page 6 Battery Tool Use and Care ・When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

  • Page 7: Symbol Identification

    Workplace Noise and Vibration Risk Management Follow the instructions of workplace managers and occupational health and safety rules. Carry out risk assessment and implement appropriate controls for noise and vibration at work place. Noise Unprotected exposure to high noise levels can cause permanent, disabling, hearing loss and other problems such as tinnitus (ringing, buzzing, whistling or humming in the ears).

  • Page 8: Product Description & Features

    1. Product Description & Features 1.1 Introduction Congratulations on your selection of the new generation of URYU cordless transducerised hydraulic impulse tool, UBX-AF. Taking environmental issue into consideration, UBX-AF series adopt electricity (battery) as the drive power source. UBX-AF tool has an electric motor driving a hydraulic impulse mechanism for tightening and loosening threaded fasteners.

  • Page 9: What's In The Box

    Adopted SPM brushless motor emits no noise and vibration generated from brushes and reduces tool running cost. PhoeniX series Pulse Technology ⇒ Increased Quality & Performance URYU PhoeniX pulse technology improves accuracy, efficiency and durability. Safety Feature UBX-AF tool stops its operation to minimise impacts from e.g. excessive operation and short circuit to operator and workpiece.

  • Page 10: Battery Packs P8

    Approx. 35 min. Full Charge Approx. 40 min. Approx. 40 min. Approx. 40 min. Weight Approx. 0.30kg Approx. 0.35kg Approx. 0.35kg ・Panasonic Battery Packs workable with UBX-AF series (UBX-AF tool capacity changes.) Battery Packs EYFB32B EYFB30B EYFB41B EYFB43B EYFB50B Voltage DC10.8V DC10.8V...
  • Page 11 1.6.3 Attaching And Removing Battery Pack ・To attach battery, line up the 6 positions (3 positions each on right and left side) of to ol and battery and slide the battery until it locks into position (until you hear the click sound). ・To remove battery from the tool, slide the battery to your side while pressing down the battery lock jaw.

  • Page 12: Battery Charger P8

    2. System Layout 232C Communication Cable (Option) for ID Setup Tool USB Serial Cable (Option) 910-396-0 Battery (not supplied with the product) Battery Pack UBX-AFZ Tool (obtain locally) f/w ZigBee Transmitter UCC-100Z Coordinator Battery Charger f/w ZigBee Receiver (*obtain locally) Wireless (ZigBee) Type *For purchase of Battery or Battery Charger, contact your dealer.
  • Page 13 System Configuration PC, UCC-100Z etc. UCC-100Z Rear panel UCC-100Z Front panel Power Cable Socket (Outlet) RS232C Cable 910-219-0 USB Serial Cable 910-396-0 Setup PC Make sure to ground when 2-prong adaptor is in use. ZigBee Wireless communications UBX-AFZ Tool Sequencer...

  • Page 14: Components & Function

    3. Components & Function 5)OK/NOK Judgement LED Tube Tool Appearance Ventilator Pulse Unit 8) Suspension Bail Hole Sensor 9) ZigBee Communication LED 10) PAN ID changing spot 1) Anvil 11) Setting writing spot Motor 4) LED Work Light 6) Grip Switch 2) Trigger 7) Battery Power Indicator 3) Fwd / Rev Lever...

  • Page 15: Technical Specifications

    We, URYU SEISAKU, LTD., cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure, in an individual risk assessment in a work place situation over which we have no control.

  • Page 16: Operation

    ・Guided deep engagement socket is recommended to minimise torque loss and vibration. Consult your local URYU distributor or URYU Japan for proper sockets. ・A universal joint socket or a socket connector reduces torque output. ・To attach socket to the tool, connect female 3/8” square drive socket and anvil by depressing retainer pin.

  • Page 17: Attention For Operation

    3) Grip Switch to Activate the Built-in Controller Board. Battery power indication LED and ZigBee Communication LED (Green) turns ON. 4) Pull Trigger to operate the tool. Before use, surely check if loosening of a screw, damage on tool’s appearance / battery contact part / spare part is observed.

  • Page 18: Cooling Ventilator P16

    LED blinks. This resets the heating protection even with the overheating motor. Guidance of Suitable Applications for UBX-AF series Example : UBX-AF700Z Working condition : (the same as the durability test condition, See P9. Operating Cycle per Full-Charge) Bolt Size --- M12 Fastening Time per Fastener --- approx.

  • Page 19: Maintenance Instructions

    ・Have your power tool serviced by a qualified repair person. ・Use URYU genuine parts for replacement. This will ensure that the safety and the optimum performance of the tool are maintained. Refer to the parts list and use correct jigs for proper service.

  • Page 20: Exploded View P18

    Exploded View...

  • Page 21: Parts List P19

    Parts List Part Code Index Part name Remarks UBX-AF500Z UBX-AF600Z UBX-AF700Z 12A-025-3 Handle 12A-255-3 Regulator Barrel 12A-012-3 Head Cover 12A-013-3 Handle Upper Cover 12A-901-3 Rear Liner Plate 12A-310-3 Anvil Rear Spacer 12A-902-3 12A-902-5 Liner 12A-319-3 12A-319-5 Anvil 12A-440-3 12A-440-5 Driving Blade (A) 12A-440-4 12A-440-6 Driving Blade (B)

  • Page 22: Trouble Shooting

    6. Trouble Shooting Symptom Possible Reasons Possible Solution ●Insert battery to the tool and touch grip switch. ・Battery is not attached. Tool does not run. ・Battery power indicator does not turn on. ・The tool is under heat protection. ●Do not use the tool until the motor cools down. (Leave the ventilator work until it stops, which will expedite the motor cool down.) ●Change batteries.
  • Page 23 When an error occurs, OK / NOK Judgement LED tube flashes in red. Please check the error display on UEC-4800 controller / UCC-100Z coordinator. NOK Judgement LED tube ・ Error List (Display type shows Error on the monitor screen.) Error Display Content Reference / Measure(s)

  • Page 24: Transportation

    EC Declaration of Conformity WE, URYU SEISAKU, LTD., DECLARE THAT UBX-AF500Z, UBX-AF600Z AND UBX-AF700Z CORDLESS TRANSDUCERISED IMPULSE TOOLS ARE IN COMPLIANCE WITH THE ESSENTIAL REQUIREMENTS OF THE EUROPEAN PARLIAMENT AND THE COUNCIL DIRECTIVES, 2014/30/EU (26 FEBRUARY 2014) ON ELECTROMAGNETIC COMPATIBILITY, 2006/42/EC (17 MAY 2006) ON MACHINERY, 2011/65/EU (8 JUNE...
  • Page 26 Distributed by For further information, contact your nearest URYU distributor or URYU Japan. International Dept. +81 (0)6 6973 9415 +81 (0)6 6972 0346 uryuair@uryu.co.jp UBX-AF-2020-11-12...
