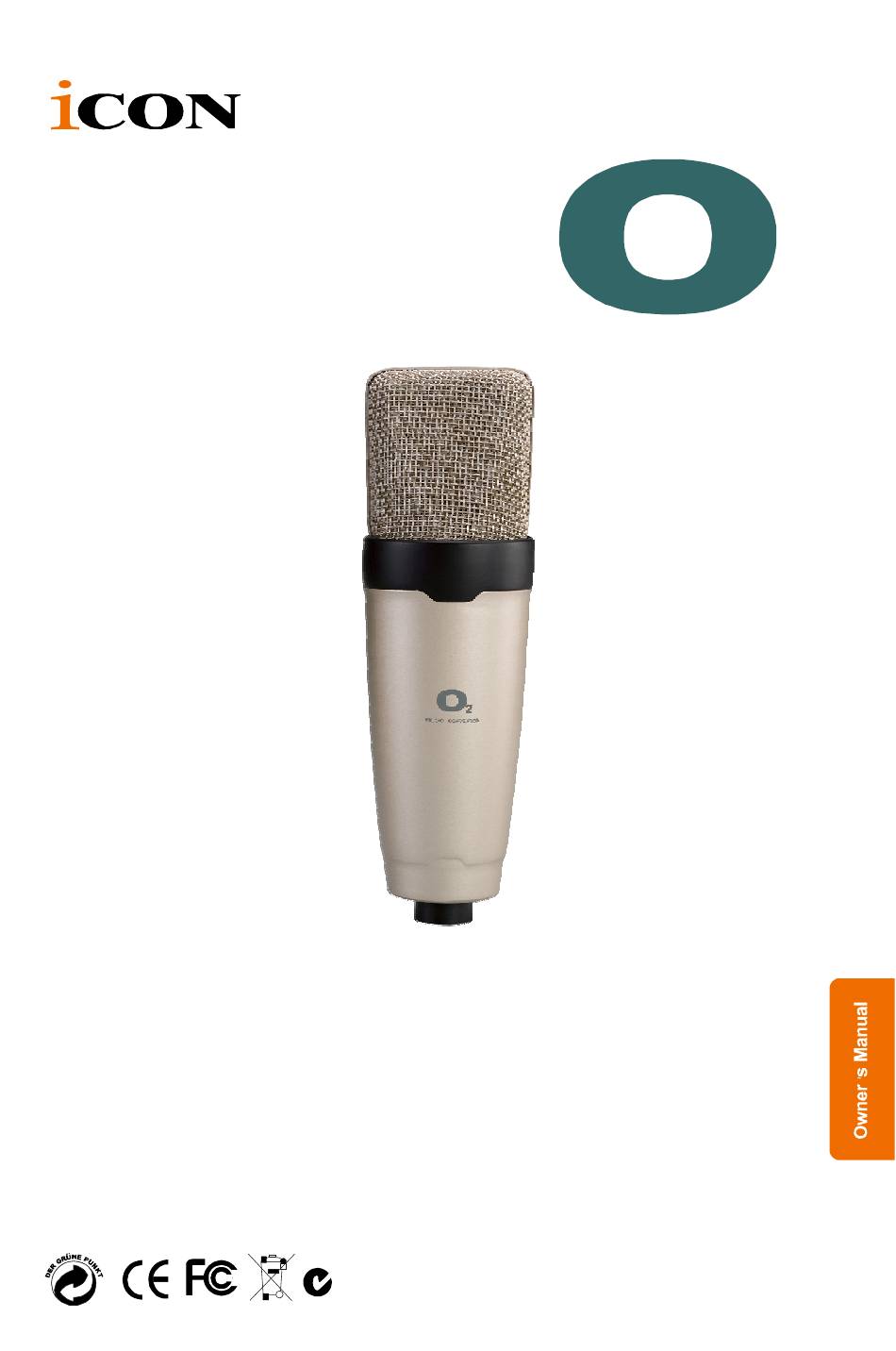

- Page 1 Series Studio Condenser Microphone N16549...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introduction What's in the package Features Operating your O2 Powering the O2 Setting up the signal level Using the PAD Switch Using the Hi-Pass Filter Understanding Polar Patterns Microphone Placement P-Popping Mounting the O2 Specifications Services... -
Page 4: Introduction
ICON products. We recommend that you record your serial number in the space below for future reference. Welcome to ICON, and thank you for becoming part of our worldwide family! Please write your serial number here for future reference: Purchased at:... -
Page 5: Features
Features -10dB Golden painted 19mm capsule Cardioids patterns True 20Hz to 20KHz frequency response with pronounced presence boost Switch able high-pass filter and 10dB pad Low cut Very low self-noise Exceptional low-frequency reproduction High output level High input SPL capability Extremely uniform polar response Classic character and rugged construction Optional swivel mount... -
Page 6: Operating Your O2
Operating your O2 Powering the O2 The O2 is a condenser microphone and therefore needs to be operated by connecting a phantom power supply. Phantom power is standard on most quality mixers, outboard mic-pres and hard disk recorders. If necessary an external phantom supply can also be used. -
Page 7: Using The Hi-Pass Filter
Operating your O2 2. Using the Hi-Pass Filter The O2 offers a user selectable hi-pass, or low-cut filter which you can use to eliminate any unwanted low frequency reproduction. When the Hi-Pass filter is set to the "Flat" (indicated by the straight -10dB line ) position, there is no effect on the signal. -
Page 8: Microphone Placement
For a cleaner solution, try ICON PF-01 pop filter. You can also try placing the micro- phone slightly off axis ( on a slight angle) from the vocalist. This can often... -
Page 9: Mounting The O2
Operating your O2 Mounting the O2 -10dB 1. Place the microphone carefully into the SM-01 shock mount bracket and position the microphone straight into the threaded collar. 2. Tighten the SM-01 threaded collar nearly all the way. Specification Back condenser capsule Acoustical Element Directional pattern Hyper-cardioid... -
Page 10: Services
ICON is not responsible for any damage that occurs due to non-factory packing. 3. Contact your Icon dealer or if none is available, contact the nearest ICON distributor or regional office to obtain a return authorization. If applicable, shipping instructions will be provided by the dealer or from ICON. - Page 12 O2 PD3V200...
