Summary of Contents for ICON U2

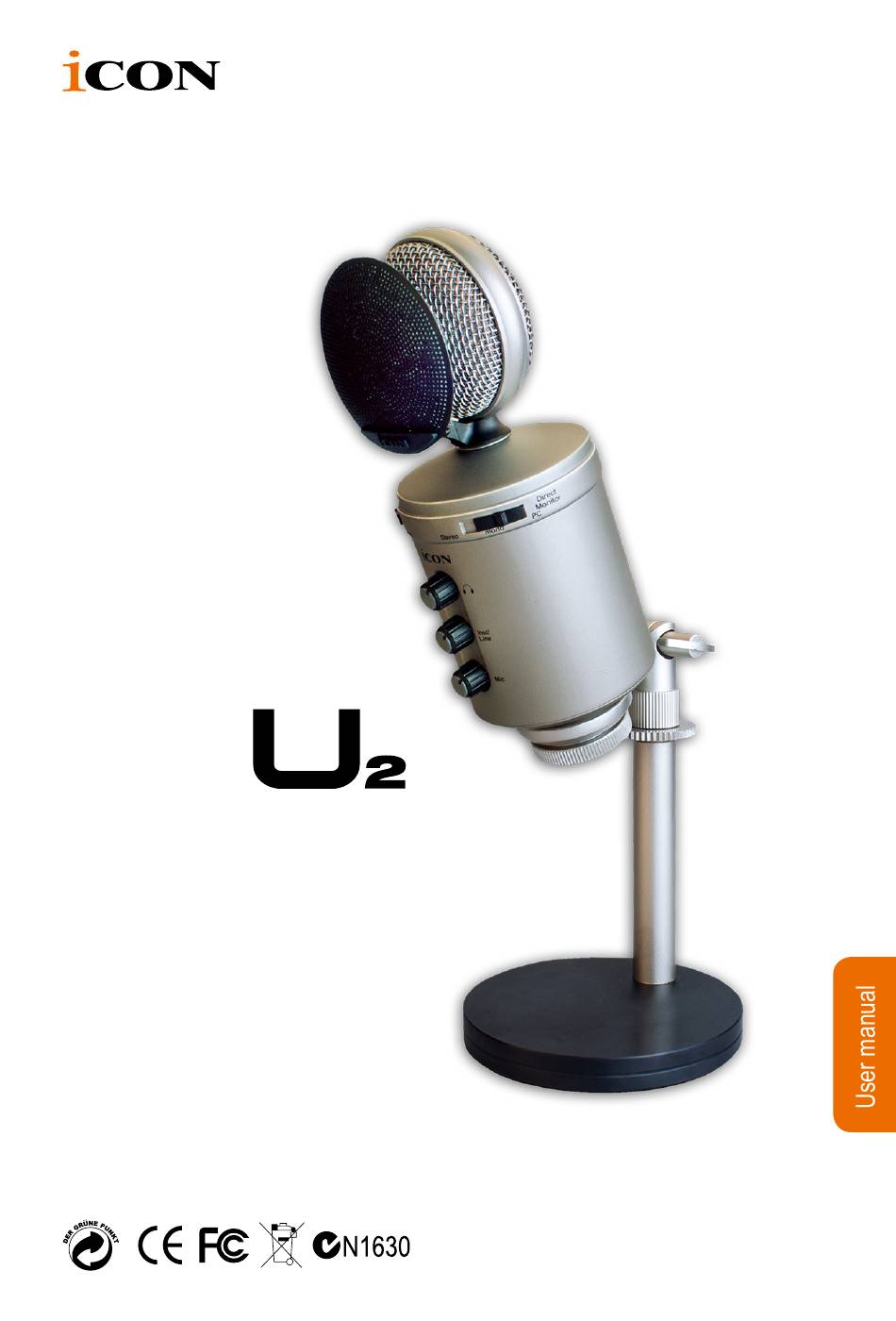

- Page 1 USB large diaphragm condenser recording microphone...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introduction ..........................4 What's in the package? ......................4 Features ..........................5 Operating the U24 .........................6 Specifications ........................9 Services ..........................10... -
Page 4: Introduction
You'll also find a warranty card enclosed---please don't forget to fill it out and mail it so that you can receive online technical support at: www.icon-global.com. And so we can send you updated information about these and other ICON products in the future. As with most electronic devices, we strongly recommend you retain the original packaging. -
Page 5: Features
Features ● High-quality AD convertor with 16-bit, 44.1/48kHz sampling rate ● Low-mass and large, 19mm diaphragm provides excellent frequency response for recording ● Ideal for podcasting, home studio recording, field recording, and voiceover use ● Plug & play into any PC/Mac USB port, no drivers required ●... -
Page 6: Operating The U24
Operating the U24 1. Powering the U24 The U24 is a USB bus powered microphone and no external power supply is needed. When it is plugged into your Mac/PC USB port via the provided USB cable, the power LED ring inside the mic capsule unit will light up (green), indicating that the U24 is powered properly and ready for use. - Page 7 5. Line/Inst input The U24 is equipped a 3.5mm stereo input jack that allows you to input a guitar or line level device for recording. Different cables are provided for different input devices. Input switch (Line & Mic/Inst) For Line input – Slide the switch to the left “Line” position. For Mic/Inst input –...
- Page 8 7. Direct monitoring switch Stereo – For using the Line input signal. Left and right channel signal will be sent to the headphone’s left and right speaker unit correspondingly. Mono – For Mic/Inst input signal. Signal from Mic and Inst will be mixed and sent together to the headphone.
-
Page 9: Specifications
Specifications Element Type ..........19mm Electret condenser type Sample Rate ........... 16bit/48KHz Acoustical operating principle ......Pressure gradient transducer Directional pattern .......... Cardioid Frequency range ..........20Hz – 18KHz Sensitivity ............-42 ± 2 dB/Pa SPL ..............126dB S/N ratio............More than 66dB Power consumption ........ -
Page 10: Services
3. Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing. - Page 11 info@icon-global.com...
