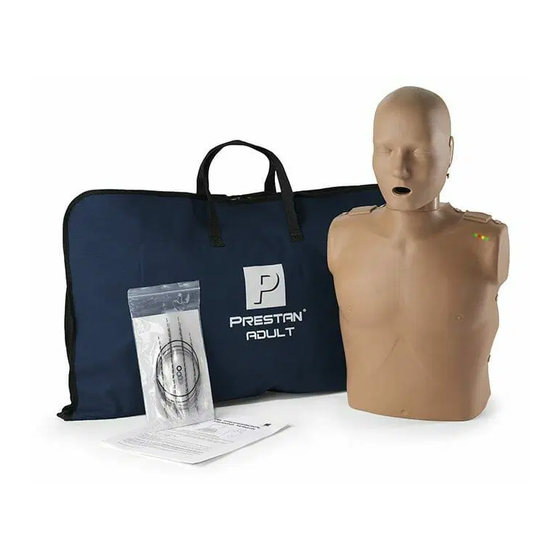

PRESTAN Professional Adult Series 2000 Manikin

Add-On Kit Installation Guide

The PRESTAN Professional Adult Series 2000 Manikin Add-On Kit can be used to

upgrade any PRESTAN Professional Adult or Jaw Thrust Manikin (2018 model or newer).

Tools Needed (not included)

Piston Plug

Add-On Kit

Breath Module

Step 1

Step 2

Pull back skin of manikin torso and

Gently place flathead screw driver into slots,

remove the screw securing the rate monitor.

pry to unsnap wire cover. Carefully remove

wire cover after all snaps are free.

Step 3

Step 4

Place flathead screw driver into slots, pry

Once everything is loose, carefully remove

to unsnap clicker assembly. Carefully

the rate monitor, spring and clicker assembly.

remove after all three (3) snaps are free.

Series2000_AddOnKit_InstallationGuide_12721.V3.pdf

Need help?

Do you have a question about the Adult Manikin 2000 Series and is the answer not in the manual?

Page 1 PRESTAN Professional Adult Series 2000 Manikin Add-On Kit Installation Guide The PRESTAN Professional Adult Series 2000 Manikin Add-On Kit can be used to upgrade any PRESTAN Professional Adult or Jaw Thrust Manikin (2018 model or newer). Tools Needed (not included)
Page 2 PRESTAN Professional Adult Series 2000 Manikin Add-On Kit Installation Guide (continued) Step 5 Step 6 Insert the piston plug as shown Insert Add-On Kit into circular cut out below and press down firmly to secure. and in left shoulder of manikin.
