Summary of Contents for Prestan Professional AED Trainer PLUS 4-Pack

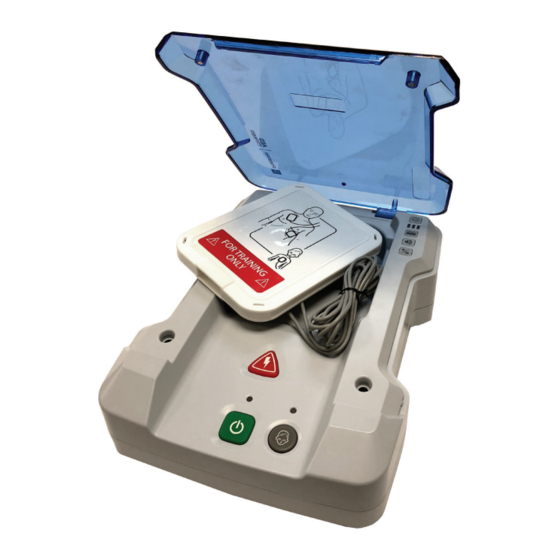

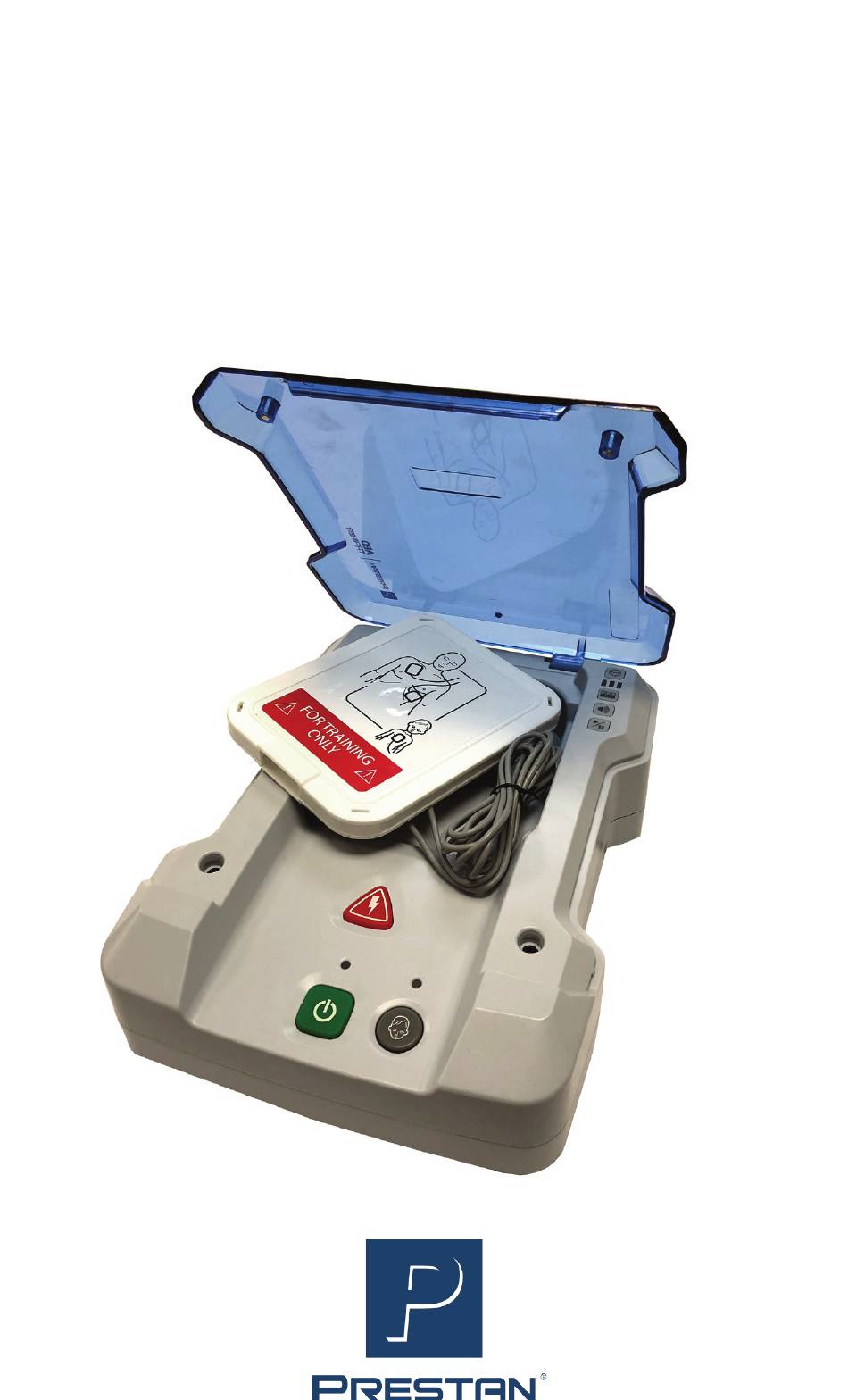

- Page 1 Prestan Professional AED Trainer PLUS...
- Page 2 4-pack carry bag. START HERE - GENERAL INFORMATION • Use this instruction sheet as a reference for the Prestan Professional AED Trainer PLUS and Accessories. Please read through instructions before first use. • Warning: The Prestan Professional AED Trainer PLUS is intended for training purposes only. It is NOT an Automated External Defibrillator (AED) and will not deliver a shock.
- Page 3 • Pads cable is pre-connected to the AED Trainer • Dual graphics allow for adult and child training and shows anatomical placement • Unique pad connector with locking connector pin • Pads are stored in a convenient hard case for adhesive and sensor protection COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 3...
-
Page 4: Front Of Unit
ON / OFF / PAUSE BUTTON CHILD BUTTON BACK OF UNIT PRODUCT INFORMATION LABEL (MODEL / SERIAL NUMBER) BATTERY COMPARTMENT FOUR (4) “C” SPEAKER BATTERIES (PRE- INSTALLED IN UNIT) LANGUAGE MODULE NON-MARKING SILICONE PROTECTIVE FOOT (4) COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 4... -
Page 5: Action Buttons
SHOCK BUTTON • Red Shock Button will flash when program instructs to deliver shock • In Semi-Automatic mode, pushing the Shock Button while it is flashing will simulate delivering a shock and will stop the flashing and resume the program • In Automatic mode, the Shock Button will flash approximately six (6) times before simulating auto- Shock Button shock and resuming the program COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 5... - Page 6 CONNECTOR PIN e. Ensure pads are not installed upside down (pad graphics should be on same side as the large head of the connector pin) PSIDE - continued on next page - COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 6...
- Page 7 Adhere the pads to the INSIDE lids of the white plastic Pad Case, close the case Coil the Cables, place them in the well and cover them with the Pad Case TRAINING PAD REPLACEMENT 1. Prestan training pads will generally last approximately 100 uses (depending on use and care conditions) 2. When needed, it is good practice to replace both pads at the same time 3.
-
Page 8: Control Panel
The SELECTION INDICATOR LIGHTS are below the Language Selection button. The SELECTION INDICATOR LIGHTS are used during the setup of the unit. They indicate settings such as automatic or semi-automatic shock mode, ventilations modes, and metronome. • Indicator lights are read left to right - continued on next page - COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 8... -
Page 9: Volume Button
• When the PAUSE/PLAY BUTTON is pushed, the unit will pause the scenario • When in pause mode, three (3) yellow selection indicator lights ▌▌▌ will blink • Press the PAUSE/PLAY BUTTON again to resume the scenario COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 9... -
Page 10: Programming Options
Use combinations of buttons as directed below to program preferred settings for the unit. AUTOMATIC / SEMI-AUTOMATIC The Prestan Professional AED Trainer PLUS can be set to automatically deliver a simulated shock without depressing the Shock button. • The Prestan Professional AED Trainer PLUS is preset from the factory in Semi- Automatic Mode – the simulated shock is delivered manually by pressing the red Shock Button when instructed and button is flashing • To change this mode:... -
Page 11: Metronome On / Off
Professional AED Trainer PLUS Programming Options - continued METRONOME ON / OFF When doing compressions, the Prestan Professional AED Trainer PLUS will count by tens (10s) as a guide to the rate of 100 compressions per minute. Programming also offers an audible metronome tick (for each compression). This option can be toggled on or off. • The AED Trainer is preset from the factory with metronome ON • To change this mode:... -
Page 12: Feature Settings
Cycles repeat indefinitely following “GIVE 2 BREATHS”. scenario shock pattern until unit is Compression tones and breaths manually shut off. continue for five (5) cycles (two (2) minutes). Unit analyzes patient. Cycles repeat indefinitely following scenario shock pattern until unit is manually shut off. COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 12... -
Page 13: Care And Cleaning Instructions
Professional AED Trainer PLUS CARE AND CLEANING INSTRUCTIONS 1. Store the Prestan Professional AED Trainer PLUS in its case and in a cool, dry area. 2. Always return the training pads to the inside lids of the plastic storage case. This protects the adhesive and sensor. It also allows the sensor to reset the programming for next use. -
Page 14: Troubleshooting Guide
Pad will not stick to • Adhesive is worn out or may • Replace pads (pads last have become dirty approximately 100 uses with the manikin proper care) Contact your Prestan Authorized Distributor for Warranty Assistance COPYRIGHT© 11/30/2018 PRESTAN PRODUCTS, LLC - #12319 Page 14... -
Page 15: Parts And Accessories
Professional AED Trainer PLUS PARTS & ACCESSORIES Contact your Prestan Authorized Distributor for Pricing and Ordering PP-AEDT2-100-R Remote Control for the Professional AED Trainer PLUS 11401 11402 Comes with two (2) ‘AA’ batteries Single Carry Bag for the 4-Pack Carry Bag for the installed. - Page 16 www.prestanproducts.com...
