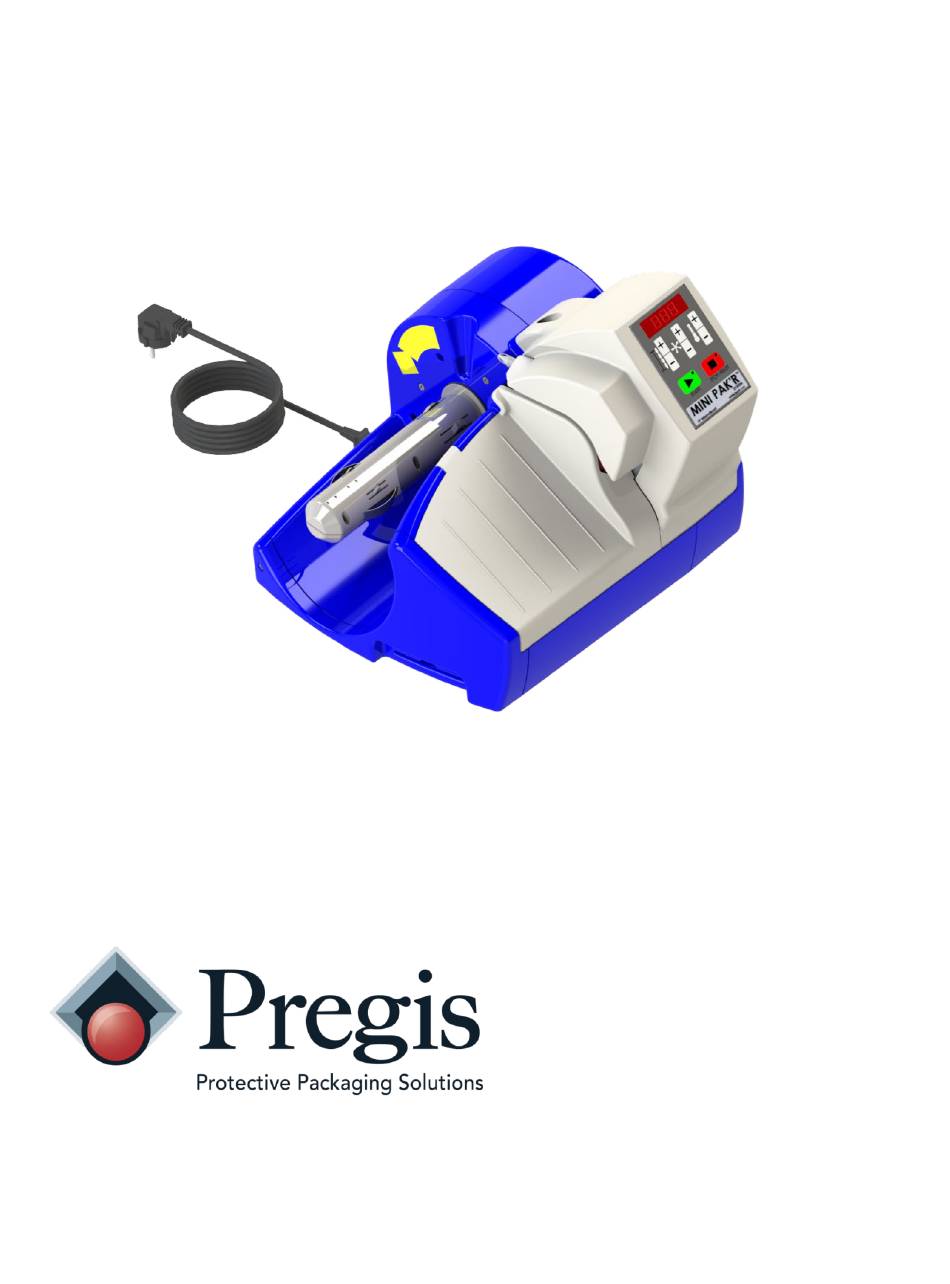

MINI PAK`R
®
V3 air cushion system
V1.1 (Original Manual)
USER MANUAL
Pregis LLC
www.pregis.com
Heerlen, The Netherlands
Deerfield, Illinios USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI PAK'R V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pregis MINI PAK'R V3

  • Page 1 MINI PAK`R ® V3 air cushion system V1.1 (Original Manual) USER MANUAL Pregis LLC www.pregis.com Heerlen, The Netherlands Deerfield, Illinios USA...
  • Page 2: Table Of Contents

    Official agency certifications, declaration documents, and RoHS position statements are available upon request or by visiting our website at www.pregis.com. Table of content: Box Contents ..........................3 Technical Data ........................... 4 Safety instructions ........................
  • Page 3: Box Contents

    Seal temperature control .......................14 Maintaining MINI PAK’R V3 ......................15 Risk of Burn! ..........................15 Improving slit performance ....................15 Display codes ........................- 17 - Error codes .......................... - 17 - Electrical Schematic ......................- 19 - CE Declaration ........................- 21 - Box Contents As you unpack the box, you will find the following: MINI PAK’R V3...
  • Page 4: Technical Data

    Technical Data The MINI PAK’R V3 air cushion system (“the machine” or “the system”) creates air cushions on- demand for use as cushioning, protective wrap, and general transport packaging. Strict compliance with the safety instructions are required to ensure personal safety. (See Safety Instructions in this manual) Specification Film roll product...
  • Page 5: Machine Parts

    Machine Parts 1. Power cord, power switch, fuse 2. Air filling tube 3. Control Panel 4. Upper seal cover 5. Lower seal cover 6. Film roll holder Film roll 1. Film 2. Opened air channel 3. Film core MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page 5 of 21...
  • Page 6: Loading A Film Roll

    Loading a film roll Step1: Connecting power 1. Insert provided Power Cord into the rear of the machine. 2. Plug Power Cord into a dedicated, grounded outlet. 3. Switch machine power ON (I). Film loading Step 2: Push Film Roll onto the Roll Holder...
  • Page 7: Threading The Film

    Step 3: Threading the Film Open the Air Channel at the right side of the Film Roll. Slip the Air Channel over the end of the Air fill tube. Step 4: Advance film Advance film up to bend Push play and hold Guide film through the MINI PAK`R V3 MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230...
  • Page 8: Rotating Control Panel

    Rotating control panel Step1: Disconnect power 1. Switch machine power OFF 2. Remove power cable Step 2: Open cover Unscrew cover lock with screwdriver Open top cover MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page 8 of 21...
  • Page 9 Unclick control panel Step 3: Push lips to the left and push down to move the panel out of the top cover Step 4: Close top cover 1. Close the top cover 2. Check if control panel can be grabbed from the outsize Rotate control panel Step 5:...
  • Page 10 Reposition panel Step 6: 1. Reposition the control panel down into the cover 2. Guide the green flat cable into the cover Step 7: Check green flat cable Check if the green flat cable is inside of the top cover MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page 10 of 21...
  • Page 11 Step 8: Click control panel in place 1. Click control panel back into the top cover 2. Lock top cover with screwdriver MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page 11 of 21...
  • Page 12: Basic Operation

    Basic operation Set air fill level Display Set number of cushions Set seal temperature to produce Green LED Red LED • Blinks while warming up • Solid when ready Start button Stop button • Warm up the machine • Stop production •...
  • Page 13: Sleep Mode

    Sleep mode If the machine is not used for 30 minutes, it will enter “Sleep” mode. The Display will read “SLP”. To resume Air Cushion production, press the Reset Button. The Seal Bar will begin heating. Press the Start Button again when the green LED remains...
  • Page 14: Air Control

    During heat-up or cool down, green LED will flash until the correct temperature has been achieved. If Air Cushions continue to show poor seals and produce flat cushions, contact Pregis for assistance. MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page 14 of 21...
  • Page 15: Maintaining Mini Pak'r V3

    Maintaining MINI PAK’R V3 Risk of Burn! Before opening Covers, turn Power OFF, unplug the Power Cord, and wait 10 minutes for the machine to cool down. Improving slit performance The slit performance can be improved by reposition, flip or replace the slitting blade: If the film jams frequently •...
  • Page 16 4. Unscrew thumbscrew to loosen the blade 5. The slit performance can be improved by repositioning the blade, so that the film is again cut by a sharp section of the blade. This is achieved by a number of options: a) Reposition blade further into the manifold b) Flip the blade on the short...
  • Page 17: Display Codes

    Pregis for assistance and swap the machine. Temp. read fault Clear error and allow machine to reheat. If error repeats, cycle power. If error repeats, contact Pregis for assistance and swap the machine. Temp. read fault Clear error and allow machine to reheat. If error repeats, cycle power.
  • Page 18 Remove USB device. Contact Pregis for assistance and compatible swap the machine. Incorrect USB file Format USB to FAT or FAT32, Use Pregis recommended format USB drive, not all drives are compatible. Control board Unexpected reset detected. Contact Pregis for assistance reset and swap the machine.
  • Page 19: Electrical Schematic

    Electrical Schematic MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page - 19 - of 21...
  • Page 20 MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page - 20 - of 21...
  • Page 21: Ce Declaration

    CE Declaration MINI PAK’R V3 - MM2I2IN115 / MM2I2IN230 Page - 21 - of 21...
