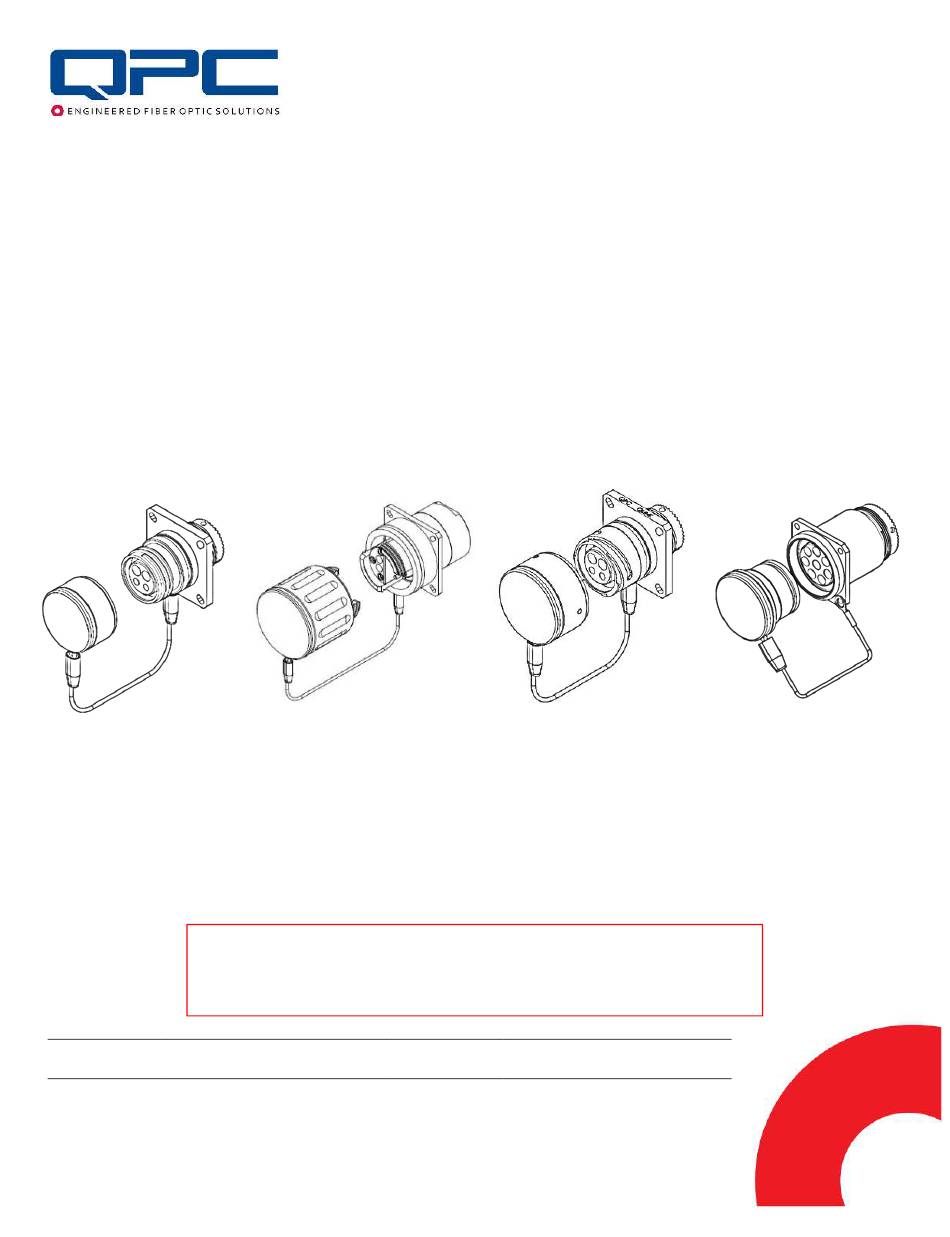

Customer Assembly Instructions
Threaded / Hermaphroditic / Reverse Bayonet / Push Pull
THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE SOLE PROPERTY
OF QPC FIBER OPTIC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF QPC FIBER OPTIC IS PROHIBITED.
Document:
CAI-QLR-01
Release Date:
08/13/2019
QPC Fiber Optic, LLC
27612 El Lazo Road, Laguna Niguel, CA 92677
CAI-QLR-01: QLink Receptacle Customer Assembly Instructions
QLink Receptacle
Jam Nut & Flange Mount
DOCUMENT:
REVISION:
REVISION DATE:
QPC CONFIDENTIAL
Revision Date:
www.qpcfiber.com
Ph: (949) 361-8855
CAI-QLR-01
8/13/2019
Revision:
0
--/--/----
Page 1 of 11
0
Advertisement
Table of Contents
Related Manuals for QPC QLink
Summary of Contents for QPC QLink
- Page 1 REVISION DATE: 8/13/2019 QPC CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE SOLE PROPERTY OF QPC FIBER OPTIC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF QPC FIBER OPTIC IS PROHIBITED. Document: CAI-QLR-01 Revision:...
-
Page 2: Main Components
CAI-QLR-01: QLink Receptacle Customer Assembly Instructions SCOPE This document will describe the Assembly Instructions for the QLink Receptacle Jam Nut and Flange Mount Connector in the Threaded, Hermaphroditic, Reverse Bayonet and Push Pull configurations for all cable sizes. MAIN COMPONENTS... -
Page 3: Tool List
TOOL LIST TK-054 QPC QLink Tool Kit – (Equivalent tools may be used) PT-117 QLink Fiber Optic Termini / Size 8 & Size 12 Contact Insertion Tool PT-596 QLink Size 16 Contact Insertion Tool PT-446 QLink Fiber Optic Termini Removal Tool... -
Page 4: Torque Table
CAI-QLR-01: QLink Receptacle Customer Assembly Instructions TORQUE TABLE Sleeve Component Backshell / Backnut Strain Relief Set Screws Retainer Shell Size 13 – 15 17 – 19 21 – 31 80 – 97 in-lb 89 – 106 in-lb 106 – 124 in-lb 97 –... - Page 5 CAI-QLR-01: QLink Receptacle Customer Assembly Instructions Strip cable jacket 6” from end. Separate Kevlar and remove any additional cable elements with Kevlar Scissors PT-062. Slide base of wedge strain relief back to jacket edge. Slide Insert of wedge strain relief inside base and push between the Kevlar and the individual fibers / wires.
- Page 6 CAI-QLR-01: QLink Receptacle Customer Assembly Instructions TERMINATE For Cable Options with Backshell Configurations Use the Stripping Length Diagrams in the Appendix located in the back of this Assembly Instruction for the desired connector configuration to Terminate and polish the fiber and install the Electrical Contacts using the provided Fiber Optic Termini / Contacts.
- Page 7 CAI-QLR-01: QLink Receptacle Customer Assembly Instructions POPULATE INSERT Use appropriate Insertion (Tool PT-117 or PT-596) to insert Fiber Optic Termini or Contacts according to the desired pinout (varies by connector size and channel count). Image below shows a hybrid insert.
- Page 8 CAI-QLR-01: QLink Receptacle Customer Assembly Instructions Removing Pin, Socket or Contact – To remove Fiber Optic Termini from the Insert cavities, use the Fiber Optic Termini Removal Tool PT-446. To remove Contacts from the Insert cavities, use the Contact Removal Tool (PT-443, PT-445 or PT-449) depending upon the size of the Contacts. Insert tool from the front and continue to compress the tool until the Fiber Optic Termini or contact ejects in the back from the retained position.
-
Page 9: Connector Assembly
CAI-QLR-01: QLink Receptacle Customer Assembly Instructions Removing MT Ferrules – To remove MT Ferrules from Insert cavities, unscrew the 4 screws from the back of the insert, remove Insert Cap, slide the MT Ferrule out of the way, and then use the “Remove” side of the same tool, PT-480, to push the Spring Push out. - Page 10 CAI-QLR-01: QLink Receptacle Customer Assembly Instructions STRAIN RELIEF ASSEMBLY BOOT / BEND LIMITER OPTION: Secure Receptacle in a 4” Drill Press Vise PT-591. Screw Backshell Cover over Spacer. Attach the Adjustable Crow’s Foot Wrench PT-536 or PT-546 onto Dial Torque-Measuring Wrench PT-506 and torque per values in Torque Table above.
-
Page 11: Appendix A: Stripping Lengths - Qlink Receptacle With Backshell All Sizes
APPENDIX A: STRIPPING LENGTHS – QLink RECEPTACLE WITH BACKSHELL ALL SIZES AND CONFIGURATIONS D50110 – QLink THREADED AND REVERSE BAYONET PLUG or RECEPTACLE, FIBER OPTIC TERMINI D50111 – QLink THREADED AND REVERSE BAYONET PLUG or RECEPTACLE, HYBRID D50112 – QLink THREADED AND REVERSE BAYONET PLUG or RECEPTACLE, MT D50113 –... -
Page 12: Cable Preparation
QLink THREADED AND REVERSE BAYONET PLUG or RECEPTACLE FIBER OPTIC TERMINI SIZE 13 - 23 SIZE 13 - 23 SOCKET TERMINI PIN TERMINI 3.64 [92.5] 3.64 [92.5] SIZE 25 - 31 SIZE 25 - 31 SOCKET TERMINI PIN TERMINI 3.79 [96.3] 3.79 [96.3]... - Page 13 DOC. NUMBER REV. PROPRIETARY AND CONFIDENTIAL D50111 THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER CHECKED OPTIC. ANY REPORDUCTION IN PART DRAWN OR AS A WHOLE OR DISCLOSURE OF DIMENSIONS ARE IN INCH[MM].
- Page 14 DOC. NUMBER REV. PROPRIETARY AND CONFIDENTIAL D50112 THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER DRAWN CHECKED OPTIC. ANY REPORDUCTION IN PART OR AS A WHOLE OR DISCLOSURE OF DIMENSIONS ARE IN INCH[MM].
- Page 15 REV. PROPRIETARY AND CONFIDENTIAL D50113 THE INFORMATION CONTAINED IN 1.36 [34.4] THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER CHECKED OPTIC. ANY REPORDUCTION IN PART DRAWN OR AS A WHOLE OR DISCLOSURE OF DIMENSIONS ARE IN INCH[MM].
- Page 16 DOC. NUMBER REV. PROPRIETARY AND CONFIDENTIAL D50114 THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER CHECKED OPTIC. ANY REPORDUCTION IN PART DRAWN DIMENSIONS ARE IN INCH[MM]. OR AS A WHOLE OR DISCLOSURE OF CONTENT WITHOUT THE WRITTEN QPC Fiber Optic, LLC.
- Page 17 DOC. NUMBER REV. PROPRIETARY AND CONFIDENTIAL D50115 THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER DRAWN CHECKED OPTIC. ANY REPORDUCTION IN PART OR AS A WHOLE OR DISCLOSURE OF DIMENSIONS ARE IN INCH[MM].
- Page 18 QLink PUSH PULL PLUG or RECECEPTACLE FIBER OPTIC TERMINI SIZE 13 - 23 SIZE 13 - 23 SOCKET TERMINI PIN TERMINI 4.30 [109.2] 4.30 [109.2] SIZE 25 - 31 SIZE 25 - 31 SOCKET TERMINI PIN TERMINI 4.45 [113.0] 4.45 [113.0] 1.19 [30.2]...
- Page 19 QLink PUSH PULL PLUG or RECEPTACLE, HYBRID PIN TERMINI SOCKET CONTACT SIZE 13-23 SIZE 13-23 SOCKET TERMINI PIN CONTACT 4.30 [109.2] 4.22 [107.2] 4.51 [114.6] 4.30 [109.2] PIN TERMINI SOCKET CONTACT SIZE 25-31 SIZE 25-31 PIN CONTACT SOCKET TERMINI 4.45 [113.0] 4.37 [111.0]...
- Page 20 QLink PUSH PULL PLUG or RECEPTACLE, MT MT Ferrule w/o Pins MT Ferrule w/ Pins 4.30 [109.2] CABLE PREPARATION DOC. NUMBER REV. PROPRIETARY AND CONFIDENTIAL D50118 THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND THE SOLE PROPERTY OF QPC FIBER...
- Page 21 APPENDIX B - QPC Fiber Optic - QLink Contact Crimp Tools / Settings Wire Size Range Turret / Turret Color Crimp Selector QPC P/N Contact Size Pin / Socket Crimp Tool Wire Size (AWG) (AWG) Positioner Setting Number Blue QLINK-CTC-1624P...
