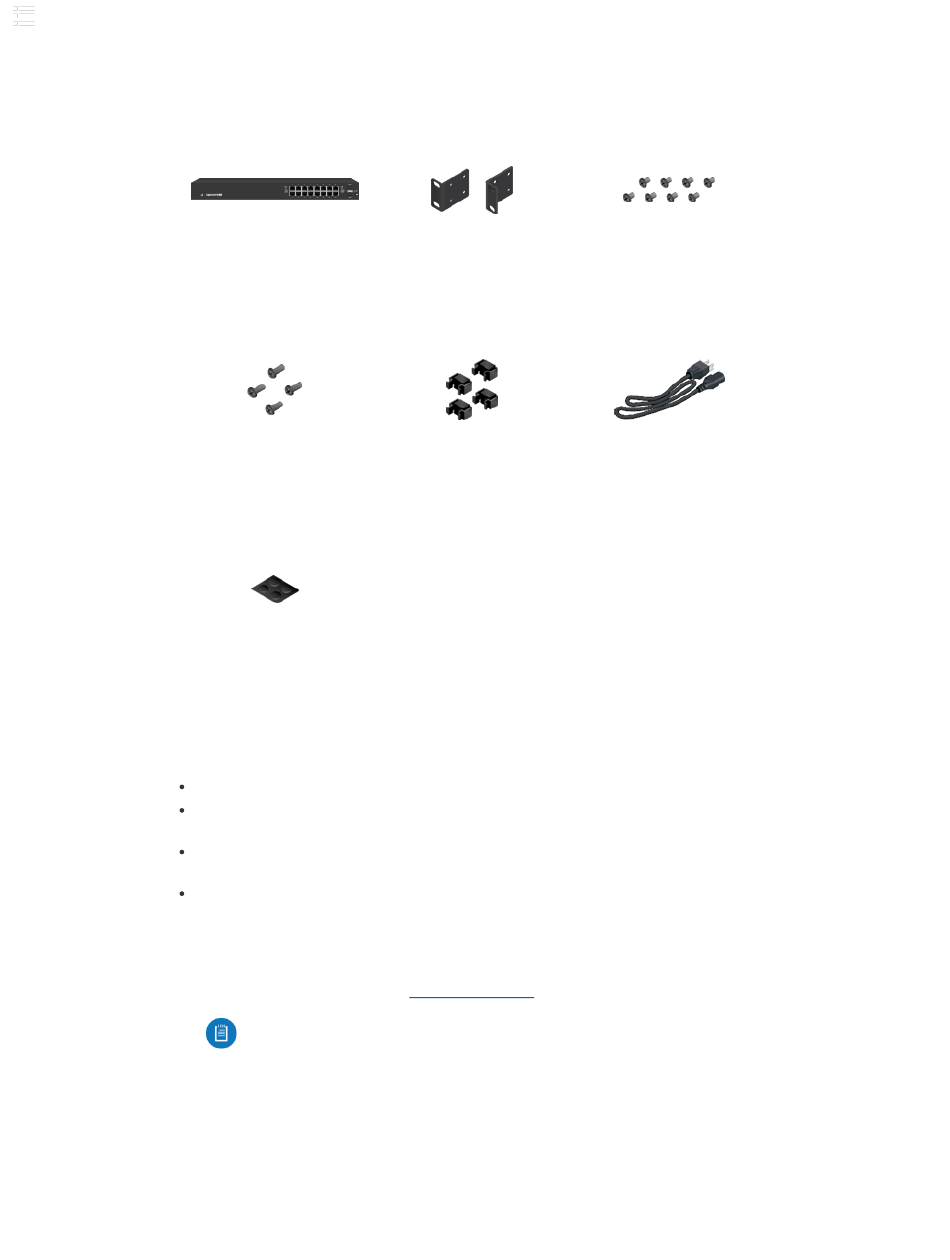

Package Contents

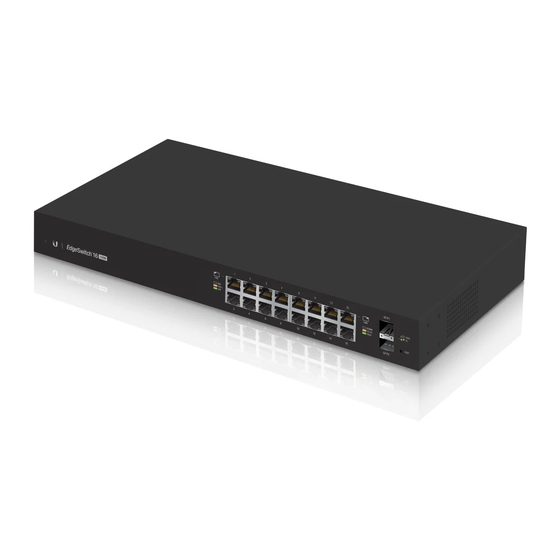

EdgeSwitch ES-16-150W
Mounting Screws (Qty. 4)
Rubber Feet (Qty. 4)
Installation Requirements
Phillips screwdriver (for rack or wall mounting)
Standard-sized, 19" wide rack with a minimum of 1U height available (for rack
mounting)
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor
use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit:
Note:
Although the cabling can be located outdoors, the EdgeSwitch itself
should be housed inside a protective enclosure.
Hardware Overview
ES-16-150W Quick Start Guide
Mount Brackets (Qty. 2)
Cage Nuts (Qty. 4)
ui.com/toughcable
Bracket Screws (Qty. 8)
Power Cord
Advertisement
Table of Contents
Related Manuals for Ubiquiti ES-16-150W
Summary of Contents for Ubiquiti ES-16-150W
- Page 1 ES-16-150W Quick Start Guide Package Contents EdgeSwitch ES-16-150W Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Rubber Feet (Qty. 4) Installation Requirements Phillips screwdriver (for rack or wall mounting) Standard-sized, 19" wide rack with a minimum of 1U height available (for rack...
- Page 2 The System LED functionality has been updated with firmware v1.8.0. We recommend that you update the EdgeSwitch to the latest firmware. Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti® Network White Management System (UNMS™). See “UNMS Management”.
-
Page 3: Hardware Installation
RJ45 (Ports 1 - 16) ES-16-150W Quick Start Guide RJ45 ports support 10/100/1000 Ethernet connections. SFP (Ports 1 - 2) Hot-swappable SFP ports support 1 Gbps connections. Reset Button Click here to learn how to reset an EdgeSwitch to factory defaults. -
Page 4: Wall Mounting
ES-16-150W Quick Start Guide Wall Mounting... - Page 5 ES-16-150W Quick Start Guide Connecting Power Connecting Ethernet...
- Page 6 ES-16-150W Quick Start Guide Connecting SFP...
-
Page 7: Accessing The Configuration Interface
ES-16-150W Quick Start Guide For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility Accessing the Configuration Interface By default, the EdgeSwitch will try to get its IP address automatically using DHCP. If that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the appropriate section, DHCP or “Fallback IP... - Page 8 ES-16-150W Quick Start Guide For more information, refer to the EdgeSwitch documentation, which is available at ui.com/download/edgemax Fallback IP Address 1. Ensure that your computer (or other host machine) is connected to the EdgeSwitch. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
-
Page 9: Specifications
6. Change the IP Address to a unique IP address. Click Apply. ES-16-150W Quick Start Guide Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address. -
Page 10: Safety Notices
ES-16-150W ES-16-150W Quick Start Guide Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. -
Page 11: Declaration Of Conformity
CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
