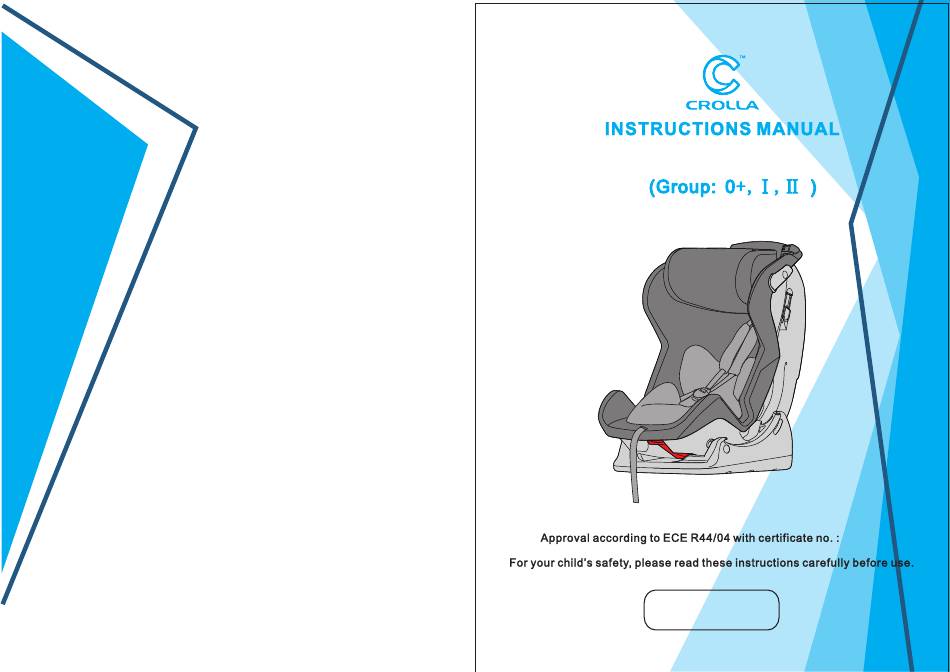

- Page 1 MODEL:ALPHA 04301347 New born-7 years old...
- Page 3 Headrest locator / 9. Always make sure that any straps holding the seat restraint to the vehicle shoulder strap height locator shall be tight , any straps restraining the child should be adjusted according to the child’s body, and check that the straps shall not be twisted. 10.
- Page 4 3.Usage 13. The rigid items and plastic parts of a child restraint must be so located 3.1 Install position of the child seat in vehicle and installed that they are not liable , during everyday use of the vehicle Correct fitting/suitable Incorrect fitting/not suitable to become trapped by a moveable seat or in a door of the vehicle.
- Page 5 Steps to buckle the harness Engage the buckle connecter until it clicks. Press the red recline adjustment handle, and adjust the child restraint to the proper position. There is one recline angle for baby mode (recline angle number 4), it is marked as blue triangles.
- Page 6 3.6 Adjust the shoulder strap height and the headrest Notice: be sure to loosen the harness before adjust the headrest locator/shoulder strap height locator ,see 3.4 Pull out the headrest locator, then you can adjust the height of the headrest up and down to ensure that the position of the headrest fits the child's shoulder height, and at the same time, the height of the shoulder strap will also be changed accordingly.
- Page 7 Step 2: Fasten the belts in the Step 3: Fasten the belts in the Step 4: Open the lock-off device forward red safety-belt slots at the rearward blue safety-belt slots at the and insert the safety belt through back of the body. Shoulder belt back of the body.
- Page 8 Step 3: Position shoulder belt through shoulder belt guide, pass waist belt through seat slots. Fasten buckle and pull the vehicle belt to tighten...
- Page 9 5.2 Washing instruction Never use any solvant, chemical detergent or lubricant on any part of your child seat. 30℃ Hand wash, Do not bleach Dryclean, any Do not tumble dry Do not iron water solvent except temperature trichloroethylene. below 30℃ 6.3 Remove and assemble the fabric cover Firstly, remove the crotch pad and buckle of the child seat (see 3.
