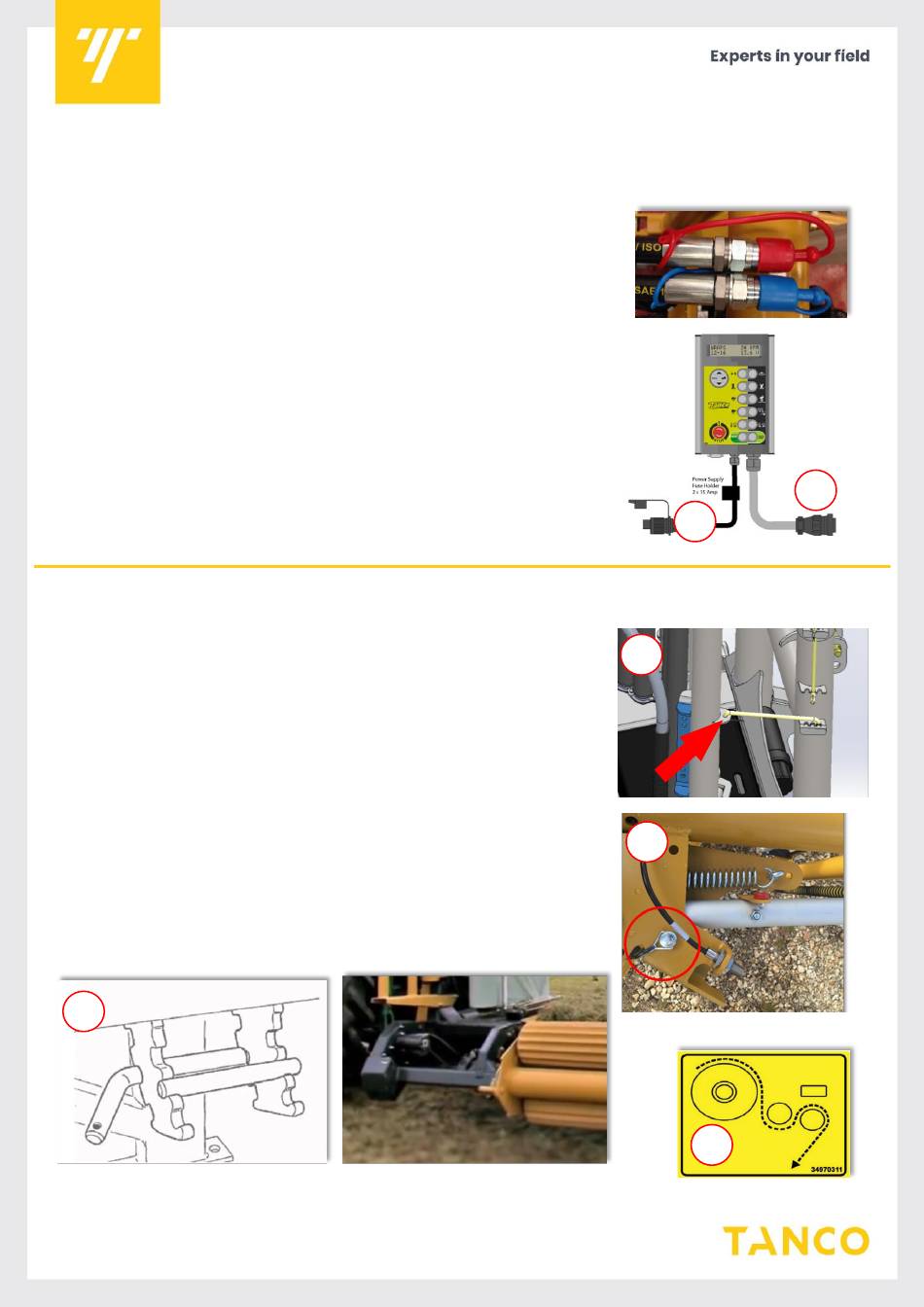

1540 EH QUICK REFERENCE GUIDE
The quick reference guide is not a substitute for the Operators Manual!
Please refer to Operators Manual for more detailed information

TRACTOR CONNECTION

1. Hydraulics
Red pipe
> Supply (30-35lpm)
Blue pipe
> Return (Free flow return!!)
2. Electrics
A. Connect 12V supply to 3pin plug
B. Connect wrapper harness to controller

ENTERING THE WORKING POSITION

1. Remove the wrap arm transport lock.
2. Position the safety arms into the working
position by removing the retaining pin.
3. Adjust the roller arm stops. This is done by
adjusting the position of the pin. This should
be done for different size bales.
3
4. Install the roll of film and attach the film to
the Cut & Start.
A
1
2
4
B
