Tanco 1400 V Quick Reference Manual

1400 V QUICK REFERENCE GUIDE

The quick reference guide is not a substitute for the Operators Manual!

Please refer to Operators Manual for more detailed information

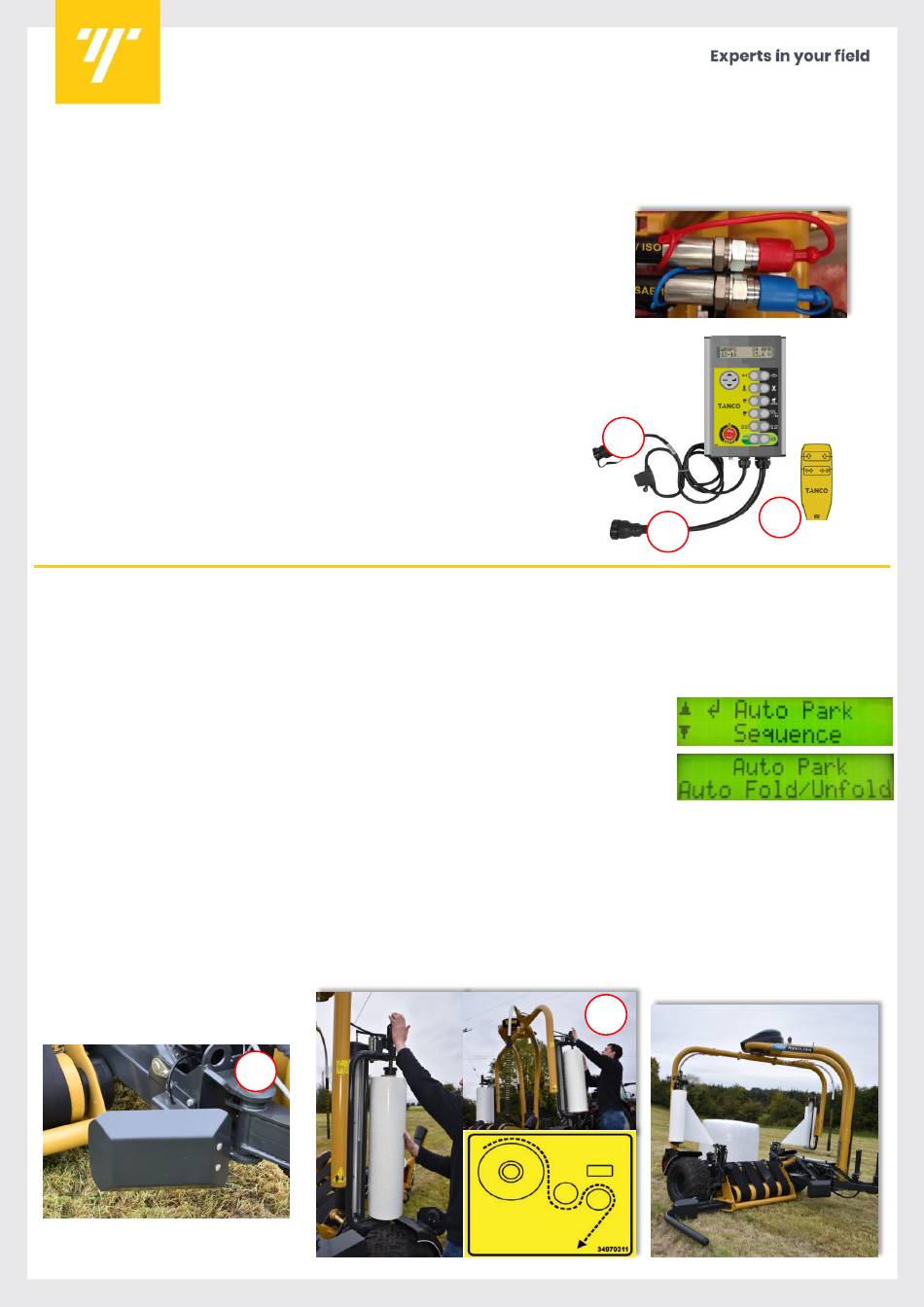

TRACTOR CONNECTION

1. Hydraulics

Red pipe

> Supply (35-40lpm)

Blue pipe

> Return (Free flow return!!)

2. Electrics

A. Connect 12V supply to 3pin plug

B. Connect wrapper harness to controller

C. Connect hand remote to controller

1. Switch on controller using the red switch

2. Enter the Auto Park Sequence

Press the Down arrow to get to the Auto Park Sequence

Press Enter

Press and hold the Unfold drawbar button until End is

displayed.

The 1400V wrapper will now be in the working position

3. Install the 2 rolls of film

4. Set the Auto Load paddle into the

working position (if using Auto Load).
