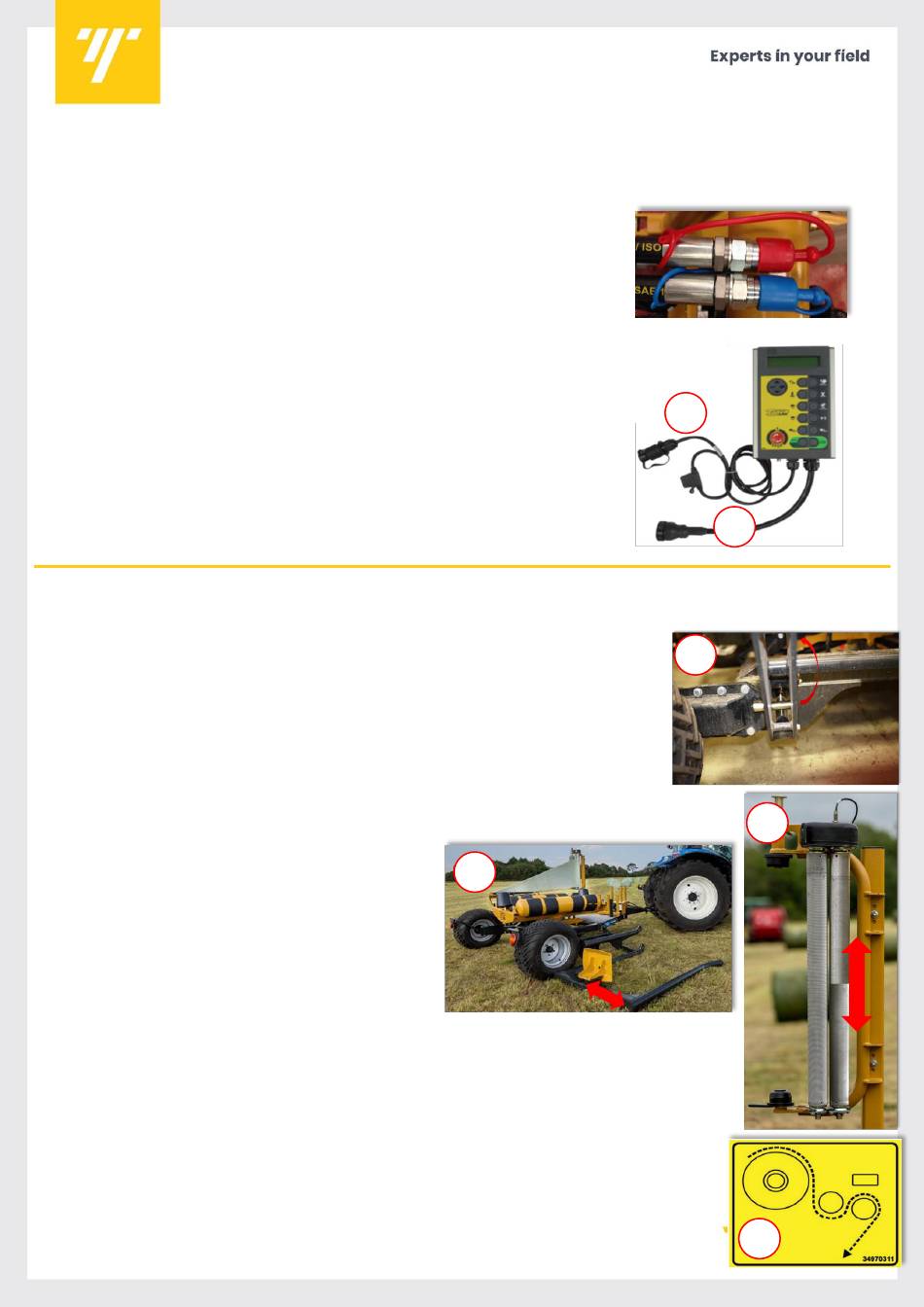

A100 EH QUICK REFERENCE GUIDE
The quick reference guide is not a substitute for the Operators Manual!
Please refer to Operators Manual for more detailed information
TRACTOR CONNECTION
1. Hydraulics
Red pipe
> Supply (25-35lpm)
Blue pipe
> Return (Free flow return!!)
2. Electrics
A. Connect 12V supply to 3pin plug
B. Connect wrapper harness to controller
ENTERING THE WORKING POSITION
1. Remove the transport pin from the load arm.
2. Adjust the load arm width to suit the correct
bale size.
3. Adjust the position of the dispenser to
ensure that the film will be applied to the
centre of the bale.
4. Add the film roll into the dispenser, ensuring
that it is threaded correctly, and attach the
film to the Cut & Start.
2
A
B
1
3
4
