Technical data:
Nominal voltage
Nominal current
Switched off delay
Output current
Pin arrangement
Housing material
Permissable ambient temperature
Type of protection
Outputs
LED-display
Probe type

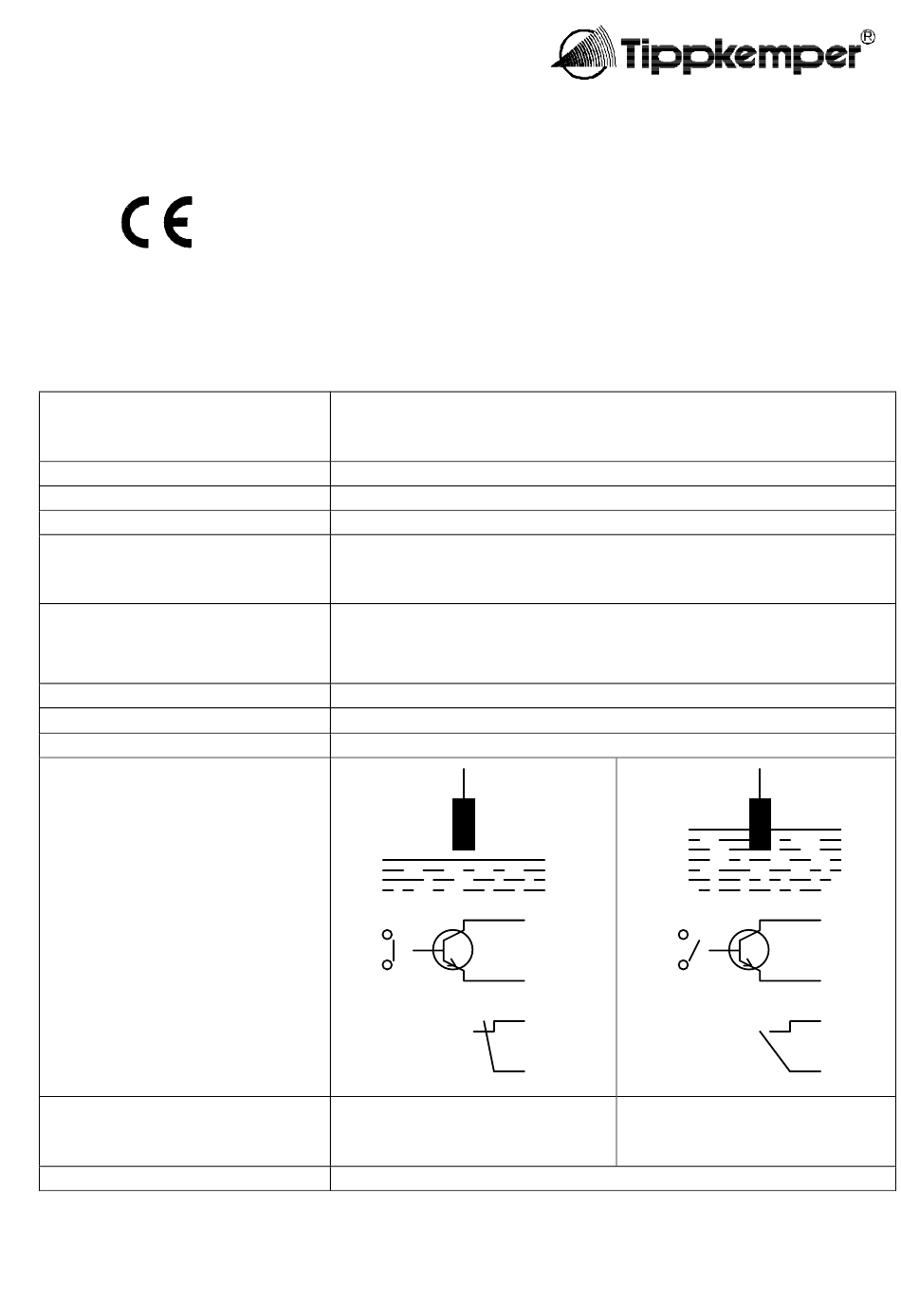

Capacitance Level Sensor
CNS-SV 25 T
Level control for:
•
waxes
•
granulates
•
paints
•
hot-melt adhesives
•
chemicals
Type
CNS-SV 25T
Choice of 12-30V/DC or 110-250V/AC 50Hz
30 mA
Variable from 0 to 5 seconds
Relais:
max. 3A (Ohmic Load), when switching inductive loads
Transistor: max.1A, short-circuit proof
8
7
+ NPN -
Transistor
Makrolon
0°C to +80°C
IP 53 / EN40050
red
LED on
yellow LED on
C...
the use of noise suppressors recommended.
6
5
4
C
NO
+
Relay
12-30V/DC
+
NPN
-
C
NO
3
2
1
-
N
L
110-250V/AC
green LED on
yellow LED on, as long as the
delay time is completed.
+
NPN
-
C
NO
