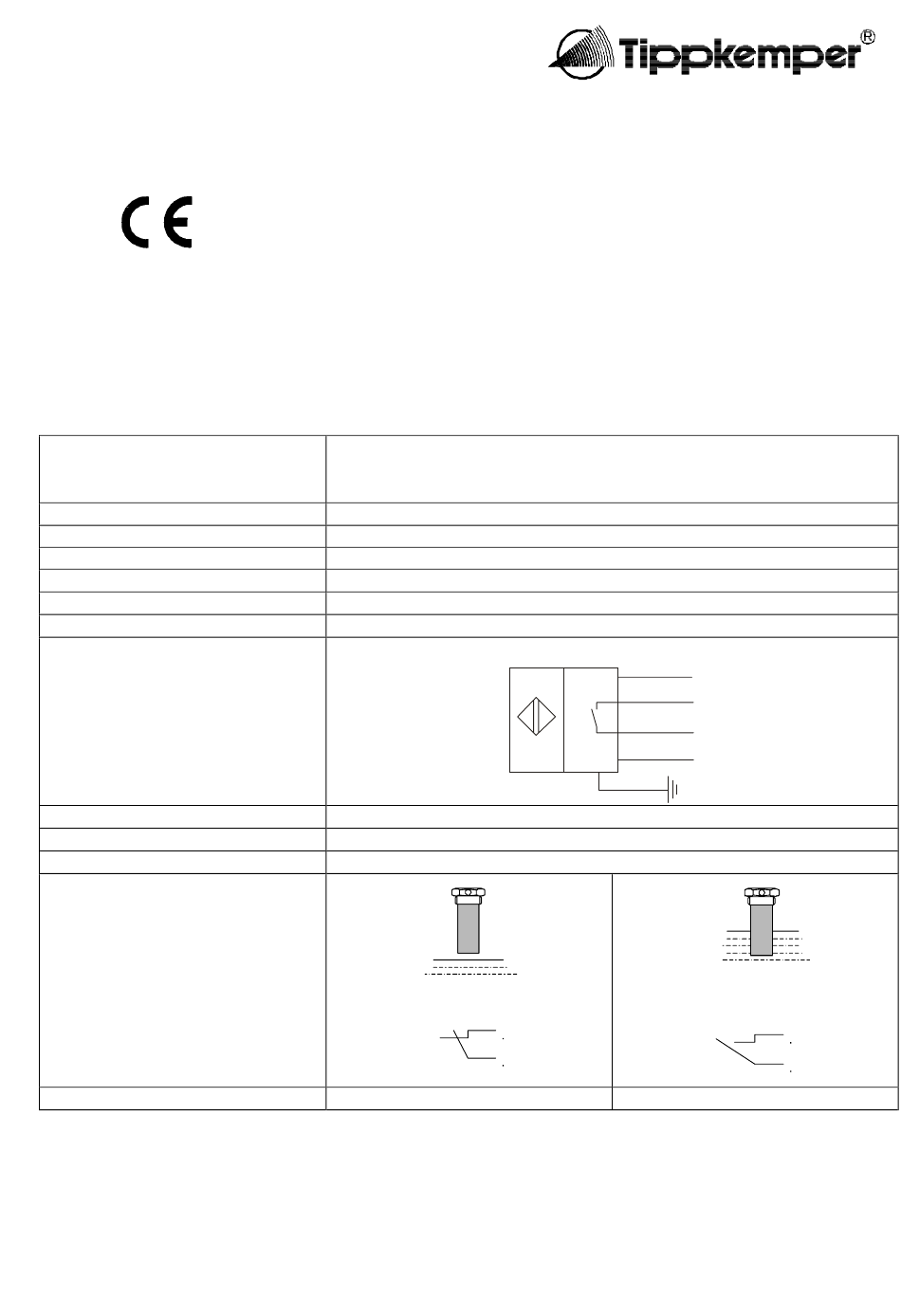

Tippkemper CNS-506 Operating Manual

Technical data
Nominal voltage
Nominal current
Switching frequency
Output voltage
Output current
Connecting cables
Pin arrangement
BN - brown
GN - green
YE - yellow
WH - white
screen and housing - ground
Housing material
Permissable ambient temperature
Type of protection
Output
LED-display
Capacitance Level Sensor
CNS-506
Level control for:
•
waxes
•
granulates
•
paints
•
hot-melt adhesives
•
chemicals
Type CNS-506
15-30V/DC
30 mA
≤ 0.5 Hz
max. 100V AC/DC
max. 0.5A
4 X 0,25 mm² + screen / L = 2 m
Aluminium
+10°C to +50°C
IP 65 / EN 40050
red LED on
BN
GN
YE
WH
SCREEN
C
NO
green LED on
L+
L-
C
NO
